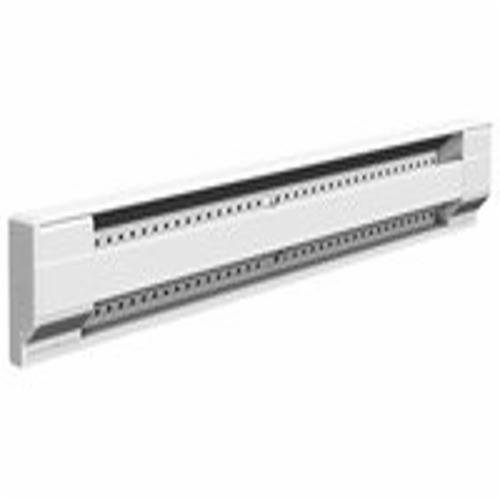

RBH0750BL - 750W Baseboard Heater
Description
Specifications
For Light Commercial and Residential Applications - Bedrooms, Living Areas
OUELLET
USA
US
HEATER BASEBOARD ELEC 208/240VAC 750W FL
More compact than any other heater
Featuring high quality construction, aesthetic design, fast and easy installation and reliable performance
Standard 4H pencil hardness epoxy/polyester powder coat paint, may be repainted with any interior paint
Robust 22 gauge steel tight fit body, sturdy 20 gauge front panel with design embossed lines
Welded 20 GA junction box to back wrap, easy rear access wiring panel
Rounded upper corners and junction box sides
Linear high-limit temperature control with automatic reset
High altitude (HA) version upto 8200 ft
Floating stainless steel heating element on high-temperature nylon bushings
Aluminum diamond shape element fins position for maximized heat transfer
Element locked in place by screw on a stainless steel support
Compartment for low voltage connections (located directly under the junction box) facilitates the installation of low voltage relay in electric baseboard
No disassembly installation with single-screw built-in rear entry wire holder
Installation directly on the floor with connection box at both ends of the heater
Two rows of oblong mounting holes with center mark for ease of installation
Raceway and side knock-outs for baseboard interconnections
Single Phase
OUELLET
1
Own Brand
BASEBOARD HEATERS
Color
White
Dimensions
37-3/4 in L x 5-13/16 in W x 2-9/16 in D
Finish
Standard Epoxy/Polyester Powder Painted
Material
Steel
Mounting Type
Floor
Power Rating
W
750
Series
RBH
Type
High Altitude
Voltage Rating
V AC
208/240
