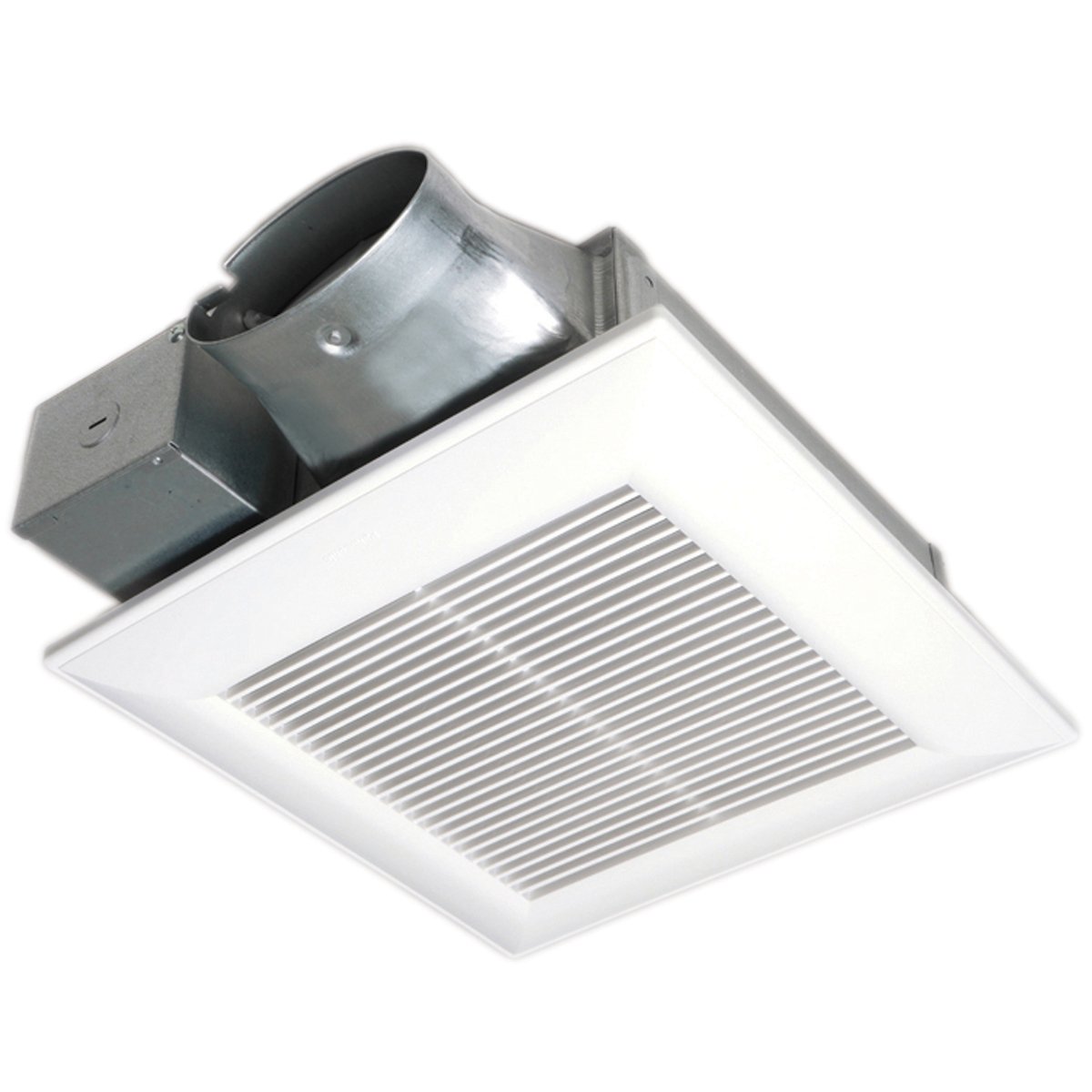

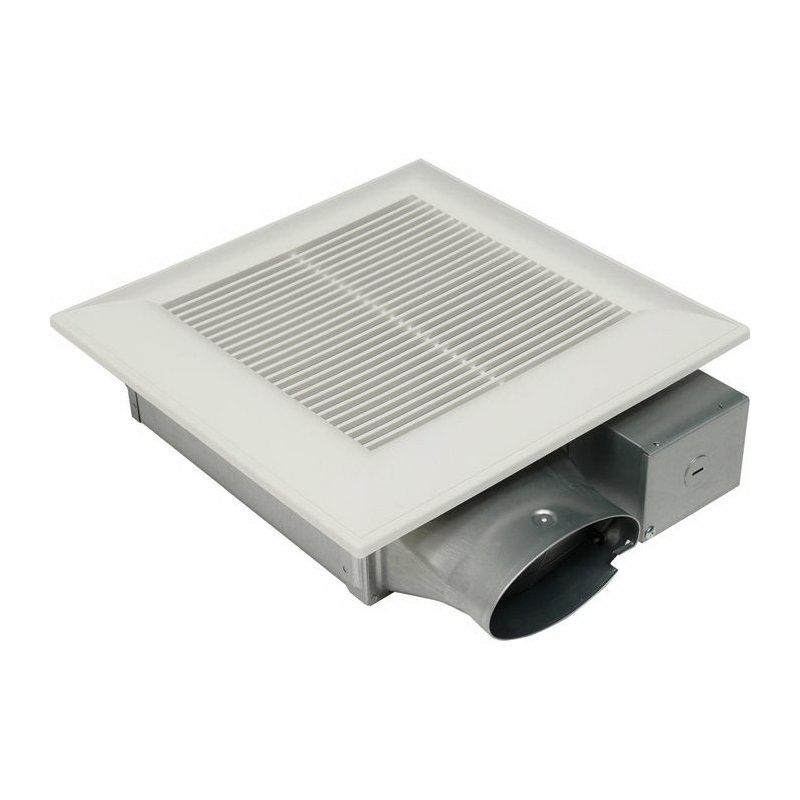

FV-0510VS1 - WhisperValue DC Ventilation Fan with Pick-A-Flow Speed Selector, Low Profile, Extremely Quiet, Long Lasting, Easy to Install, Code Compliant, Energy Star Certified, White
Description
Specifications
8.82lb
6.97mm
14mm
16.5mm
13906374
For single family and manufactured homes
PANASONIC
Ferguson - PANFV0510VS1
USA
MX
Instruction/Installation Manual
Service Manual
SDS
Catalog
Specification Sheet
00885170306295
13906374
FAN VENTILATION 50/80/100CFM 4IN 120VAC
DC motor - the best performing, most energy efficient motor
Pick-A-Flow™ speed technology - one fan, you choose the cfm
3-3/8 in D housing is the slimmest design
Long life means reduced costs
Installation flexibility with a simpler bracket
Oval duct
AC Motor
Single family, manufactured housing, multi-family hospitality, assisted living, student housing renovation, remodeling construction
12.8 cfm/W at 50 cfm, 11.4 cfm/W at 80 cfm, 9.2 cfm/W at 100 cfm energy efficiency
26 ga galvanized steel
0.09 A at 50 cfm/0.13 A at 80 cfm/0.2 A at 100 cfm current
L-shaped mounting bracket
Round Duct adapter
FV-0510VS1 Single-Speed Ventilation Fan, 50/80/100 cfm, 4 in Dia Duct, 4.4 W, 7.2 W, 11.1 W, 120 V AC, 0.09/0.13/0.2 A, 0.6 sones, Import ; Panasonic ; FV0510VS1 ; 885170306295 ; Bathroom Exhaust Fans
PANASONIC
6.9700
IN
16.5000
IN
1
8.8200
LB
14.0000
IN
FV-0510VS1 ; FV0510VS1 ; 13906374 ; 885170306295 ; 88517030629 ; 00885170306295
PANASONIC
EXHAUST FANS & COMPONENTS
Current/Amps
A
0.09/0.13/0.2
Humidity Sensing
No
Motion Sensing
No
Mounting Type
Ceiling
Sones
Sones
0.6
Type
Single-Speed
Voltage Rating
V AC
120
Wattage Consumption
4.4 W, 7.2 W, 11.1 W
Domestic/Import
Import
Duct Diameter
IN
4
Flow Rate
CFM
50/80/100
Frequency Rating
HZ
60
Grille Length
IN
13
Grille Material
Polypropylene
Grille Width
IN
13
Housing Material
Galvanized Steel
