FV-0511VHL1 - WhisperWarm® DC Fan│Heater│Light 50-80-110 CFM
Description
Specifications
17.42lb
12.72mm
19.21mm
22.64mm
PANASONIC
USA
MX
10 W Dimmable LED Chip Panel With <1 W LED Night Light and Pick-A-Flow™ Air Flow Selector
HTR/FAN/LT COMBO 50/80/110CFM 4 OR 6IN
Built-in 1600 W positive temperature co-efficient heater delivers instant warm up for safe and reliable operation
Combined with a unique circulation grille with built-in diffuser, it provides even more advanced heating performance
Pick-A-Flow ™ (50/80/110 cfm) combined with SmartFlow™ technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks

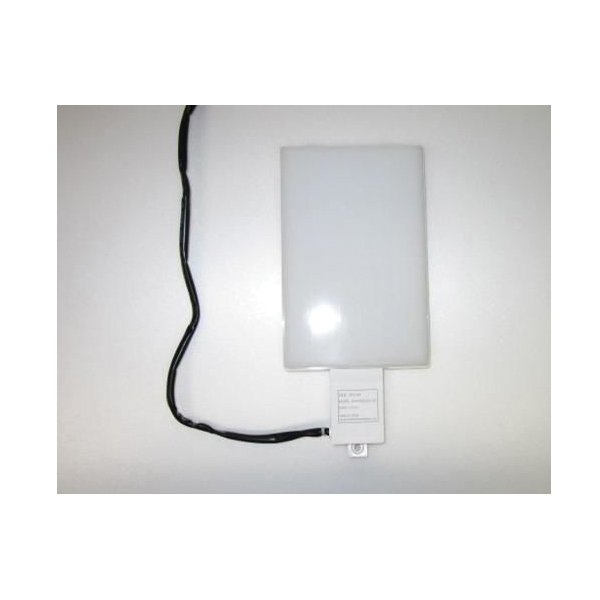

Light option includes a 10 W dimmable LED chip panel with 1W LED night light, JA-8 compliant for CA title 24 (night light must be wired separately)
Precision spot ventilation fan/heater incorporates a powerful ECM motor with SmartFlow™ Technology for optimum CFM output
Flex-Z Fast™ bracket provides flexible, fast and easy installation, even from below the ceiling
PANASONIC
12.7200
IN
22.6400
IN
1
17.4200
LB
19.2100
IN
https://youtu.be/I_yW9Z0w6vY
PANASONIC
EXHAUST FANS & COMPONENTS
Amperage Rating
A
0.5
Lamp Wattage
W
10
Lighting Type
Dimmable LED Chip
Mounting Type
Ceiling
Power Rating
W
4.7/7.4/12.4
Type
Precision Spot
Voltage Rating
V
120
Duct Diameter
IN
4 or 6
Flow Rate
CFM
50/80/110
Frequency Rating
HZ
60
Grille Material
Polypropylene
Grille Size
18-1/4 in L x 13-1/4 in W
Heater Wattage
W
1600
Housing Dimensions
16 in L x 10-1/4 in W x 7-1/2 in H
Housing Material
26 ga Zinc-Aluminum-Magnesium
