Description
Specifications
10.8lb
11.85mm
14.25mm
16.75mm
Residential, Light Commercial
PANASONIC
USA
MX
Motion Sensor Cap and White Square Grille

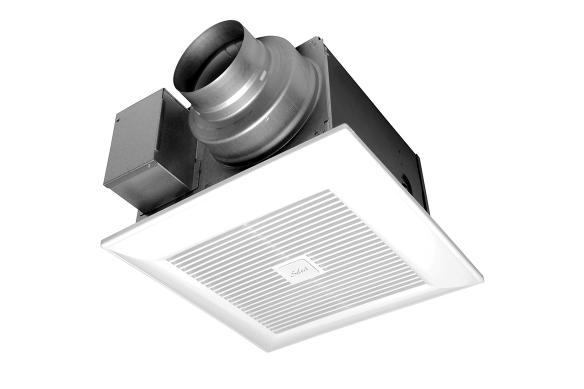

FAN VENTILATION 50/80/110CFM 4IN 9.9W PP
Customizable, all-in-one whole house precision ventilation solution ideal for use in the bathroom, laundry room, sun room, basement or garage
Customizable ceiling mount ventilation fan with multi-speed control (0, 30 to 100 cfm, in 10 cfm increments) and a built-in high/low adjustable time delay activated by a wall switch
Environmentally friendly 26 ga zinc-aluminum-magnesium (ZAM) housing design
Improved Flex-Z Fast™- single-hinge bracket with added flexibility, fast and easy
Elegant grille design complements the aesthetics of any room
Integrated 4 in dual duct adapter enhances installation options, fits 2 x 8 in construction
Built-in damper reduces back draft and helps with blower door testing
Built-in metal flange provides blocking for penetrations through drywall as an air barrier and assists with the decrease in leakage in the building envelope during blower door testing
Suitable for installation in ceilings insulated upto R60
Articulating and expandable installation bracket upto 24 in
Removable permanently lubricated plug-in motor
Motor equipped with thermal cut-off fuse
Enclosed brushless ECM smart motor technology rated for continuous operation
Attaches directly to housing with torsion springs
Includes a motion sensor cap for use as a cover when the motion sensor Plug-n-Play™ module has not been selected
3.1 W at 50 cfm/5.1 W at 80 cfm/9.9 W at 110 cfm power rating
0.04 A at 50 cfm/0.06 A at 80 cfm/0.10 A at 110 cfm ampere rating
<0.3 sones at 1/4 in SP
PANASONIC
11.8500
IN
16.7500
IN
1
10.8000
LB
14.2500
IN
PANASONIC
COMBINATION FANS, LIGHTS & HEATERS
Current/Amps
A
0.1
Housing Length
IN
10/1/2004
Housing Material
Zinc Aluminum Magnesium
Housing Width
IN
10/1/2004
Humidity Sensing
No
Motion Sensing
No
Mounting Type
Ceiling
Sones
Sones
0.3
Type
Multi-Speed
Voltage Rating
V AC
120
Wattage Consumption
W
9.9
Domestic/Import
Import
Duct Diameter
IN
4
Flow Rate
CFM
50/80/110
Frequency Rating
HZ
60
Grille Length
IN
13
Grille Material
Polypropylene
Grille Width
IN
13
Housing Height
IN
7/3/2008
