FV-0511VQCL1 - WhisperSense Ventilation Fan/Light with Motion and Humidity Sensors, Pick-A-Flow Speed Selector, Extremely Quiet, Long Lasting, Easy to Install, Code Compliant, Energy Star Certified, White
Description
Specifications
11.91lb
11.85mm
14.25mm
16.75mm
14160900
Bathroom, Laundry Room, Mud Room, Basement, Garage and Ventilation Applications
PANASONIC
USA
MX
Warranty Information
SDS
Instruction/Installation Manual
Specification Sheet
00885170326392
14160900
10 W Dimmable LED Chip Panel
FAN/LIGHT VENTILATION LED 120VAC 10W 90
Revolutionary ECM motor with SmartFlow™ technology for optimum cfm output

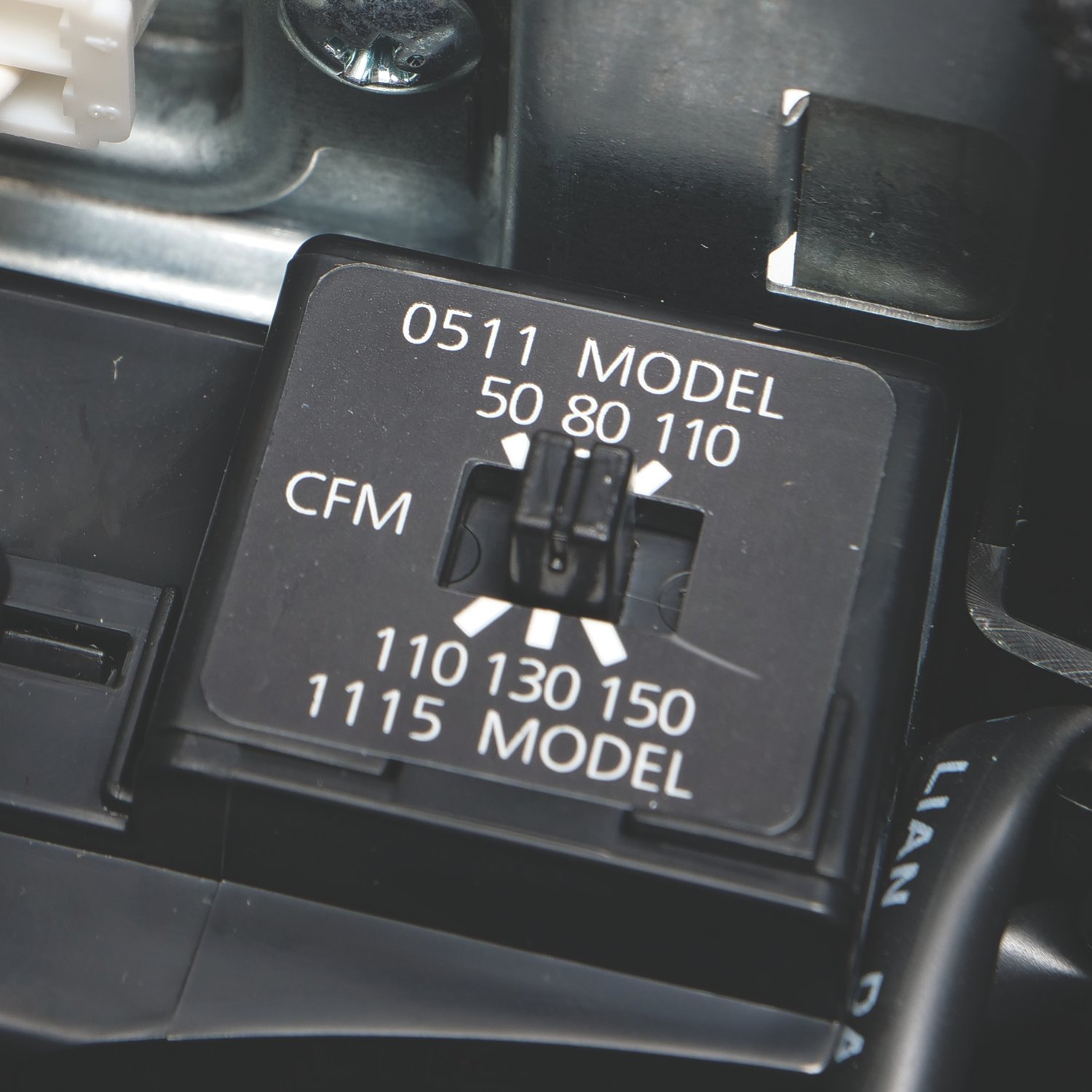

Pick-A-Flow™ speed selector (50-80-110 cfm) combined with SmartFlow™ technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks
Dual sensor technology (motion and moisture) provides built-in redundancy for the ultimate in automatic moisture and odor control
Flex-Z Fast™ bracket provides flexible, fast and trouble-free installation, even from below the ceiling
WhisperSense DC FV-0511VQCL1 Round Duct Square Grille Ventilation Fan/Light With ECM Motor, Mounting Bracket, Adjustable Delay Timer, 120 V AC, Zinc Aluminum Magnesium Housing ; Panasonic ; FV0511VQCL1 ; 885170326392 ; Fan/Light Combo
PANASONIC
11.8500
IN
16.7500
IN
1
11.9100
LB
14.2500
IN
FV-0511VQCL1 ; FV0511VQCL1 ; 14160900 ; 885170326392 ; 88517032639 ; 00885170326392
PANASONIC
EXHAUST FANS & COMPONENTS
Air Flow Rate
CFM
50/80/110
Mounting Type
Ceiling
Type
Round Duct Square Grille
Voltage Rating
V AC
120
Amperage Rating
A
0.07/0.11/0.12/0.18/0.19/0.26
Average Life
HR
50000
Color Rendering Index (CRI)
90
Color Temperature
K
3000
Dimensions
10-1/4 in L x 10-1/4 in W x 7-3/8 in H
Housing Material
Zinc Aluminum Magnesium
Lamp Wattage
W
10
Light Color
Warm White
