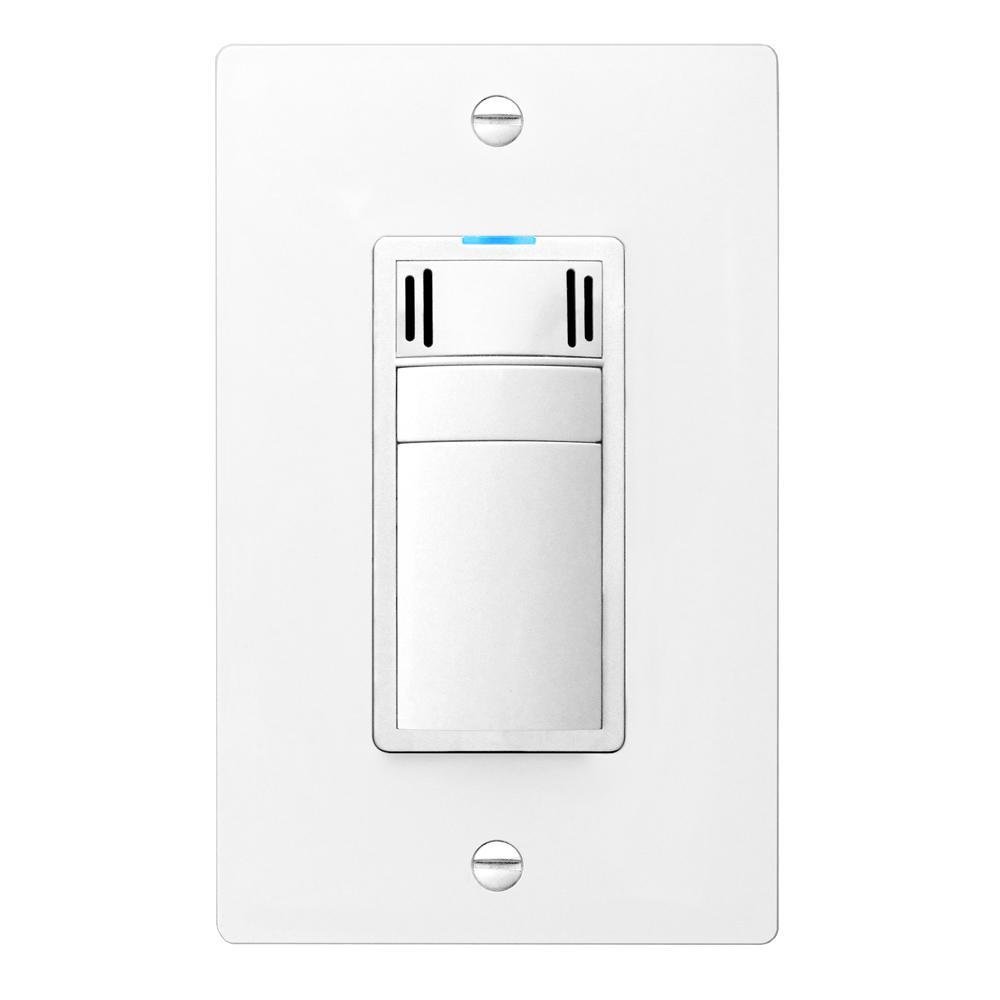

FV-WCCS1-W - WhisperControl On/Off Switch for Ventilation Fan Control with Condensation Sensor Plus, Switch for Panasonic Ventilation Fans, Energy Star Certified, Code Compliant, White Colored Switch with Wall Plate
Description
Specifications
0.42lb
5.5mm
6mm
10.5mm
For use in 1-gang box
PANASONIC
USA
CN
Manual ON/OFF Fan Control and Matching Wallplate
SENSOR CONDENSATION ON/OFF 24VAC 120VAC
Intelligent and advanced sensor technology monitors humidity and temperature to anticipate dew point, automatically operating the fan to control moisture
Automatic seasonal adaptability with optional moisture sensitivity selector that allows fine tuning for dry or moist environments
Adjustable minutes per hour (mph) fan timer ensures consistent and controlled ventilation throughout the day for compliance with ASHRAE 62.2
20 min delay OFF timer initiates once fan is manually turned on
Commercial grade - 8 A max load
Engineered to efficiently control current LED lighting and DC motor loads
Compatible with all single-speed fan and fan/light models
Stylish decorator design with wall plate included
Blue LED light indicates when the fan is on
6 in lead termination
14 AWG or 12 AWG copper wire connection
PANASONIC
5.5000
IN
10.5000
IN
1
0.4200
LB
6.0000
IN
PANASONIC
LIGHTING SENSORS
Contact Rating
V AC
24
Domestic/Import
Import
Finish
White
Switch Action
On/Off
Type
Grounding
Voltage Rating
V AC
120
