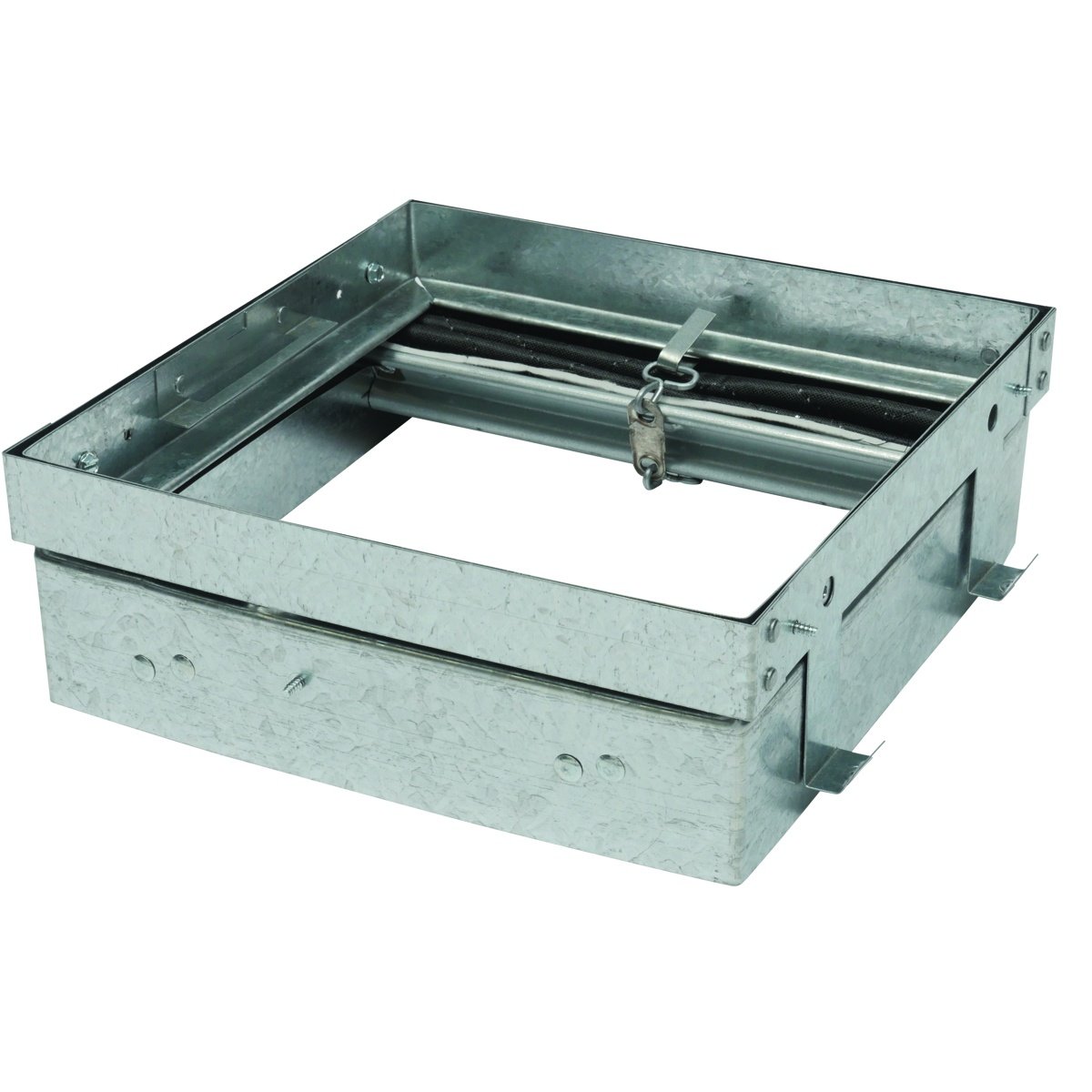

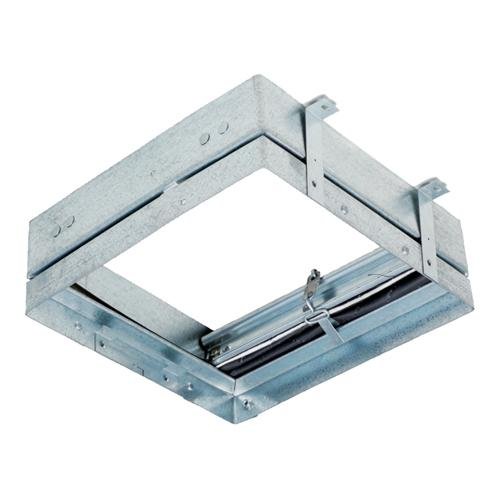

PC-RD05C5 - FlexDamper Ceiling Radiation Damper, Combustible and Non-Combustible UL Assemblies, Easy Access to Fan/Motor/Damper, Compatible with Most Panasonic Ventilation Fans
Description
Specifications
34.5lb
12mm
15mm
28mm
PANASONIC
USA
US
Radiation Damper, Galvanized Steel Frame, Mounting Screws for Frame to Fan Housing, Clip and Grommets to Secure Wire/Pigtail, Plaster Guard, Installation Guide and Warranty Information
DAMPER RADN FLEX ALL-IN-ONE STL GALV
Folded ceramic curtain style damper to meet both combustible and non-combustible UL assemblies
Allows for two stage construction, fan housing and damper sleeve during framing, fan/motor/damper installation after finishes
Easy access to fan/motor/damper for maintenance
Compatible with most Panasonic 10-1/4 in 50 to 150 cfm fans, fan/lights and fans with motion sensor
Galvanized steel frame with 165 deg F fusible link
High temperature, non-asbestos, reinforced fiber thermal fabric damper
PANASONIC
12.0000
IN
28.0000
IN
1
34.5000
LB
15.0000
IN
PANASONIC
EXHAUST FANS & COMPONENTS
Dimensions
11-7/8 in W x 11-7/8 in D x 3-1/4 in H
Finish
Galvanized
Material
Steel
Mounting Type
Ceiling
Shape
Square
Type
All-In-One
