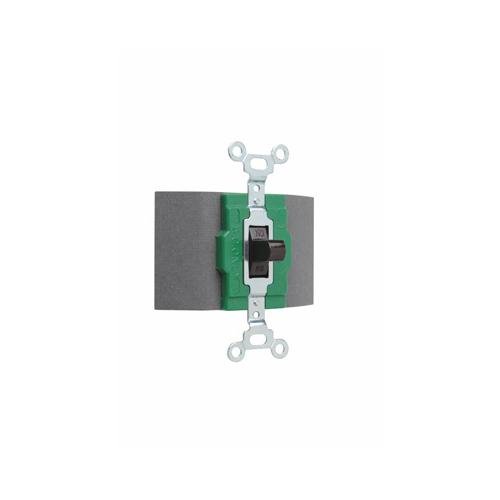

30A Double Pole, Double Throw Switch, Brown
Description
Specifications
0.31
4.5
2.56
2.56
Industrial Applications
Pass & Seymour
USA
MX
SWITCH CONT MNL 120/277VAC 30A 2W 2 TGL
Oversize silver alloy contacts for long life and better heat dissipation
Side wired terminals accept 14 - 10 AWG copper or copper-clad conductors
Fiber terminal insulation barriers standard
Can be mounted in standard device boxes or in NEMA 1 sheet steel enclosures
Bodies, covers, and toggles molded of durable nylon
Single Pole-Double Throw and Double Pole-Double Throw
Locking Switches supplied with one 1498-NT key
Normally Open
For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, visit www.legrand.us/electrical-wiring-devices/wall-plates
Legrand
4.5000
IN
2.5600
IN
1
0.3100
LB
2.5600
IN
Pass & Seymour
General Purpose Switches
Action
Maintained
Mounting
Wall
Number Of Poles
2
Power Rating
W
2
Type
2-Circuit
Voltage Rating
V AC
120/277
Actuator
Toggle
Amperage Rating
A
30
Color
Brown
Contact Configuration
1NO DPDT
Dimensions
3.3 in H x 1.5 in W x 1.469 in D
Enclosure
NEMA 1
Insulation
Bare
Material
Nylon
