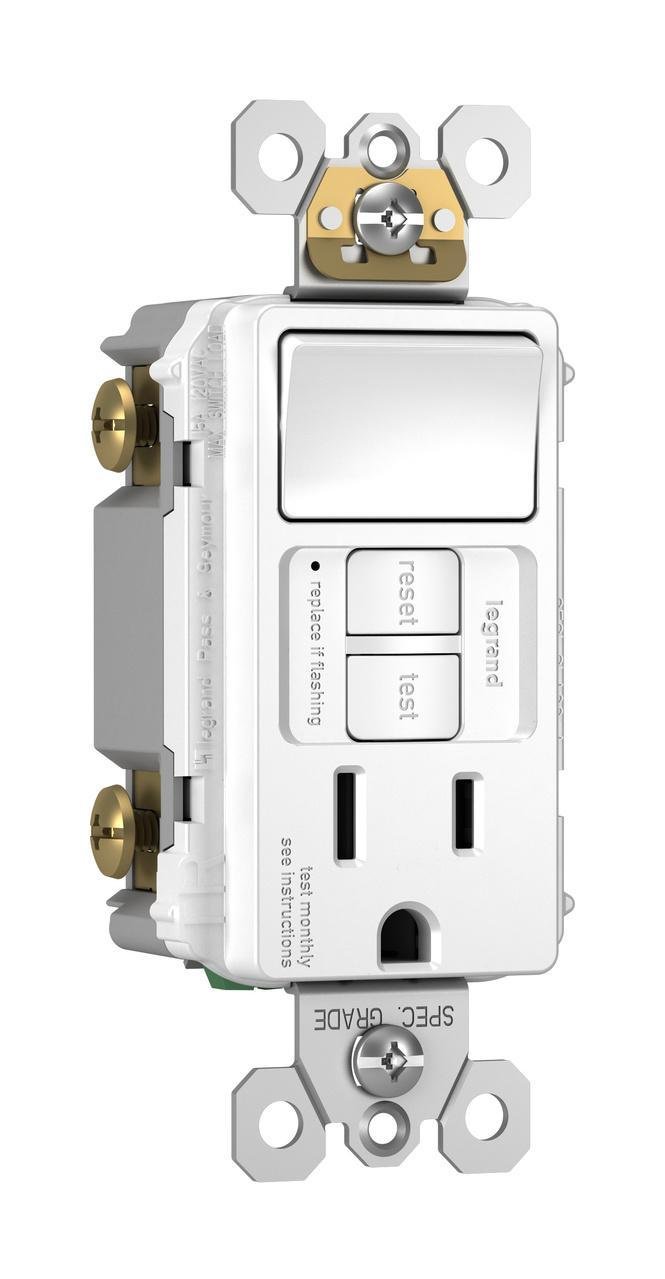

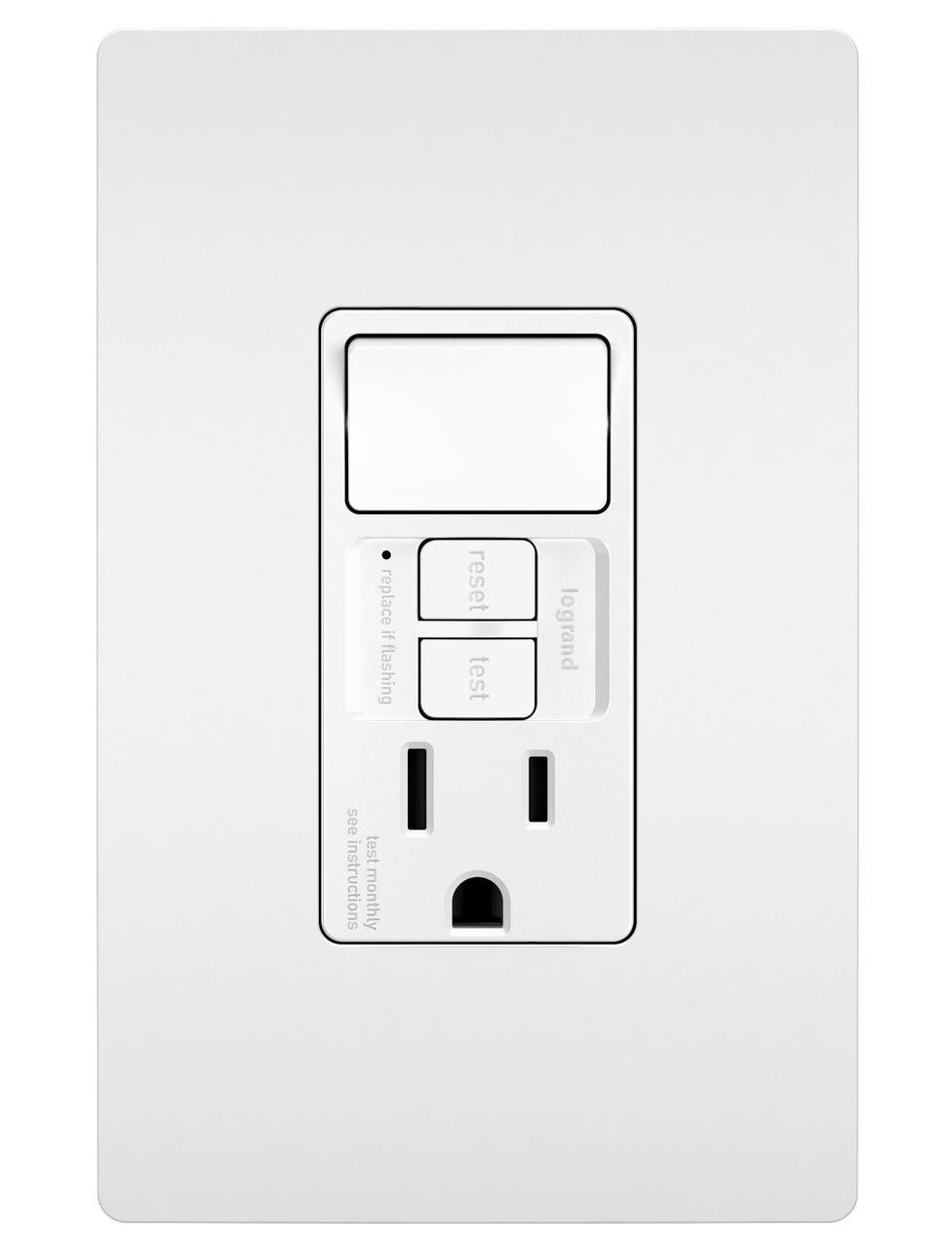

1597SWTTRWCCD4 - radiant® Combination Single Pole Switch and Tamper-Reistant 15A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, White
Description
Specifications
0.27lb
5.38mm
1.75mm
2mm
Pass & Seymour
USA
CN
GFCI/SWITCH COMBINATION 125VAC 15A 1 WHT
Protects against shock caused by ground-fault occurrences
Unlike breaker alternatives, GFCI outlets make it easier to fix trips with a convenient reset button on the outlet
Conducts an industry-leading automatic self-test every 3 seconds
If the device ever fails, the indicator light flashes to signal it should be replaced
Equipped with proven SafeLock protection feature - if critical components are damaged and protection is lost, power to the receptacle is disconnected
Protects children with a patented shutter system that prevents improper insertion of foreign objects, complete with invisi-shutters for an invisible effect
Installs easily in as little as 10 min
Features durable, high-impact resistant thermoplastic construction
More color options available to fit any style
Complete the look with a sleek, screwless radiant Wall Plate, and coordinate with other designer switches and outlets available from the radiant Collection
Legrand
5.3800
IN
2.0000
IN
1
0.2700
LB
1.7500
IN
https://www.youtube.com/watch?v=CjpgAk7vct0
Pass & Seymour
Combination Devices
Amperage Rating
A
15
Terminal Type
Screw
Type
Self-Test Tamper Resistant
Voltage Rating
V AC
125
Color
White
Dimensions
4.2 in H x 1.73 in W x 1.03 in D
Frequency Rating
HZ
60
Grade
Specification
Material
Nylon
NEMA Rating
NEMA 5-15R
Number Of Poles
1
Temperature Rating
deg C
-35 To 66
