Pass & Seymour

1597-TRAW - radiant® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with Audible Alarm and SafeLock® Protection, White

Category Receptacles & Surge Protectors

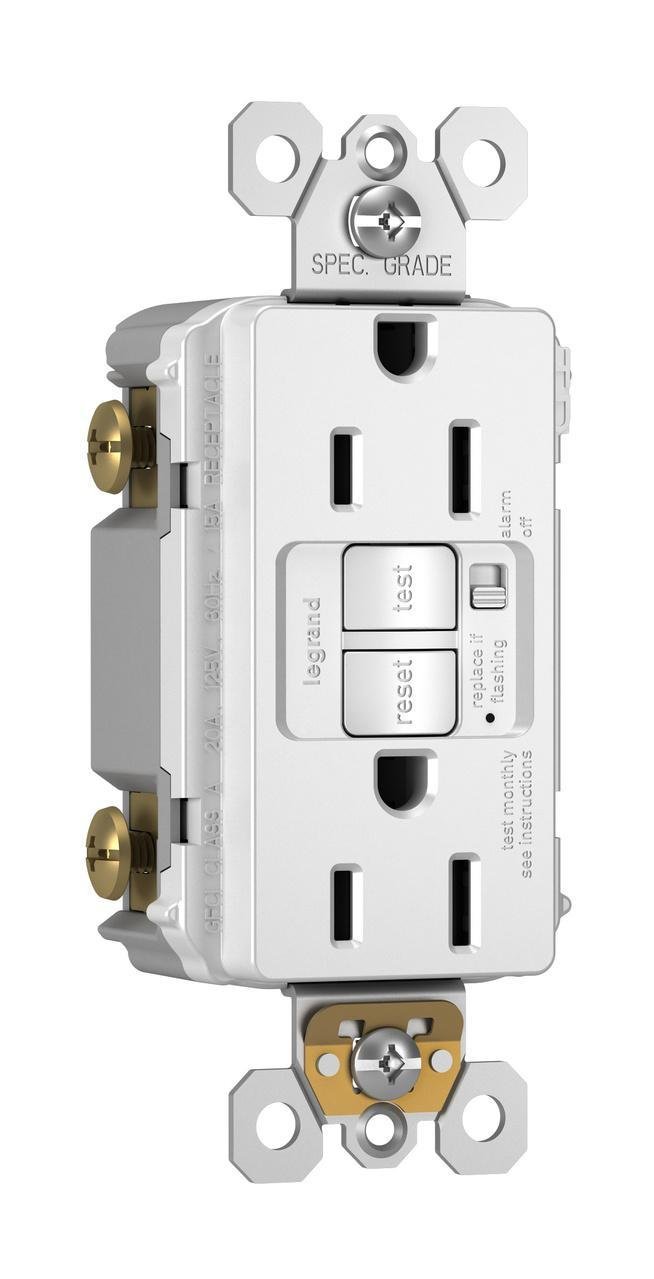

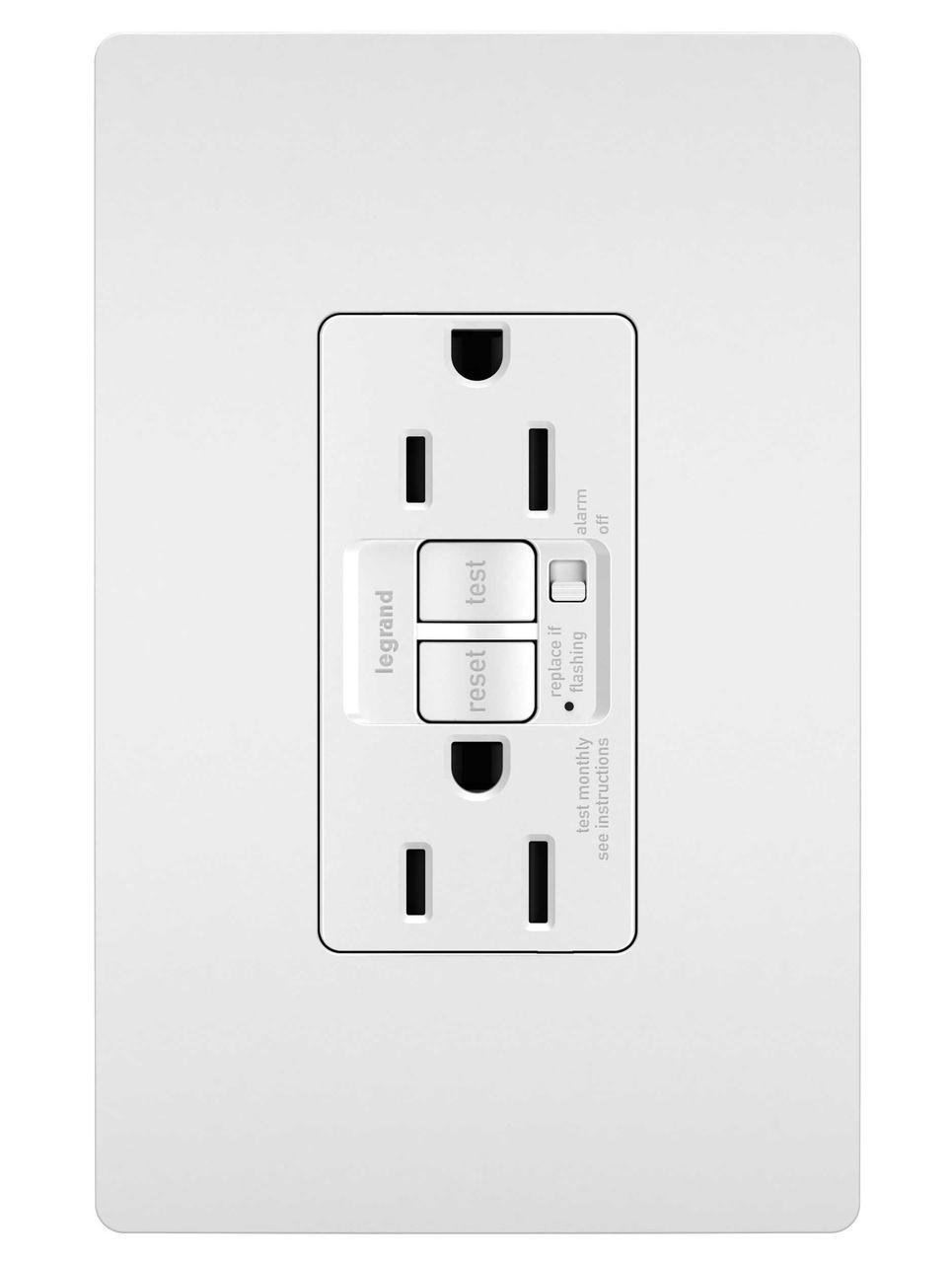

Picture of 1597-TRAW - radiant® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with Audible Alarm and SafeLock® Protection, White Picture of 1597-TRAW - radiant® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with Audible Alarm and SafeLock® Protection, White
Picture of 1597-TRAW - radiant® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with Audible Alarm and SafeLock® Protection, White Picture of 1597-TRAW - radiant® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with Audible Alarm and SafeLock® Protection, White
Picture of 1597-TRAW - radiant® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with Audible Alarm and SafeLock® Protection, White Picture of 1597-TRAW - radiant® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with Audible Alarm and SafeLock® Protection, White
Picture of 1597-TRAW - radiant® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with Audible Alarm and SafeLock® Protection, White Picture of 1597-TRAW - radiant® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with Audible Alarm and SafeLock® Protection, White
Pass & Seymour

1597-TRAW - radiant® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with Audible Alarm and SafeLock® Protection, White

Item Code: 926071
Category Receptacles & Surge Protectors
Manufacturer Legrand
Manufacturer Ref 1597-TRAW

Catalog
Instruction Installation Manual
Owners User Manual
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

GFCI outlets from the radiant® Collection self-test automatically every three seconds to ensure reliable protection from shock due to ground fault occurrences. Meeting National Electrical Code for ground fault protection in the home, GFCI outlets make it easier to fix trips right where they happen – no more confusion or running to the breaker box. This model includes an optional audible alarm, so trips never go unnoticed, and is great for appliances where loss of power could cause damage, such as freezers and sump pumps. Maximize safety, in style, with GFCI protection featuring the sleek, clean lines of radiant.GFCI protection is required by code in bathrooms, kitchens, garages, basements, outdoor areas, and for any other outlets found within six feet of a sink or water source. GFCI outlets should always be used when replacing existing GFCI outlets during renovation.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Specifications

Weight

0.25lb

Height

4.69mm

Width

1.73mm

Length

2.95mm

Amperage Rating

15 A

Brand

Pass & Seymour

Category

RECEPTACLES & SURGE PROTECTORS

Color

White

Dimensions

1.03 in L x 1.73 in W x 4.2 in H

Frequency Rating

60 Hz

Grade

Residential/Specification

Horsepower

1/1/2002 hp

Material

Nylon/Thermoplastic

NEMA Rating

NEMA 5-15R

Number Of Poles

2

Number of Wires

3

Series

1597TR

Temperature Rating

-35 to 66 deg C

Terminal Type

Back/Side Wire/Screw

Type

Duplex Self-Test Tamper-Resistant

Voltage Rating

125 V AC
