Pass & Seymour

1597-TRLA - radiant® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Light Almond

Category Receptacles & Surge Protectors

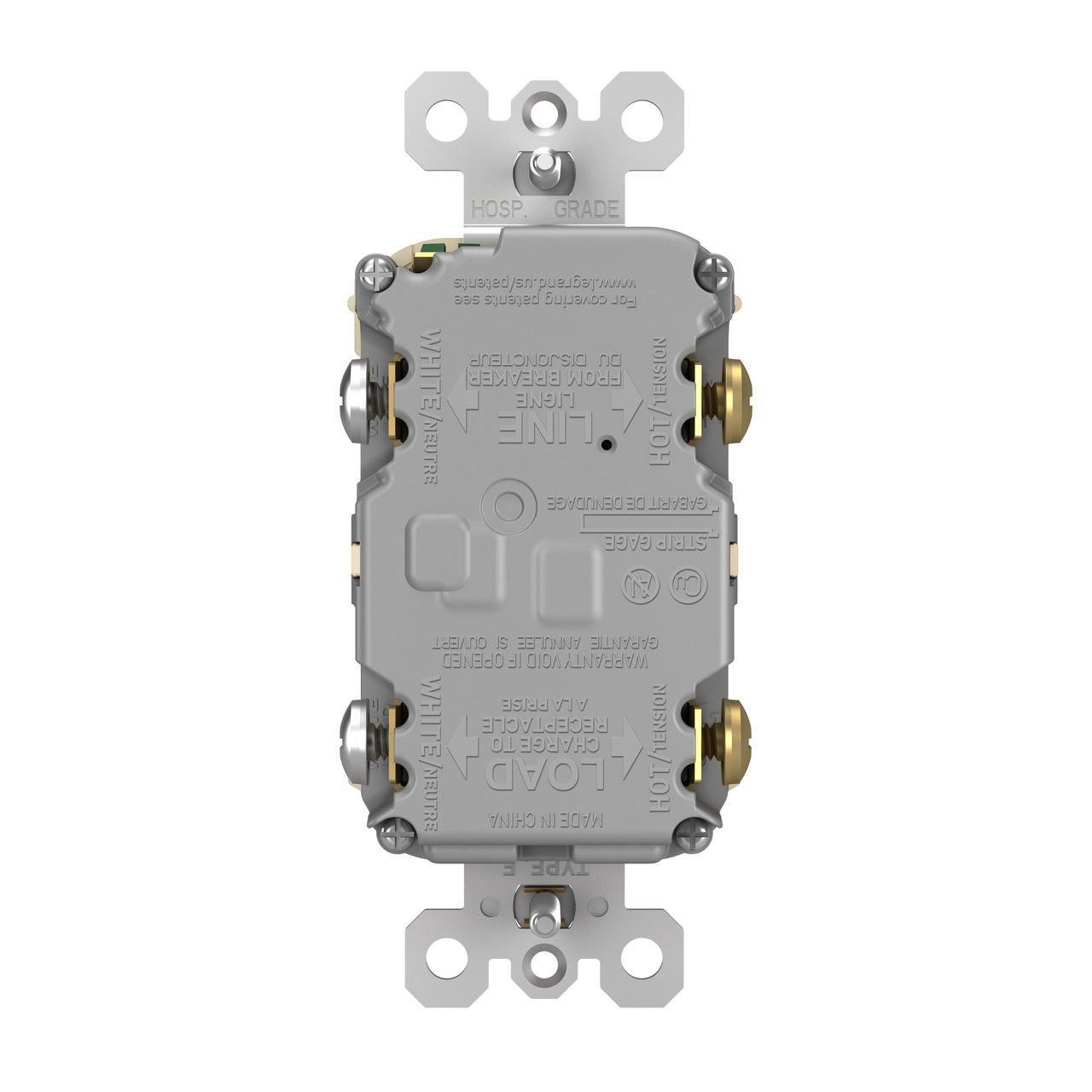

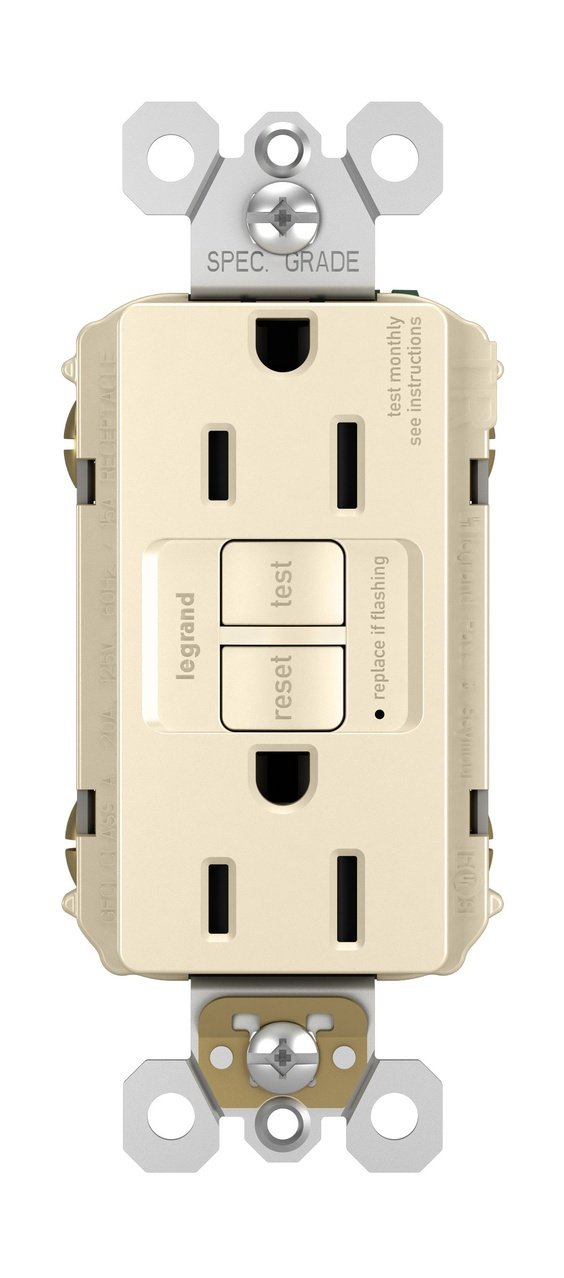

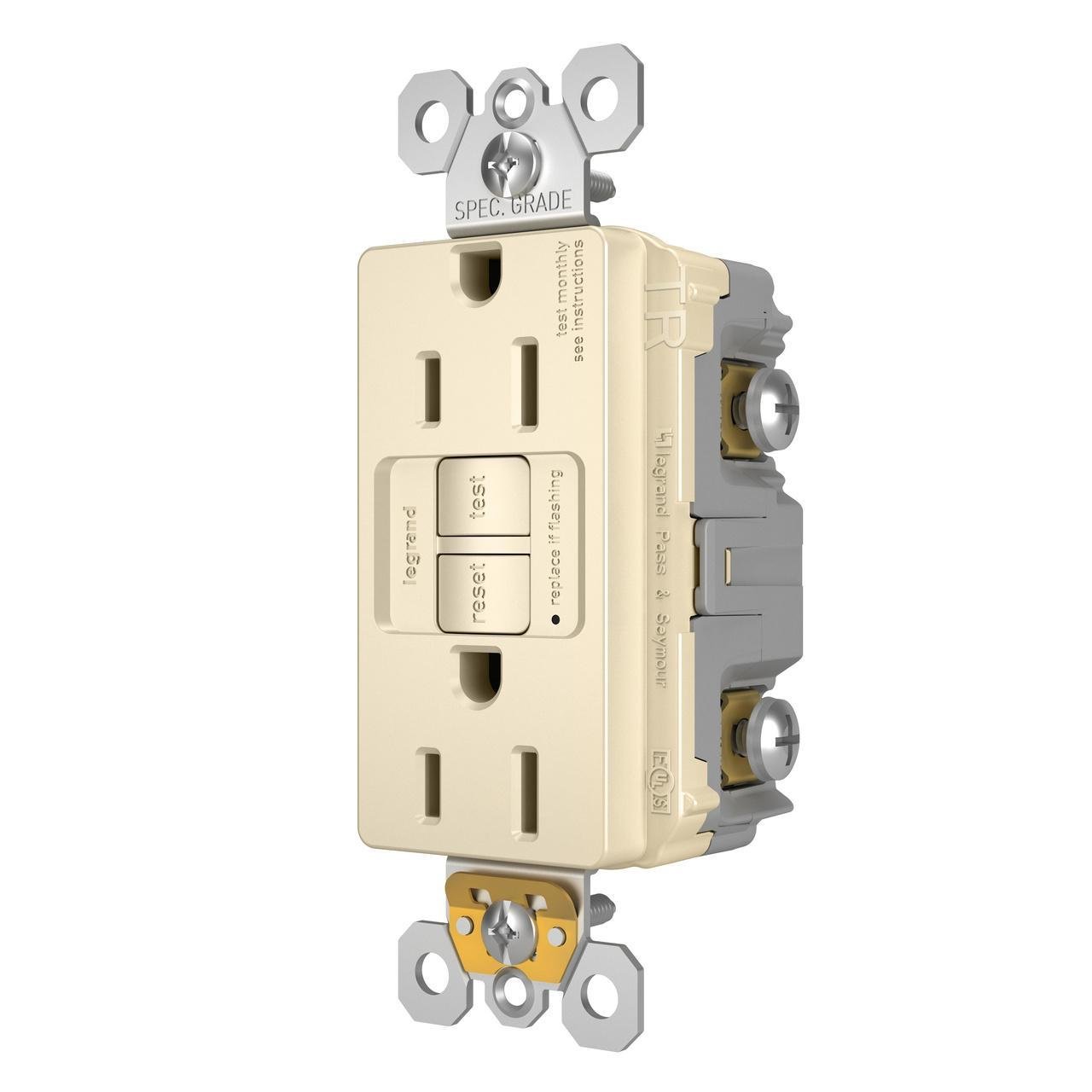

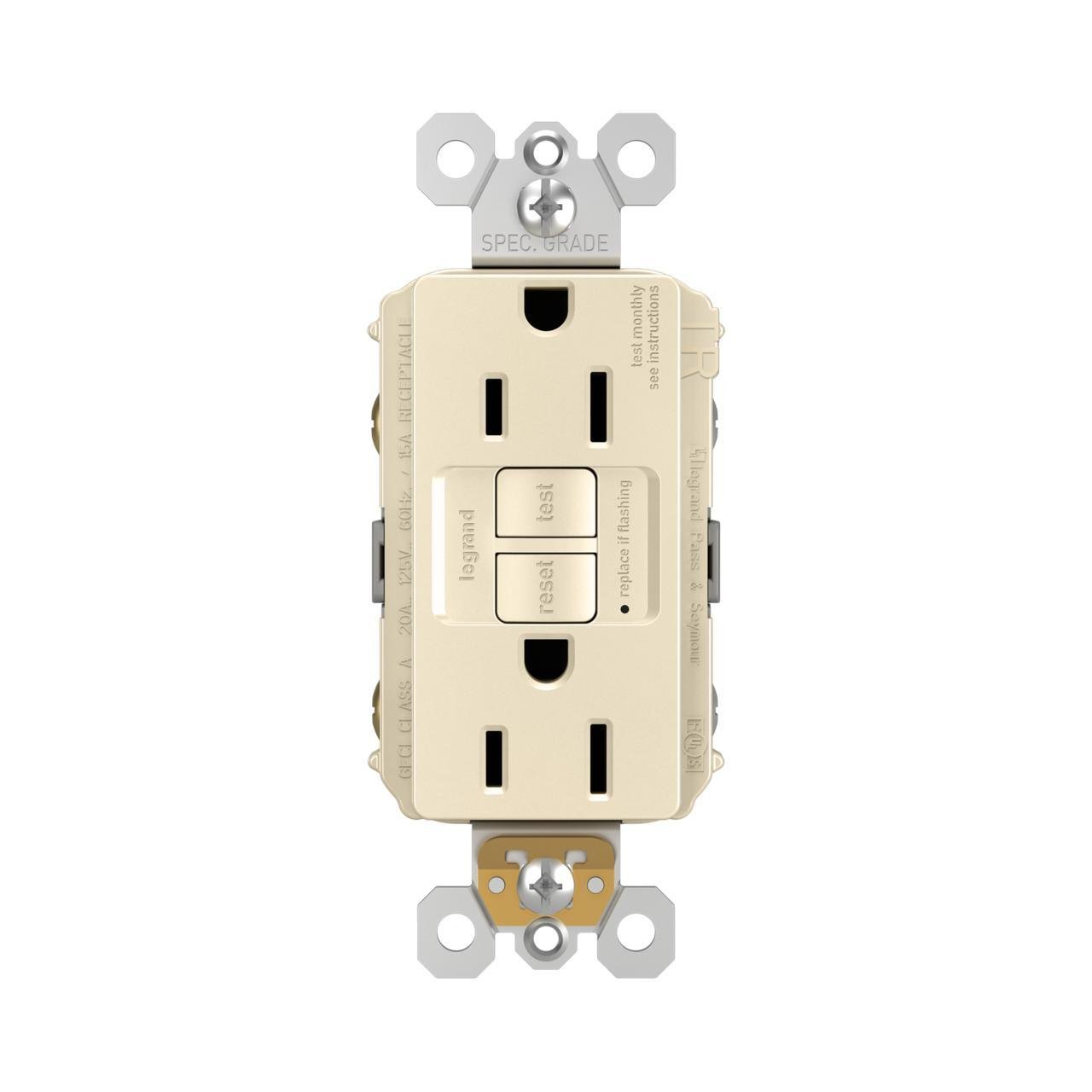

Picture of 1597-TRLA - radiant® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Light Almond Picture of 1597-TRLA - radiant® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Light Almond
Picture of 1597-TRLA - radiant® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Light Almond Picture of 1597-TRLA - radiant® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Light Almond
Picture of 1597-TRLA - radiant® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Light Almond Picture of 1597-TRLA - radiant® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Light Almond
Picture of 1597-TRLA - radiant® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Light Almond Picture of 1597-TRLA - radiant® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Light Almond
Picture of 1597-TRLA - radiant® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Light Almond Picture of 1597-TRLA - radiant® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Light Almond
Pass & Seymour

1597-TRLA - radiant® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Light Almond

Item Code: 926062
Category Receptacles & Surge Protectors
Manufacturer Legrand
Manufacturer Ref 1597-TRLA

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

GFCI receptacles from the radiant® Collection self-test automatically every three seconds to ensure reliable protection from shock due to ground fault occurrences. Meeting National Electrical Code requirements for ground fault protection, GFCI receptacles make it easier to recognize and fix trips right where they happen – no more confusion at the breaker box. Maximize safety, in style, with GFCI protection featuring the sleek, clean lines of radiant.GFCI protection is required by code in bathrooms, kitchens, garages, basements, outdoor areas, and for any other outlets found within six feet of a sink or water source. GFCI outlets should always be used when replacing existing GFCI outlets during renovation.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately. Spec-Grade devices are engineered to meet federal specifications for use in commercial installations.

Specifications

Weight

0.25lb

Height

4.69mm

Width

2.95mm

Length

1.73mm

AD Application

Industrial, Health Care, Education, Institutional, Retail, Office, Hospitality/Lodging and Multiple Dwelling, Commercial and Residential Applications

AD Brand (Description)

Pass & Seymour

AD Country

USA

AD Country Of Origin

CN

AD Invoice Description

RECEPTACLE GFCI 125VAC 15A 2 3 LT ALMOND

AD Item Features 01

Protects against shock caused by ground-fault occurrences

AD Item Features 02

Unlike breaker alternatives, GFCI receptacles make it easier to fix trips with a reset button right on the device

AD Item Features 03

Conducts an industry-leading automatic self-test every 3 seconds

AD Item Features 04

If the device ever fails, the indicator light flashes to signal it should be replaced

AD Item Features 05

Equipped with proven SafeLock protection feature - if critical components are damaged and protection is lost, power to the outlet is disconnected

AD Item Features 06

Extends GFCI protection to downstream outlets when used with feed-thru wiring configuration

AD Item Features 07

Note, Will cut power to face and downstream outlets if wired incorrectly

AD Item Features 08

Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with invisi-shutters for an invisible effect

AD Item Features 09

Replaces any standard receptacle with ease, in as little as 10 min

AD Item Features 10

Features durable, high-impact resistant thermoplastic construction

AD Item Features 11

More color options available to fit any style, including finishes to match current hardware and lighting trends

AD Item Features 12

Complete the look with a sleek, screwless radiant Wall Plate, and coordinate with other designer switches and outlets available from the radiant Collection

AD Manufacturer (Description)

Legrand

AD Package Height

4.6900

AD Package Height UOM

IN

AD Package Length

1.7300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.2500

AD Package Weight UOM

LB

AD Package Width

2.9500

AD Package Width UOM

IN

Brand

Pass & Seymour

Category

RECEPTACLES & SURGE PROTECTORS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

15

Spec 10 Attribute

Series

Spec 10 Attribute Value

1597TR

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

-35 To 66

Spec 12 Attribute

Terminal Type

Spec 12 Attribute Value

Back/Side Wire/Screw

Spec 13 Attribute

Type

Spec 13 Attribute Value

Duplex Self-Test Tamper-Resistant

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

125

Spec 2 Attribute

Color

Spec 2 Attribute Value

Light Almond

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

1.03 in L x 1.73 in W x 4.2 in H

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

60

Spec 5 Attribute

Grade

Spec 5 Attribute Value

Residential/Specification

Spec 6 Attribute

Material

Spec 6 Attribute Value

Nylon/Thermoplastic

Spec 7 Attribute

NEMA Rating

Spec 7 Attribute Value

NEMA 5-15R

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

2

Spec 9 Attribute

Number Of Wires

Spec 9 Attribute Value

3
