Pass & Seymour

1597-TRWRI - radiant® Tamper-Resistant Weather-Resistant 15A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Ivory

Category Receptacles & Surge Protectors

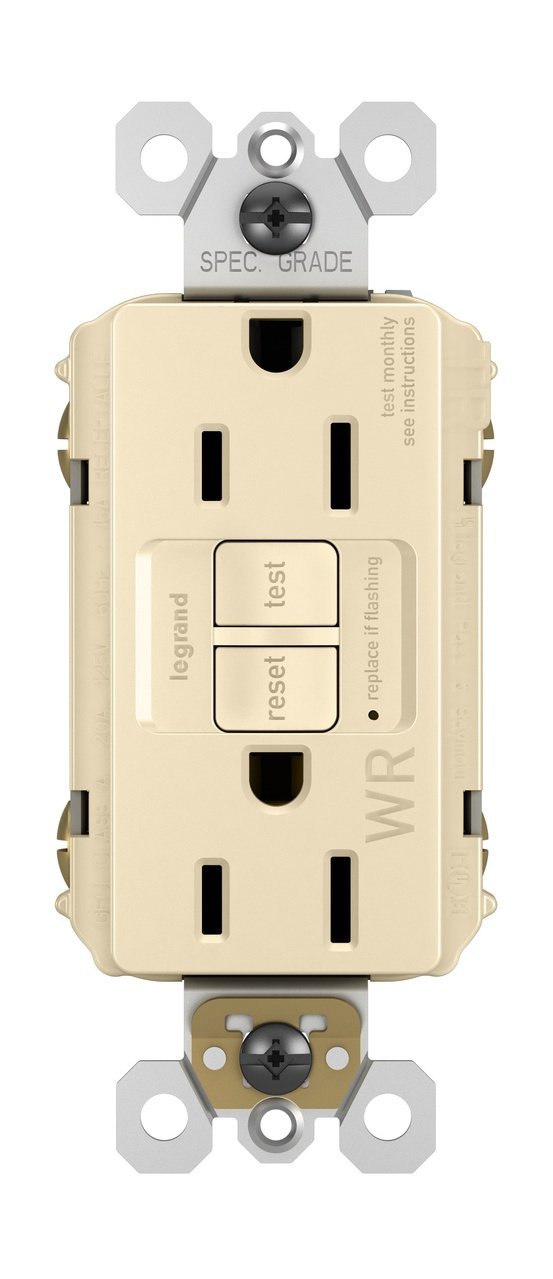

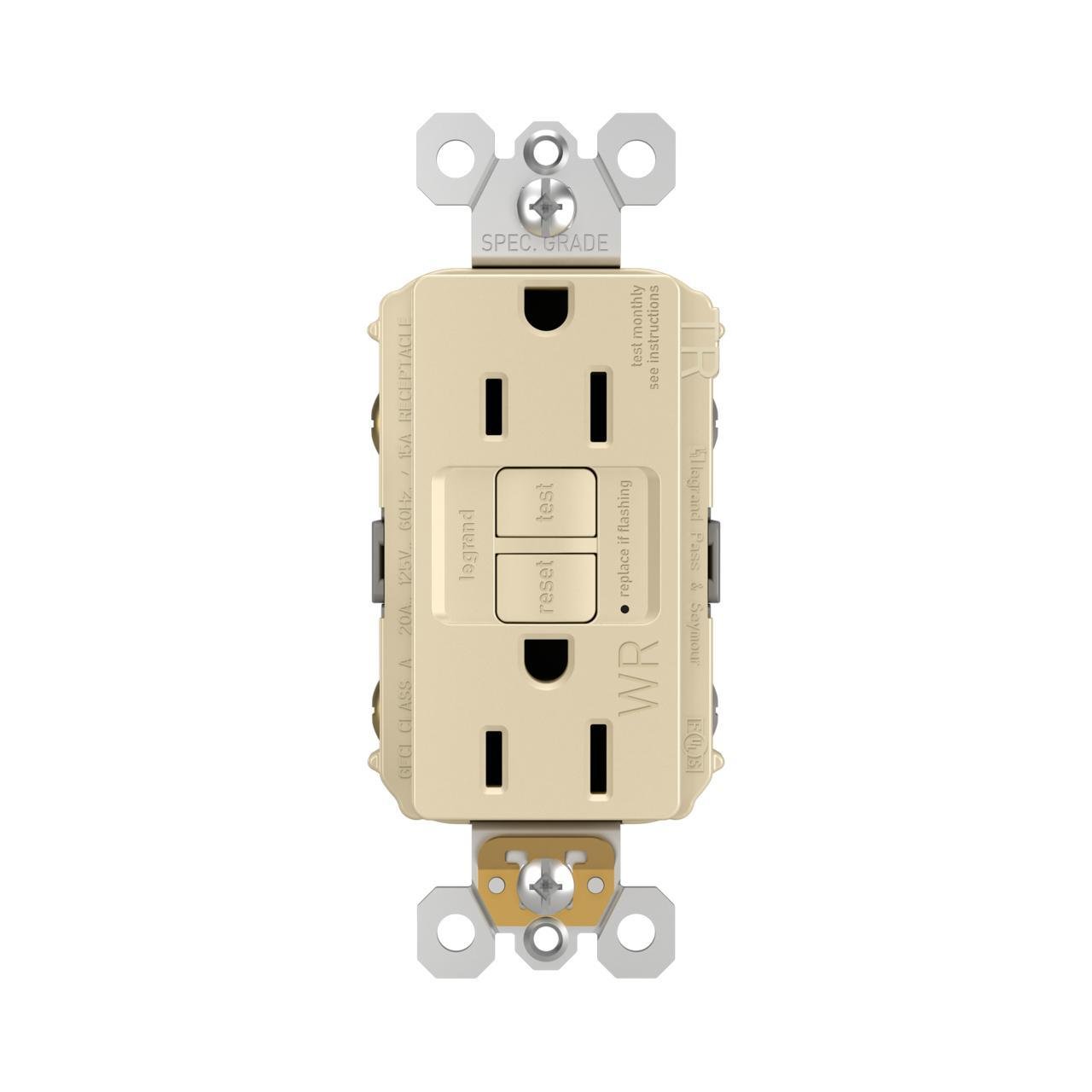

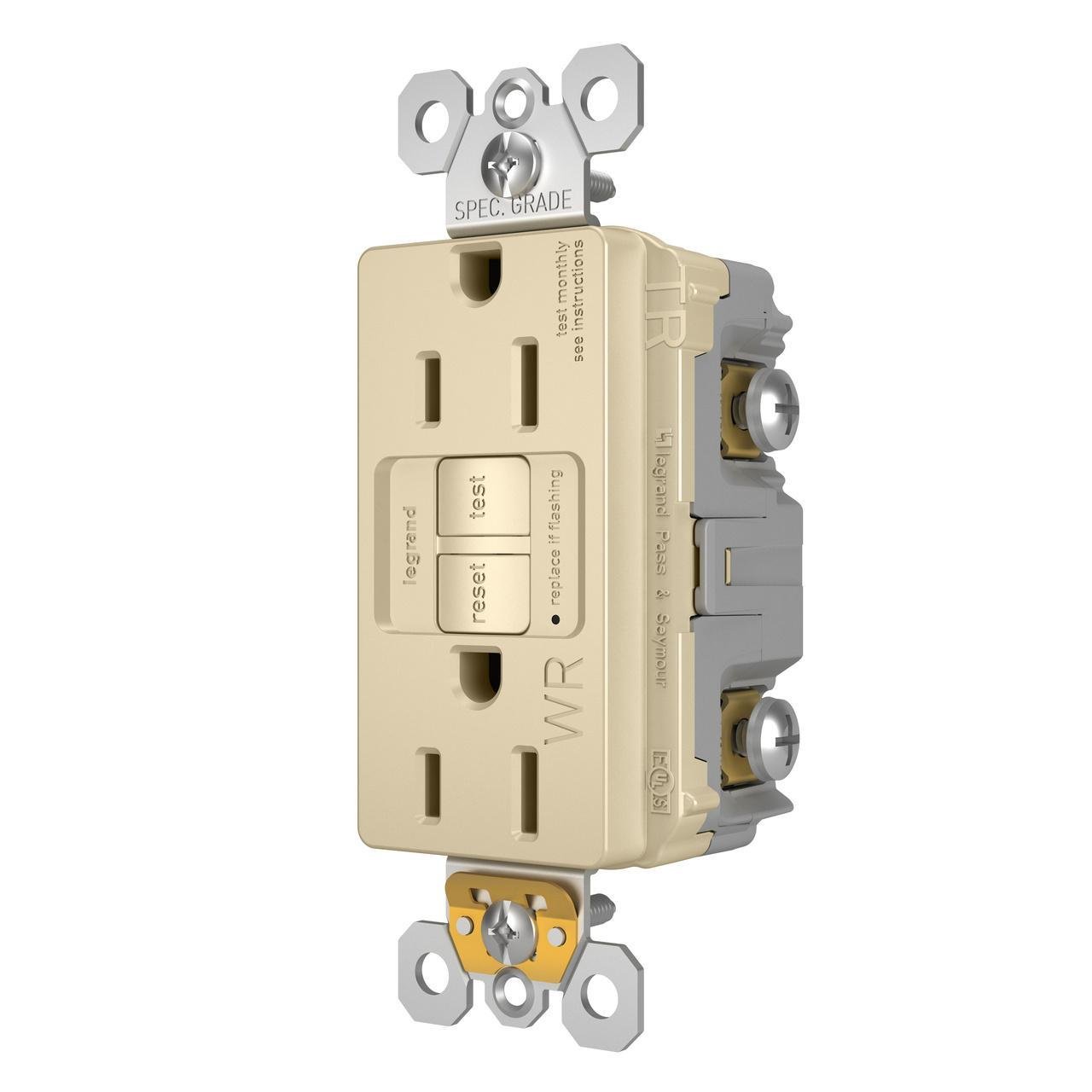

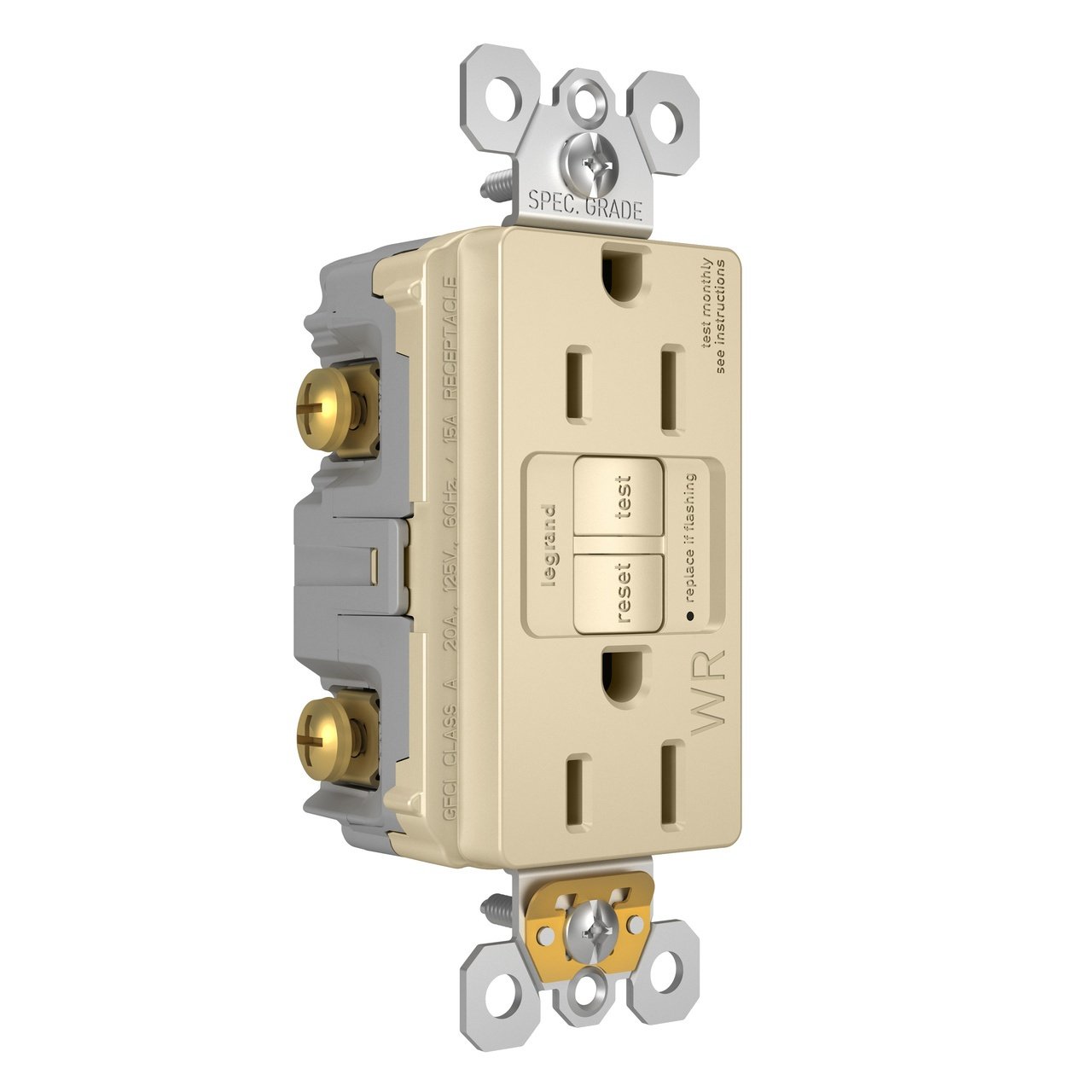

Picture of 1597-TRWRI - radiant® Tamper-Resistant Weather-Resistant 15A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Ivory
Pass & Seymour

1597-TRWRI - radiant® Tamper-Resistant Weather-Resistant 15A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Ivory

Item Code: 923315
Category Receptacles & Surge Protectors
Manufacturer Legrand
Manufacturer Ref 1597-TRWRI

Catalog
Owners User Manual
Specification Sheet
Instruction Installation Manual
Call for Availability
Add to Favorites
Compare

Description

GFCI receptacles from the radiant® Collection self-test automatically every three seconds to ensure reliable protection from shock due to ground fault occurrences. Meeting National Electrical Code requirements for ground fault protection, GFCI receptacles make it easier to recognize and fix trips right where they happen – no more confusion at the breaker box. Also including tamper and weather resistance, this model was designed for use on decks, patios, pool areas, and other outdoor spaces. Maximize safety, in style, with GFCI protection featuring the sleek, clean lines of radiant. GFCI protection is required by code in bathrooms, kitchens, garages, basements, outdoor areas, and for any other outlets found within six feet of a sink or water source. GFCI outlets should always be used when replacing existing GFCI outlets during renovation. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately. Spec-Grade devices are engineered to meet federal specifications for use in commercial installations.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Specifications

Weight

0.25lb

Height

4.69mm

Width

2.95mm

Length

1.73mm

Amperage Rating

15 A

Brand

Pass & Seymour

Category

RECEPTACLES & SURGE PROTECTORS

Color

Ivory

Dimensions

1.03 in L x 1.73 in W x 4.2 in H

Frequency Rating

60 Hz

Grade

Residential/Specification

Material

Nylon/Thermoplastic

NEMA Rating

NEMA 5-15R

Number Of Poles

2

Number of Wires

3

Series

1597TRW

Temperature Rating

-35 to 66 deg C

Terminal Type

Back/Side Wire/Screw

Type

Duplex Self-Test Tamper/Weather-Resistant

Voltage Rating

125 V AC
