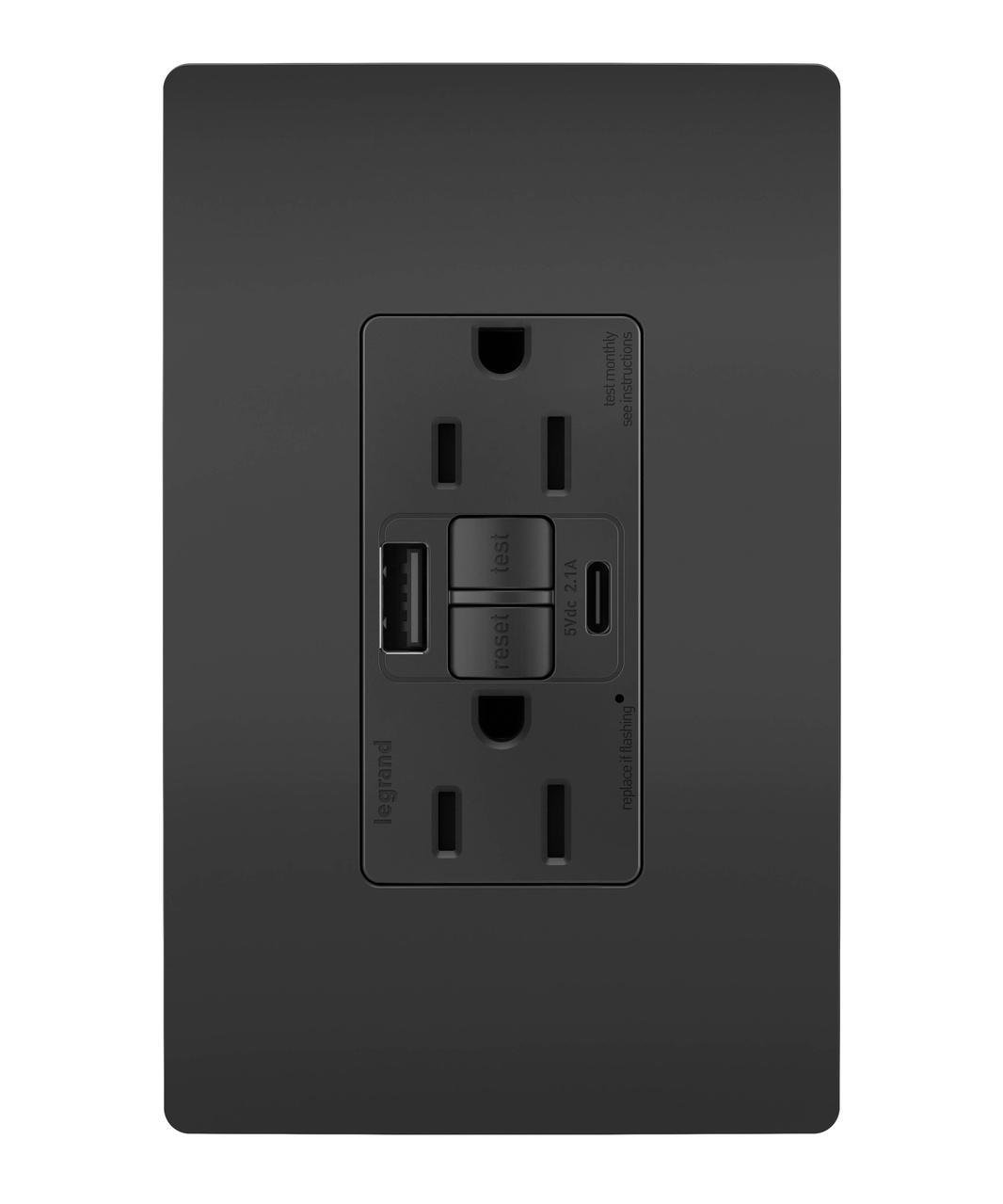

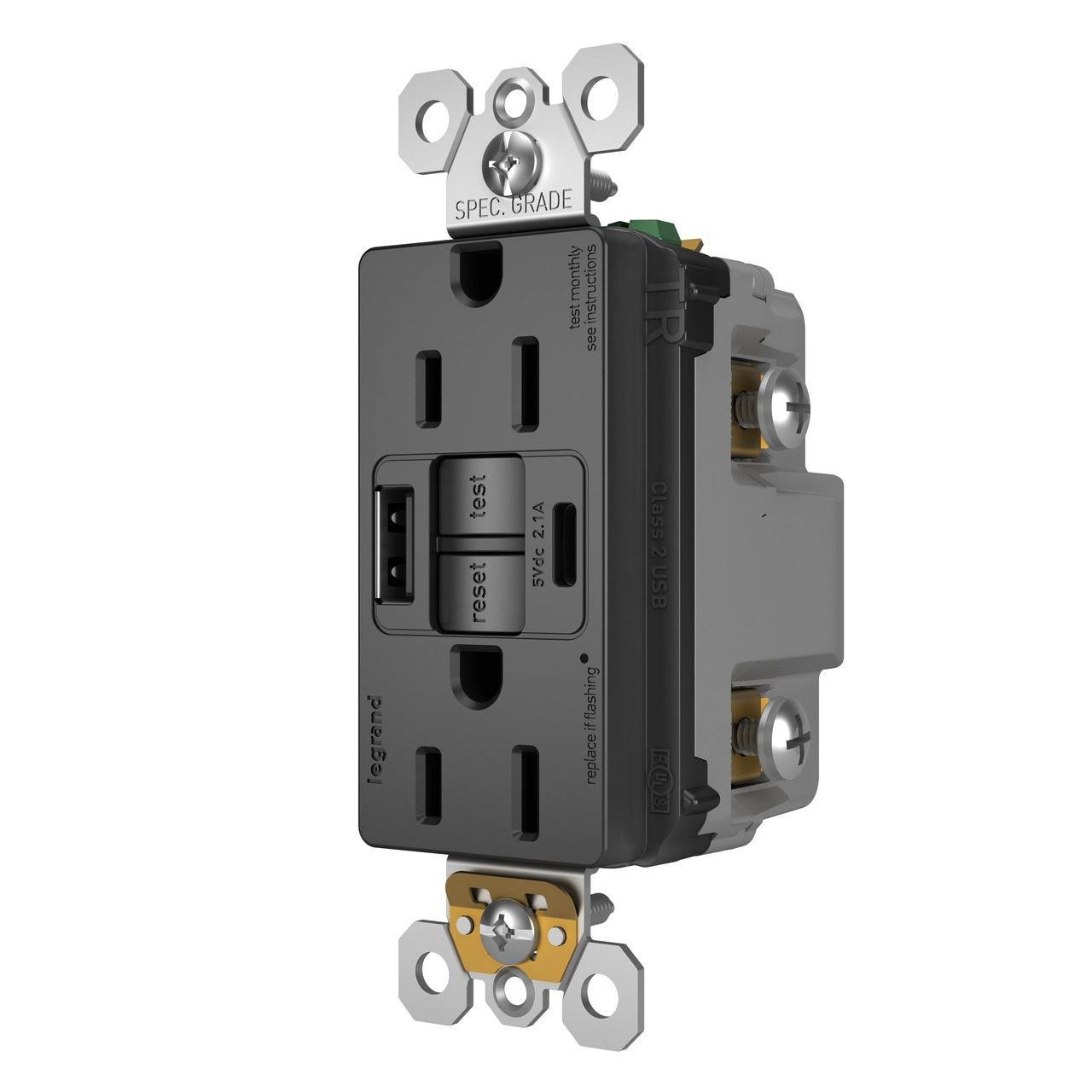

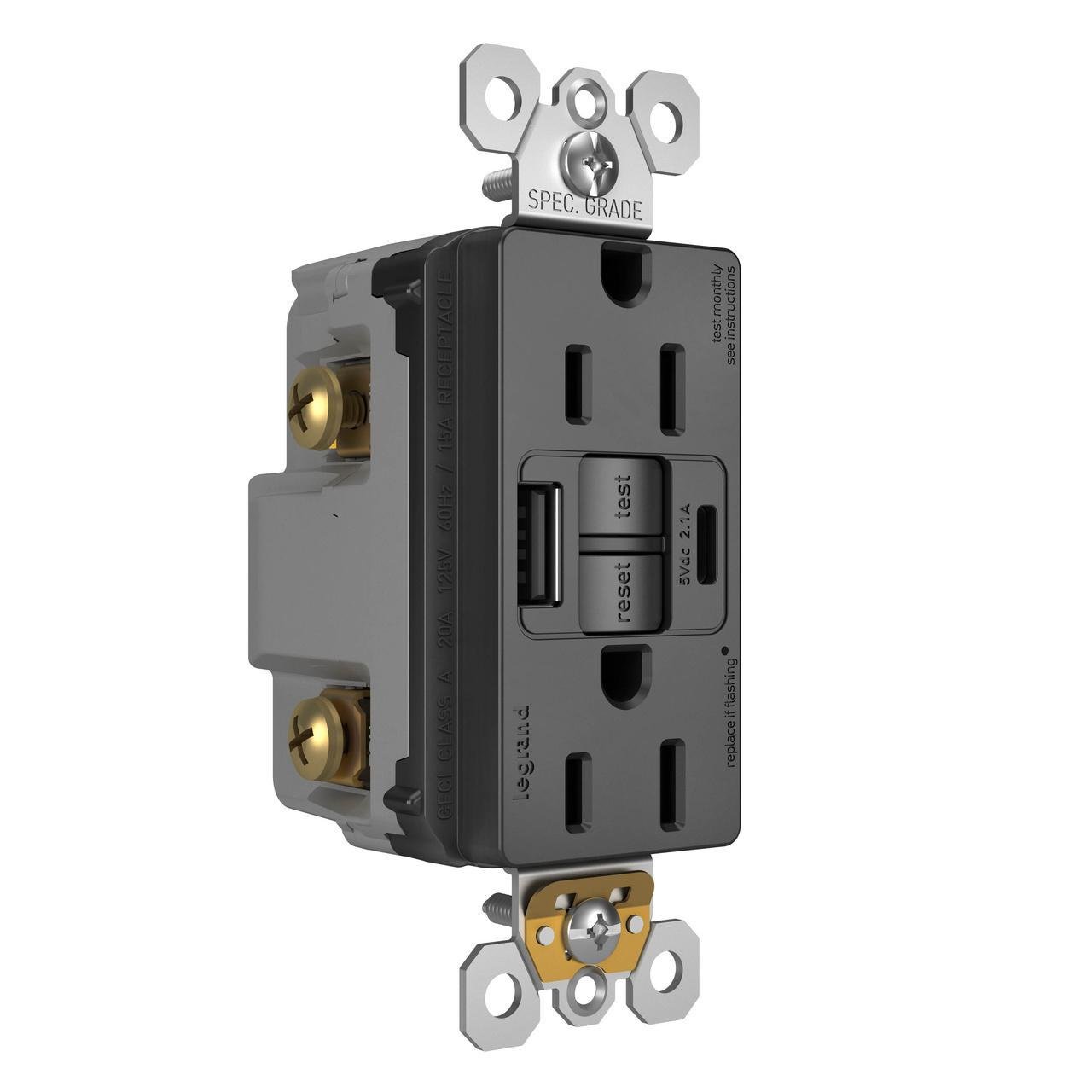

1597TRUSBACBK - radiant® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, USB Type A/C, Black
Description
Specifications
0.3lb
4.8mm
3mm
2.6mm
Residential and Commercial Applications
Pass & Seymour
USA
CN
COMBO RCPT GFCI/USB 125V 15A 2 BK 5-15R
First outlet of its kind to add USB connection to a GFCI outlet for easier charging, anywhere
Provides reliable ground fault protection with a trip indicator light and reset button on the outlet for easy, accessible troubleshooting
Self-tests every three seconds, ensuring continuous ground fault protection for greater safety
Additionally, in case of test failure, the indicator light (red LED) will flash to signal there is an issue and the outlet should be replaced
Equipped with proven SafeLock feature which disconnects power to the outlet if any critical components are damaged for added protection
Protect children using a patented "invisi-shutter" system to prevent the insertion of foreign objects while maintaining a discreet, invisible effect
Installs quickly thanks to a redesigned side wire cavity for easier access
Can provide ground fault protection to downstream outlets through feed-thru wiring
Complete the look with a sleek, screwless radiant Wall Plate, and coordinate with other designer switches and outlets available from the radiant Collection
Legrand
4.8000
IN
2.6000
IN
1
0.3000
LB
3.0000
IN
https://youtu.be/Y0ho6orHWKI
Pass & Seymour
RECEPTACLES & SURGE PROTECTORS
Amperage Rating
A
15
Voltage Rating
V
125
Color
Black
Dimensions
1.74 in W x 2.15 in D x 4.19 in H
Material
Polycarbonate
NEMA Rating
5-15R
Number Of Poles
2
Series
radiant®
Terminal Type
Side wire
Type
Tamper-Resistant Self-Test
