Pass & Seymour

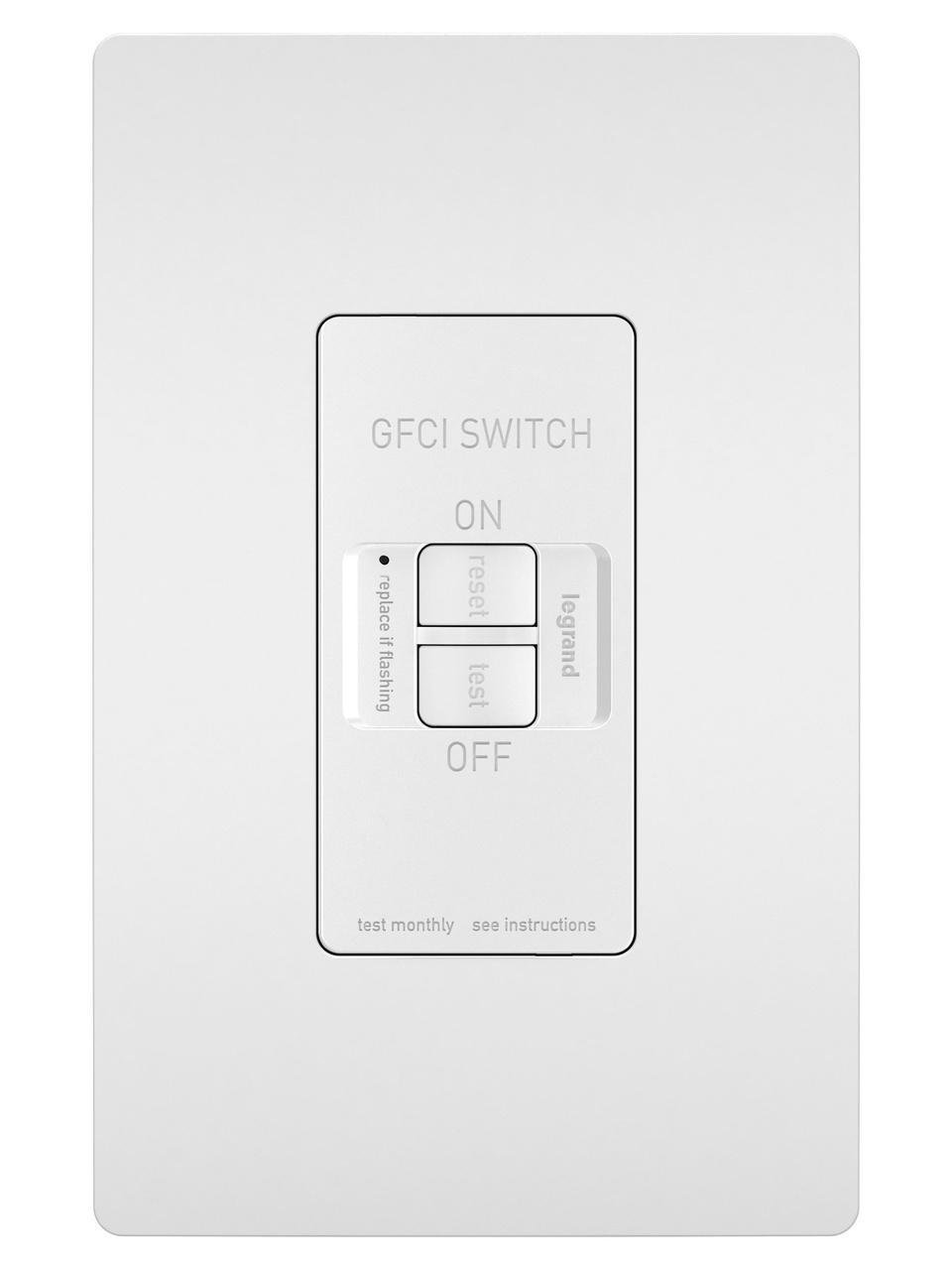

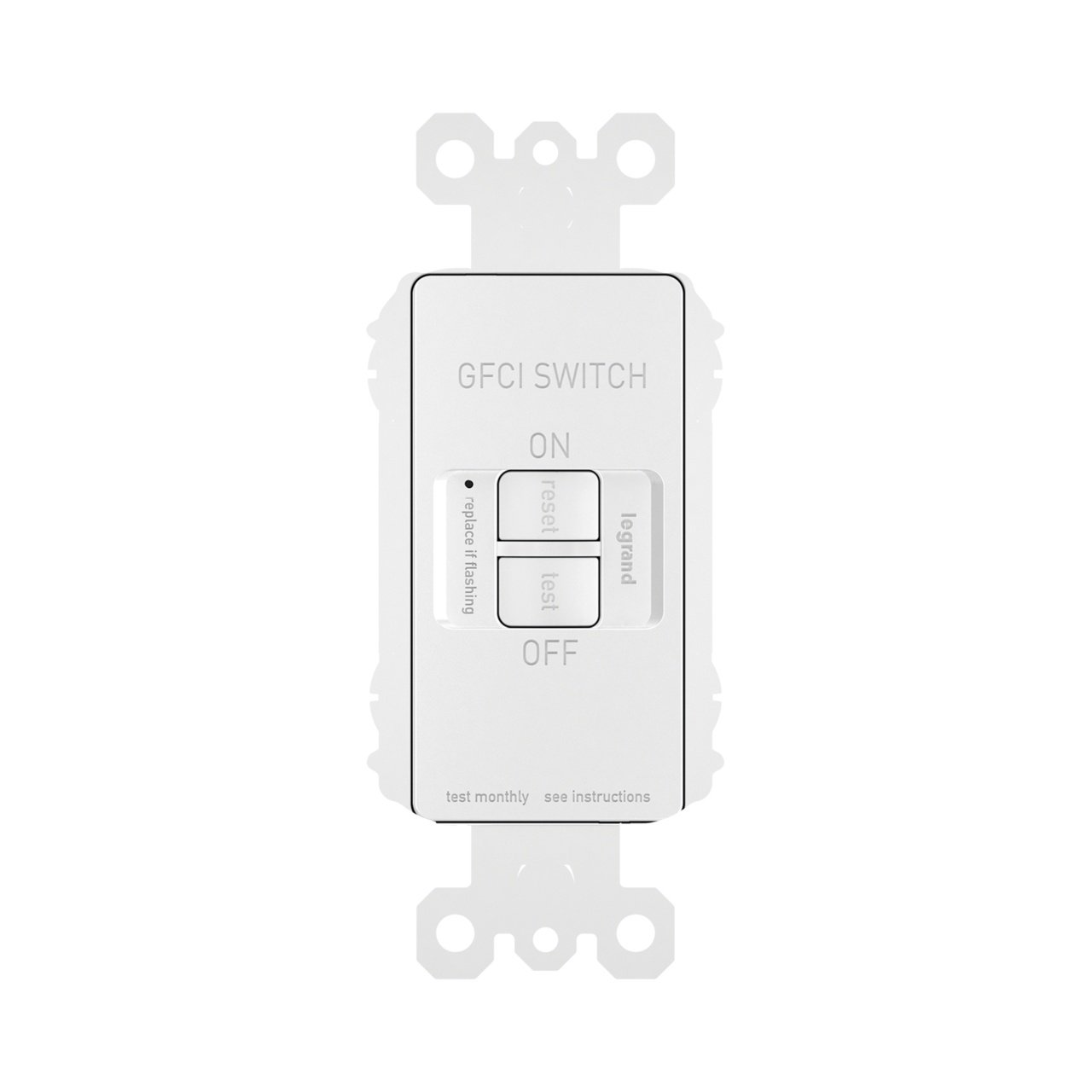

2087-W - radiant® Dead Front 20A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, White

Category Receptacles & Surge Protectors
Picture of 2087-W - radiant® Dead Front 20A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, White Picture of 2087-W - radiant® Dead Front 20A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, White
Picture of 2087-W - radiant® Dead Front 20A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, White Picture of 2087-W - radiant® Dead Front 20A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, White
Picture of 2087-W - radiant® Dead Front 20A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, White Picture of 2087-W - radiant® Dead Front 20A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, White
Picture of 2087-W - radiant® Dead Front 20A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, White Picture of 2087-W - radiant® Dead Front 20A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, White
Picture of 2087-W - radiant® Dead Front 20A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, White Picture of 2087-W - radiant® Dead Front 20A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, White
Pass & Seymour

2087-W - radiant® Dead Front 20A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, White

Item Code: 926069
Category Receptacles & Surge Protectors
Manufacturer Legrand
Manufacturer Ref 2087-W

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This dead front receptacle is a ground fault circuit interrupter designed for use when access to power isn't also needed. Ideal for use in spaces where ground fault protection is required around large or hard-to-move equipment, such as residential spa or hydromassage tubs and commercial kitchen appliances. The device features a convenient indicator light and accessible test/reset buttons that make trips easier to recognize and fix than with GFCI breaker alternatives. Conducts an automatic self-test every three seconds to ensure reliable protection, while also featuring the sleek, clean lines of the radiant® Collection for a sophisticated look. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately. Spec-Grade devices are engineered to meet federal specifications for use in commercial installations.

Specifications

Weight

0.25lb

Height

4.69mm

Width

2.95mm

Length

1.73mm

AD Application

Industrial, Retail, Health Care, Office, Education, Hospitality/Lodging, Institutional and Multiple Dwelling, Commercial and Residential Applications

AD Brand (Description)

Pass & Seymour

AD Country

USA

AD Country Of Origin

CN

AD Invoice Description

RECEPTACLE GFCI 125VAC 20A 2 WHT

AD Item Features 01

Protects against shock caused by ground-fault occurrences

AD Item Features 02

Unlike breaker alternatives, GFCI receptacles make it easier to fix trips with a reset button right on the device

AD Item Features 03

Conducts an industry-leading automatic self-test every 3 seconds

AD Item Features 04

If the device ever fails, the indicator light flashes to signal it should be replaced

AD Item Features 05

Equipped with proven SafeLock protection feature - if critical components are damaged and protection is lost, power to the outlet is disconnected

AD Item Features 06

Replaces any standard receptacle with ease, in as little as 10 min

AD Item Features 07

Features durable, high-impact resistant thermoplastic construction

AD Item Features 08

More color options available to fit any style, including finishes to match current hardware and lighting trends

AD Item Features 09

Complete the look with a sleek, screwless radiant Wall Plate, and coordinate with other designer switches and outlets available from the radiant Collection

AD Manufacturer (Description)

Legrand

AD Package Height

4.6900

AD Package Height UOM

IN

AD Package Length

1.7300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.2500

AD Package Weight UOM

LB

AD Package Width

2.9500

AD Package Width UOM

IN

Brand

Pass & Seymour

Category

RECEPTACLES & SURGE PROTECTORS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

20

Spec 10 Attribute

Series

Spec 10 Attribute Value

2087

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

-35 To 66

Spec 12 Attribute

Terminal Type

Spec 12 Attribute Value

Back/Side Wire/Screw

Spec 13 Attribute

Type

Spec 13 Attribute Value

Dead Front Self-Test

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

125

Spec 2 Attribute

Color

Spec 2 Attribute Value

White

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

1.03 in L x 1.73 in W x 4.2 in H

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

60

Spec 5 Attribute

Grade

Spec 5 Attribute Value

Specification

Spec 6 Attribute

HORSEPOWER

Spec 6 Attribute UOM

HP

Spec 6 Attribute Value

1/1/2002

Spec 7 Attribute

Material

Spec 7 Attribute Value

Nylon/Thermoplastic

Spec 8 Attribute

NEMA Rating

Spec 8 Attribute Value

NEMA 5-20R

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

2
