Pass & Seymour

2097-BK - radiant® 20A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Black

Category Receptacles & Surge Protectors

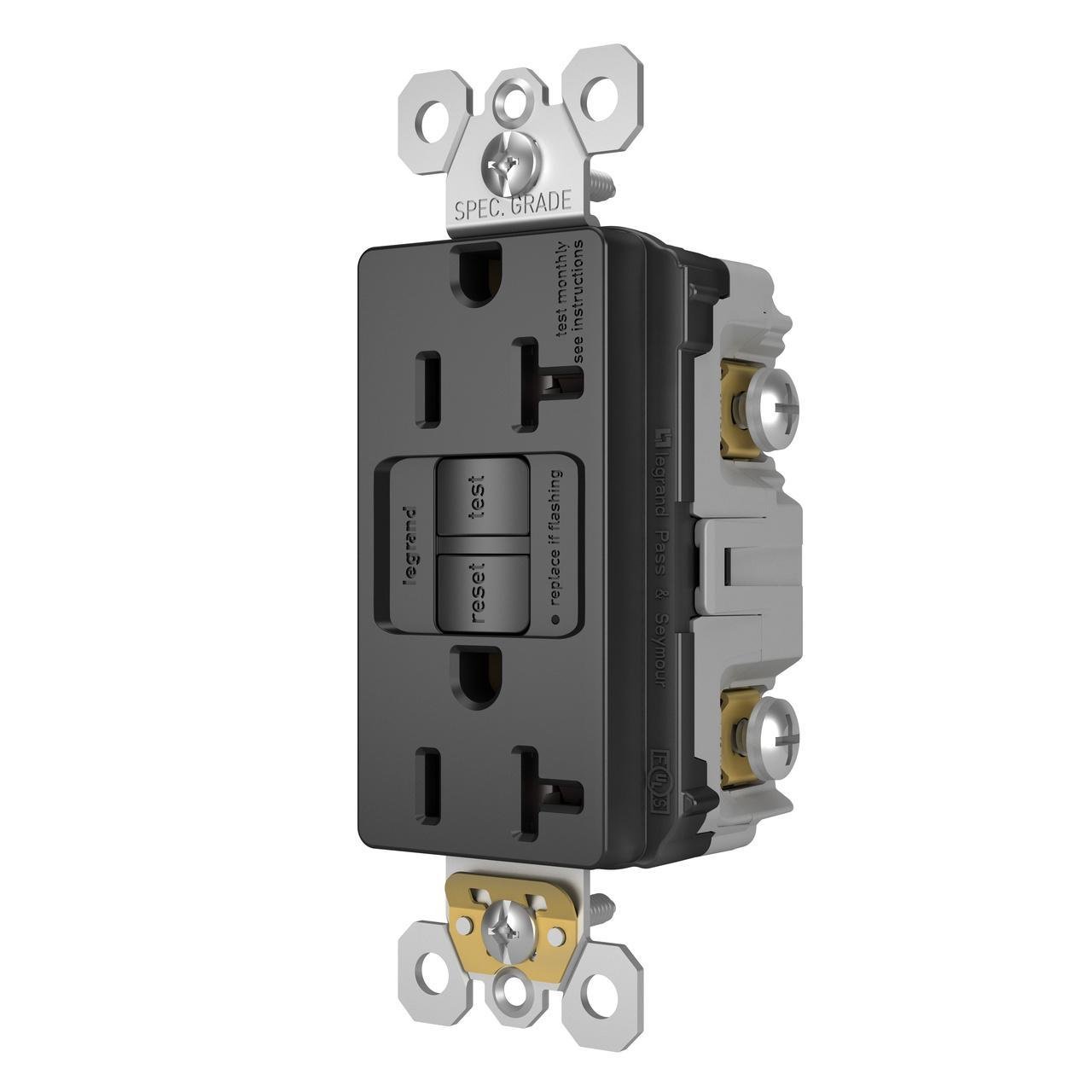

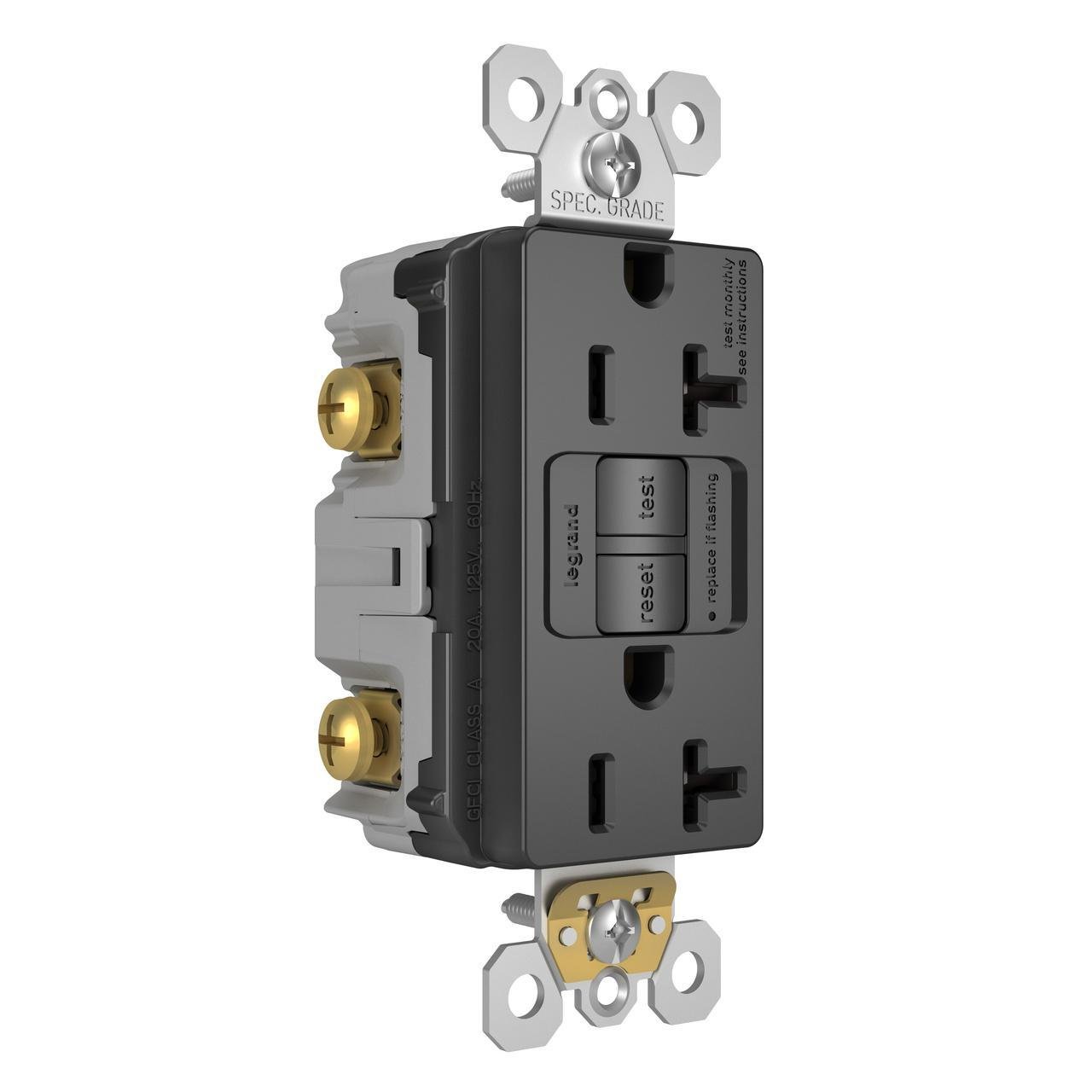

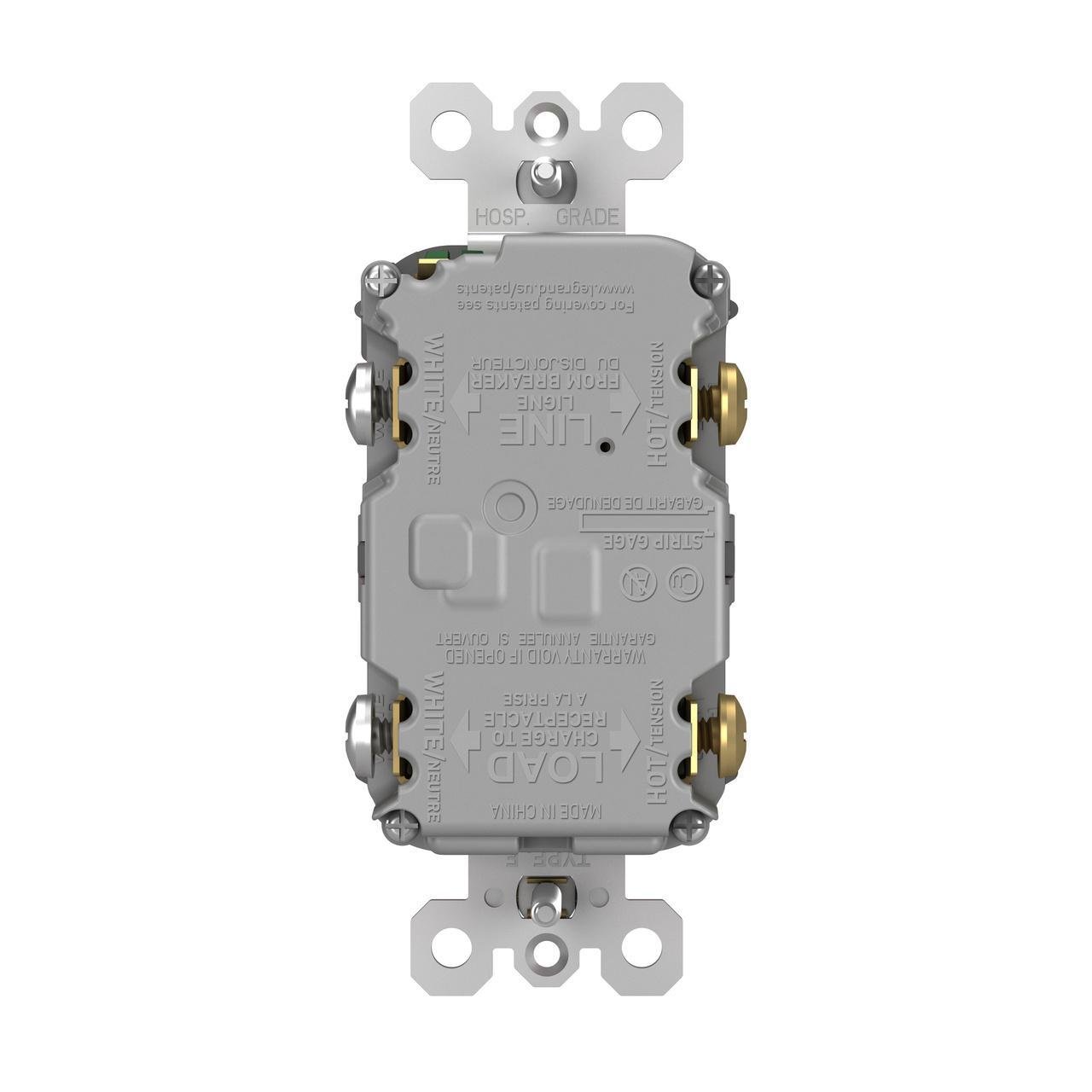

Picture of 2097-BK - radiant® 20A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Black
Pass & Seymour

2097-BK - radiant® 20A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Black

Item Code: 923763
Category Receptacles & Surge Protectors
Manufacturer Legrand
Manufacturer Ref 2097-BK

Catalog
Owners User Manual
Specification Sheet
Instruction Installation Manual
Watch video
Call for Availability
Add to Favorites
Compare

Description

GFCI receptacles from the radiant® Collection self-test automatically every three seconds to ensure reliable protection from shock due to ground fault occurrences. Meeting National Electrical Code requirements for ground fault protection, GFCI receptacles make it easier to recognize and fix trips right where they happen – no more confusion at the breaker box. 20A outlets are ideal for use with larger appliances, as well as to meet regional requirements (Chicago, Canada).GFCI protection is required by code in bathrooms, kitchens, garages, basements, outdoor areas, and for any other outlets found within six feet of a sink or water source. GFCI outlets should always be used when replacing existing GFCI outlets during renovation.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately. Spec-Grade devices are engineered to meet federal specifications for use in commercial installations.

Specifications

Weight

0.25lb

Height

4.69mm

Width

2.95mm

Length

1.73mm

Amperage Rating

20 A

Brand

Pass & Seymour

Category

RECEPTACLES & SURGE PROTECTORS

Color

Black

Dimensions

1.03 in L x 1.73 in W x 4.2 in H

Frequency Rating

60 Hz

Grade

Specification

Horsepower

1 hp

Material

Thermoplastic

NEMA Rating

NEMA 5-20R

Number Of Poles

2

Number of Wires

3

Series

2097

Temperature Rating

-35 to 66 deg C

Terminal Type

Back/Side Wire

Type

Duplex Self-Test

Voltage Rating

125 V AC
