Pass & Seymour

2097-TRAW - Spec-Grade Audible Alarm Tamper-Resistant 20A Self-Test Duplex GFCI, White 2097TRAW

Category Receptacles & Surge Protectors

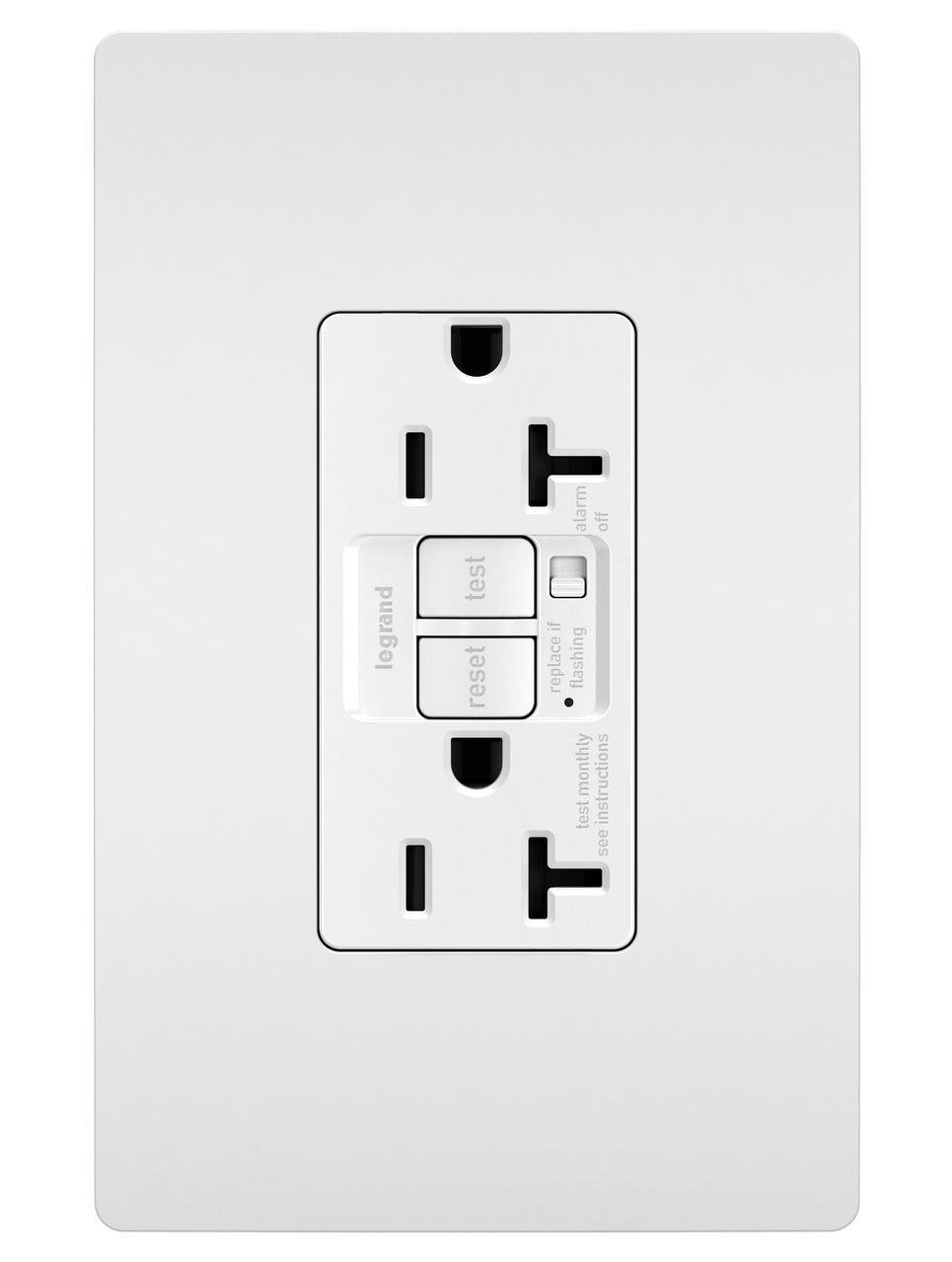

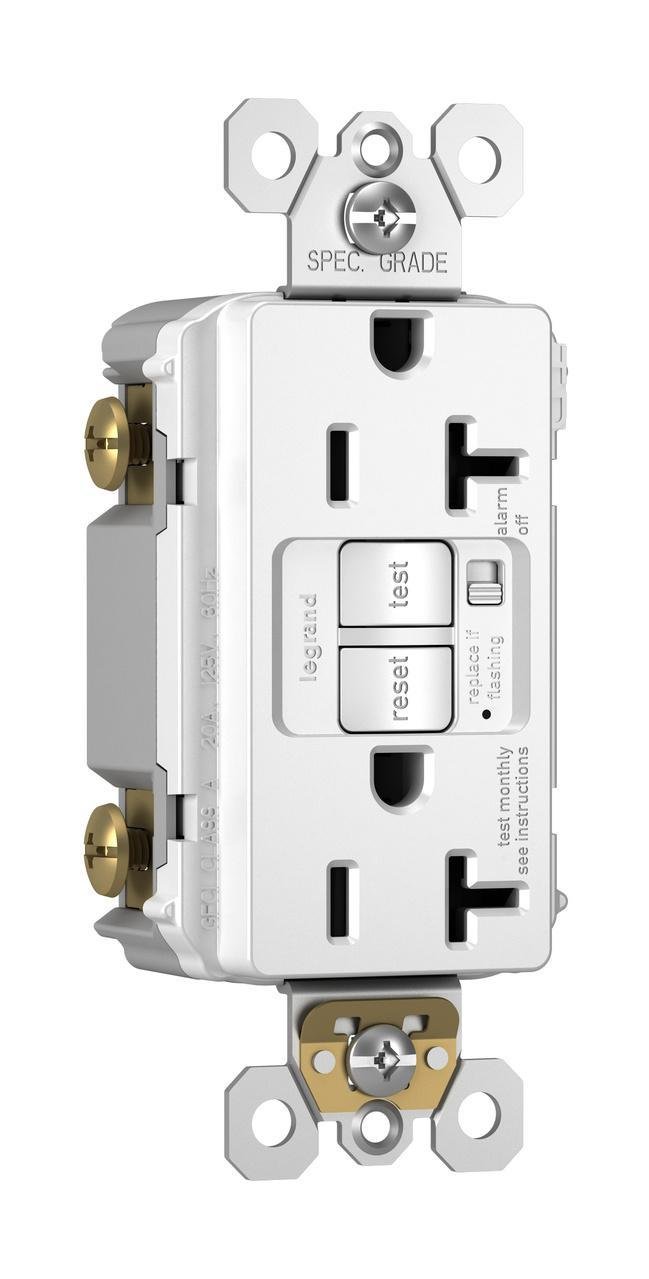

Picture of 2097-TRAW - Spec-Grade Audible Alarm Tamper-Resistant 20A Self-Test Duplex GFCI, White 2097TRAW Picture of 2097-TRAW - Spec-Grade Audible Alarm Tamper-Resistant 20A Self-Test Duplex GFCI, White 2097TRAW
Picture of 2097-TRAW - Spec-Grade Audible Alarm Tamper-Resistant 20A Self-Test Duplex GFCI, White 2097TRAW Picture of 2097-TRAW - Spec-Grade Audible Alarm Tamper-Resistant 20A Self-Test Duplex GFCI, White 2097TRAW
Picture of 2097-TRAW - Spec-Grade Audible Alarm Tamper-Resistant 20A Self-Test Duplex GFCI, White 2097TRAW Picture of 2097-TRAW - Spec-Grade Audible Alarm Tamper-Resistant 20A Self-Test Duplex GFCI, White 2097TRAW
Pass & Seymour

2097-TRAW - Spec-Grade Audible Alarm Tamper-Resistant 20A Self-Test Duplex GFCI, White 2097TRAW

Item Code: 926073
Category Receptacles & Surge Protectors
Manufacturer Legrand
Manufacturer Ref 2097-TRAW

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

GFCI receptacles from the radiant® Collection self-test automatically every three seconds to ensure reliable protection from shock due to ground fault occurrences. Meeting National Electrical Code requirements for ground fault protection, GFCI receptacles make it easier to recognize and fix trips right where they happen – no more confusion at the breaker box. 20A outlets are ideal for use with larger appliances and in commercial settings, as well as to meet regional requirements (Chicago, Canada). GFCI protection is required by code in bathrooms, kitchens, garages, basements, outdoor areas, and for any other outlets found within six feet of a sink or water source. GFCI outlets should always be used when replacing existing GFCI outlets during renovation. Spec-Grade devices are engineered to meet federal specifications for use in commercial installations.

Specifications

Weight

0.25lb

Height

4.69mm

Width

1.73mm

Length

2.95mm

AD Application

Commercial, Residential, Industrial, Health Care, Education, Institutional, Retail, Office, Hospitality/Lodging and Multiple Dwelling Applications

AD Brand (Description)

Pass & Seymour

AD Country

USA

AD Country Of Origin

CN

AD Includes

Matching TP26 Nylon Wallplate and Nightlight

AD Invoice Description

RECEPTACLE GFCI 125VAC 20A 2 3 WHT

AD Item Features 01

Alarm rated at 60 db at 10 ft

AD Item Features 02

One-piece, brass, triple-wipe power contacts for lasting retention

AD Item Features 03

Conducts an automatic test every three seconds, ensuring it's always ready to protect

AD Item Features 04

If the device fails the test, the trip indicator light (red LED) flashes to signal that the GFCI should be replaced

AD Item Features 05

Equipped with proven SafeLock protection feature - if critical components are damaged and protection is lost, power to the receptacle is disconnected

AD Item Features 06

Feed-thru wiring configuration allows GFCI to protect downstream receptacles

AD Item Features 07

Prevents line-load reversal miswire - no power to the face or downstream receptacles if wired incorrectly

AD Item Features 08

Mounting screws are shipped captive in the device and wall plate for easier installation

AD Item Features 09

Dual-direction test and reset button colors match the device face

AD Item Features 10

Thinner than competitors' GFCI Receptacles - leaves more room for wires in the box

AD Manufacturer (Description)

Legrand

AD Package Height

4.6900

AD Package Height UOM

IN

AD Package Length

2.9500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.2500

AD Package Weight UOM

LB

AD Package Width

1.7300

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/watch?v=wWKZUjGeZcA

Brand

Pass & Seymour

Category

RECEPTACLES & SURGE PROTECTORS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

20

Spec 10 Attribute

Number Of Wires

Spec 10 Attribute Value

3

Spec 11 Attribute

Series

Spec 11 Attribute Value

2097TR

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg C

Spec 12 Attribute Value

-35 To 66

Spec 13 Attribute

Terminal Type

Spec 13 Attribute Value

Back/Side Wire

Spec 14 Attribute

Type

Spec 14 Attribute Value

Audible Alarm Duplex Self-Test Tamper-Resistant

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

125

Spec 2 Attribute

Color

Spec 2 Attribute Value

White

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

1.03 in L x 1.73 in W x 4.2 in H

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

60

Spec 5 Attribute

Grade

Spec 5 Attribute Value

Specification

Spec 6 Attribute

HORSEPOWER

Spec 6 Attribute UOM

HP

Spec 6 Attribute Value

1

Spec 7 Attribute

Material

Spec 7 Attribute Value

Thermoplastic

Spec 8 Attribute

NEMA Rating

Spec 8 Attribute Value

NEMA 5-20R

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

2
