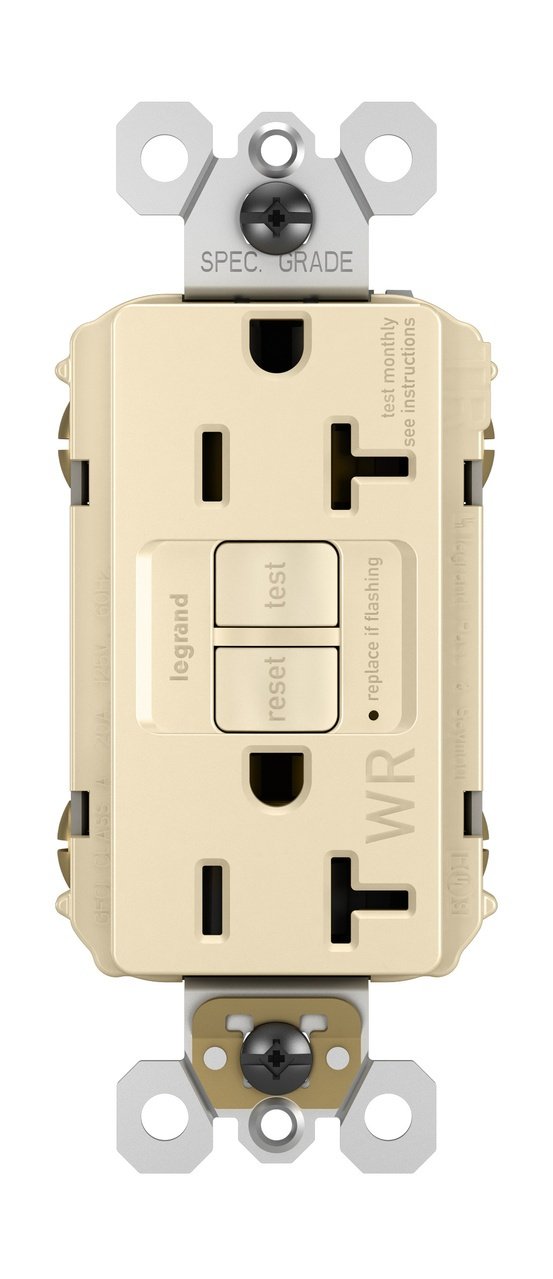

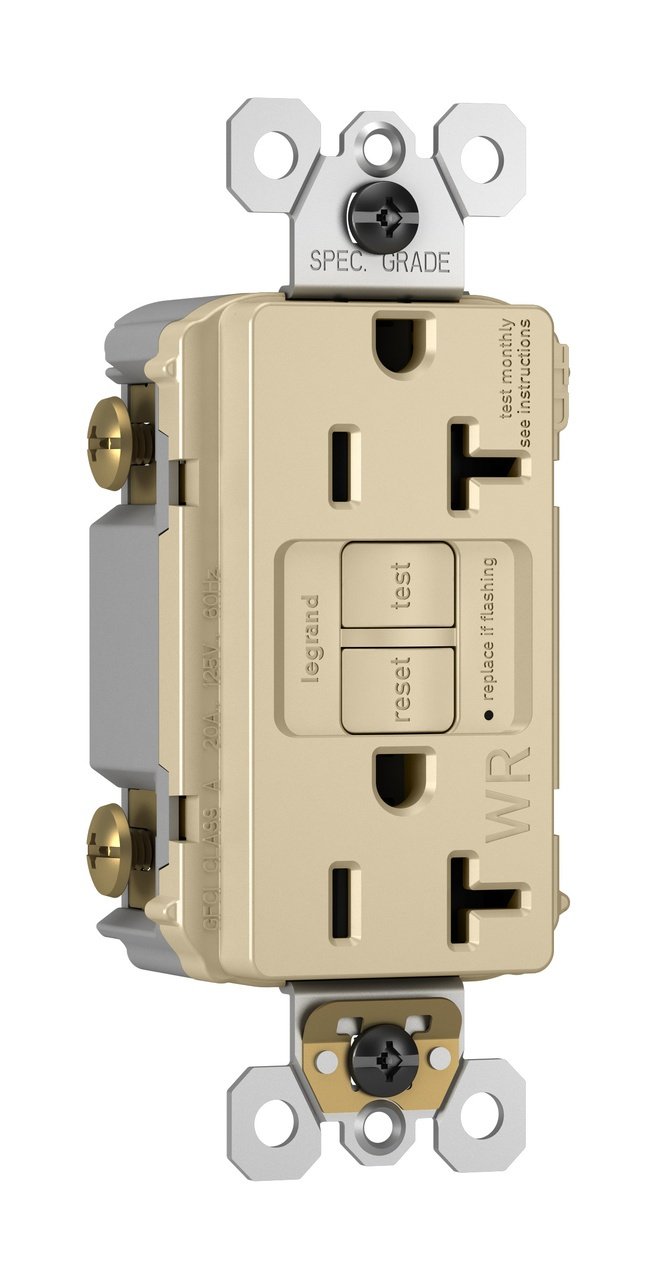

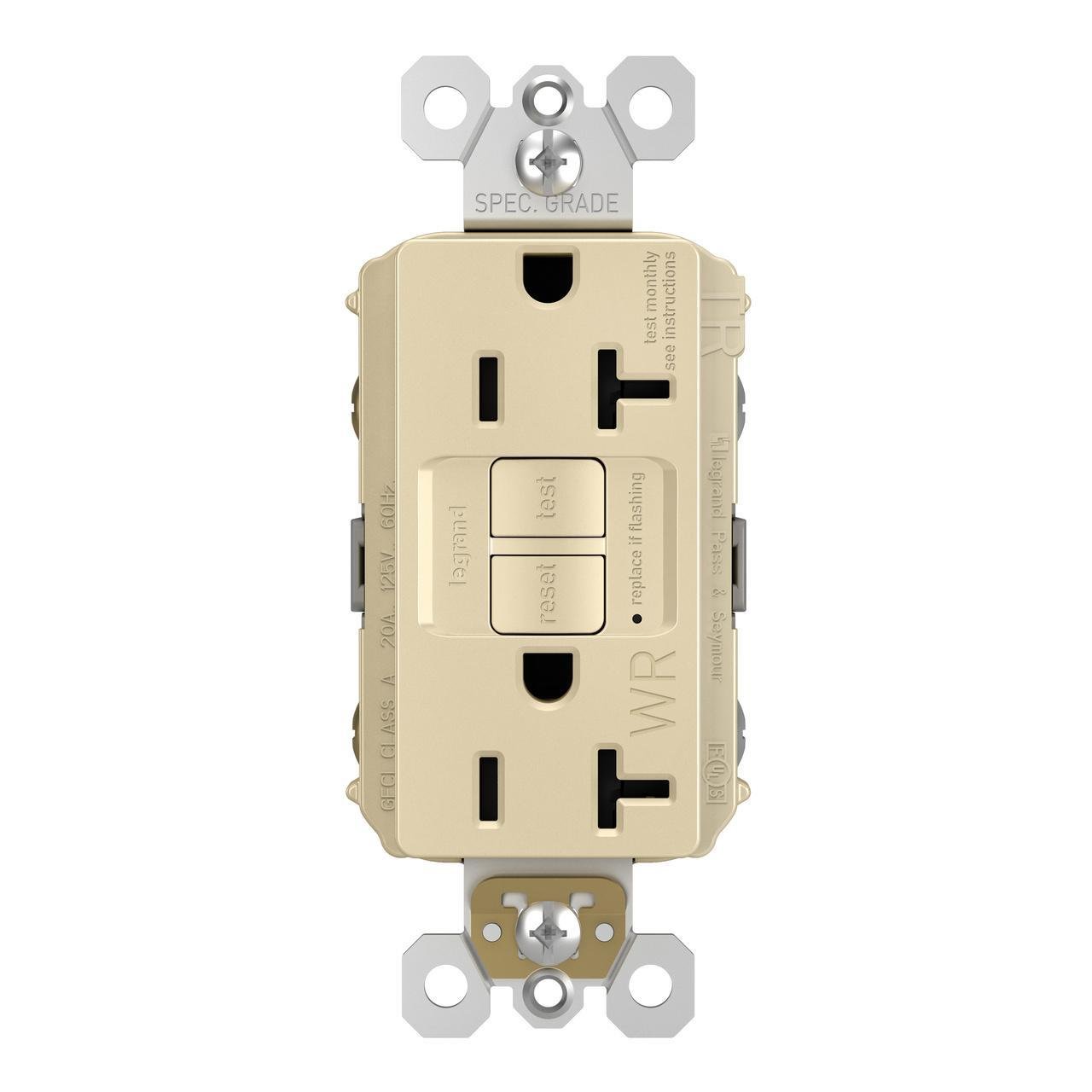

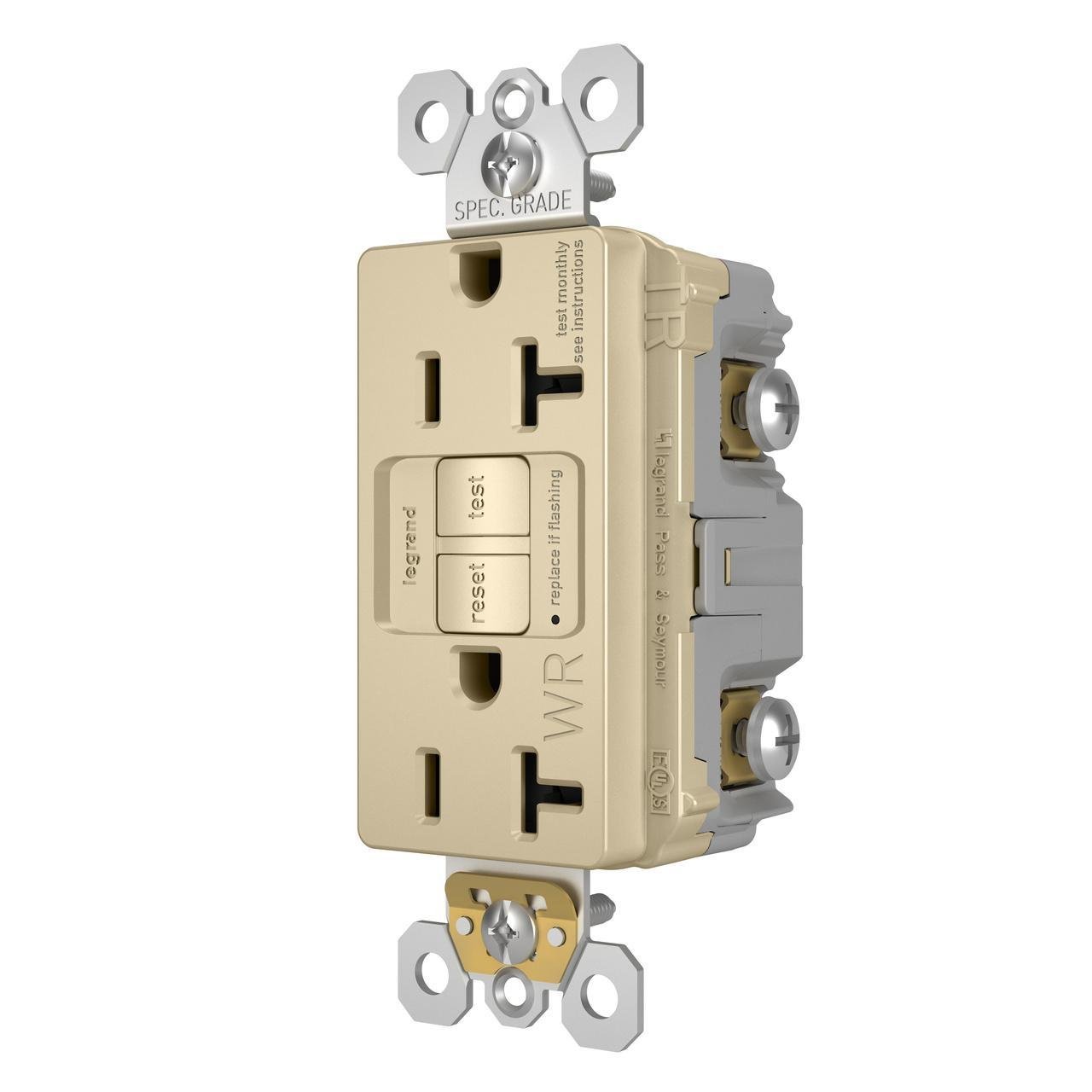

2097-TRWRI - radiant® Tamper-Resistant Weather-Resistant 20A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Ivory
Description
Specifications
0.25lb
4.69mm
2.95mm
1.73mm
Commercial, Residential, Industrial, Health Care, Education, Institutional, Retail, Office, Hospitality/Lodging and Multiple Dwelling Applications
Pass & Seymour
USA
CN
RECEPTACLE GFCI 125VAC 20A 2 3 IVORY
Protects against shock caused by ground-fault occurrences
Unlike breaker alternatives, GFCI receptacles make it easier to fix trips with a reset button right on the device
Conducts an industry-leading automatic self-test every 3 seconds
If the device ever fails, the indicator light flashes to signal it should be replaced
Equipped with proven SafeLock protection feature - if critical components are damaged and protection is lost, power to the outlet is disconnected
Extends GFCI protection to downstream outlets when used with feed-thru wiring configuration
Note, Will cut power to face and downstream outlets if wired incorrectly
Replaces any standard receptacle with ease, in as little as 10 min
Features durable, high-impact resistant thermoplastic construction
More color options available to fit any style, including finishes to match current hardware and lighting trends
Complete the look with a sleek, screwless radiant Wall Plate, and coordinate with other designer switches and outlets available from the radiant Collection
Legrand
4.6900
IN
1.7300
IN
1
0.2500
LB
2.9500
IN
Pass & Seymour
RECEPTACLES & SURGE PROTECTORS
Amperage Rating
A
20
Series
2097TRW
Temperature Rating
deg C
-35 To 66
Terminal Type
Back/Side Wire/Screw
Type
Duplex Self-Test Tamper/Weather-Resistant
Voltage Rating
V AC
125
Color
Ivory
Dimensions
1.03 in L x 1.73 in W x 4.2 in H
Frequency Rating
HZ
60
Grade
Specification
Material
Nylon/Thermoplastic
NEMA Rating
NEMA 5-20R
Number Of Poles
2
Number Of Wires
3
