Pass & Seymour

5362CH-W - 20A 125V Half-Controlled Plug Load Duplex Receptacle, White

Category Receptacles & Surge Protectors

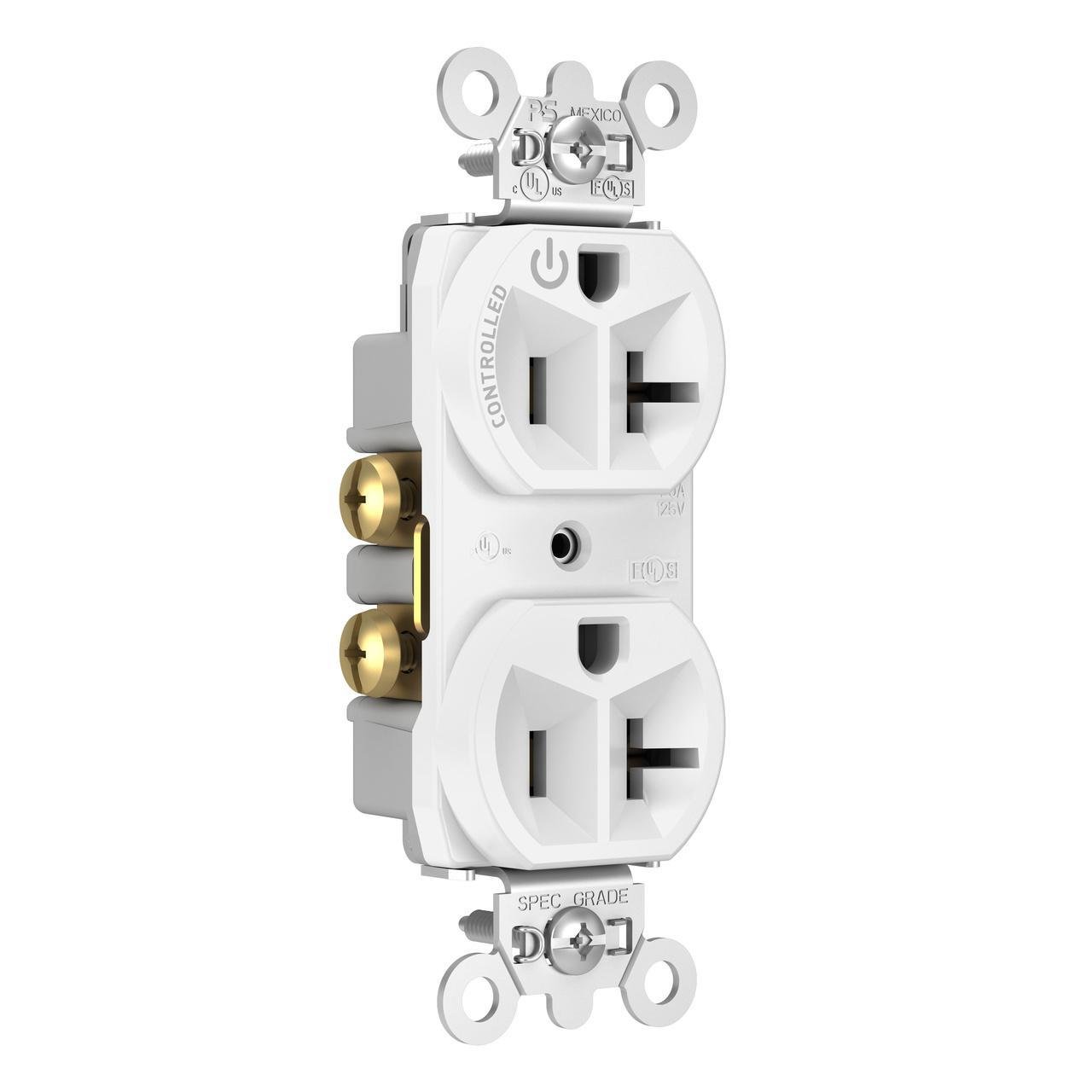

Picture of 5362CH-W - 20A 125V Half-Controlled Plug Load Duplex Receptacle, White Picture of 5362CH-W - 20A 125V Half-Controlled Plug Load Duplex Receptacle, White
Picture of 5362CH-W - 20A 125V Half-Controlled Plug Load Duplex Receptacle, White Picture of 5362CH-W - 20A 125V Half-Controlled Plug Load Duplex Receptacle, White
Pass & Seymour

5362CH-W - 20A 125V Half-Controlled Plug Load Duplex Receptacle, White

Item Code: 963342
Category Receptacles & Surge Protectors
Manufacturer Legrand
Manufacturer Ref 5362CH-W

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Permanent controlled receptacle marking allows for long-lasting, easy identification of controlled receptacle for end-users. NEMA-approved and compliant with 2014 NEC, CA Title 24, and ASHRAE Energy Efficiency Standard 90.1.

Specifications

Weight

0.23

Height

4.38

Width

1.38

Length

1.94

AD Application

Office, Education, Institutional, Hospitality/Lodging and MDU Applications

AD Brand (Description)

Pass & Seymour

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

RECEPTACLE BL STR 125VAC 20A 2 3 WHT NYL

AD Item Features 01

Can be wired to any number of system-based or stand-alone plug load control solutions

AD Item Features 02

Two drive screws anchor strap to back body and face where abrupt removal torque is greatest

AD Item Features 03

Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly

AD Item Features 04

0.032 in thick, brass, triple-wipe power contacts for lasting retention

AD Item Features 05

Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring

AD Item Features 06

Terminal compartments isolated from each other for positive conductor containment

AD Item Features 07

Tri-drive terminal and mounting screws

AD Item Features 08

Auto-ground clip assures positive ground

AD Manufacturer (Description)

Legrand

AD Package Height

4.3800

AD Package Height UOM

IN

AD Package Length

1.9400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.2300

AD Package Weight UOM

LB

AD Package Width

1.3800

AD Package Width UOM

IN

Brand

Pass & Seymour

Category

RECEPTACLES & SURGE PROTECTORS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

20

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

-40 To 60

Spec 11 Attribute

Terminal Type

Spec 11 Attribute Value

Back/Side Wire

Spec 12 Attribute

Type

Spec 12 Attribute Value

Duplex Half Control

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

125

Spec 2 Attribute

Color

Spec 2 Attribute Value

White

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

3.281 in H x 1.322 in W x 0.78 in D

Spec 4 Attribute

Enclosure

Spec 4 Attribute Value

NEMA WD-1/WD-6

Spec 5 Attribute

Grade

Spec 5 Attribute Value

Commercial

Spec 6 Attribute

Material

Spec 6 Attribute Value

Nylon

Spec 7 Attribute

NEMA Rating

Spec 7 Attribute Value

NEMA 5-20R

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

2

Spec 9 Attribute

Number Of Wires

Spec 9 Attribute Value

3
