PAS CP498TR15BK
Description
Specifications
0.43
3.9
3.12

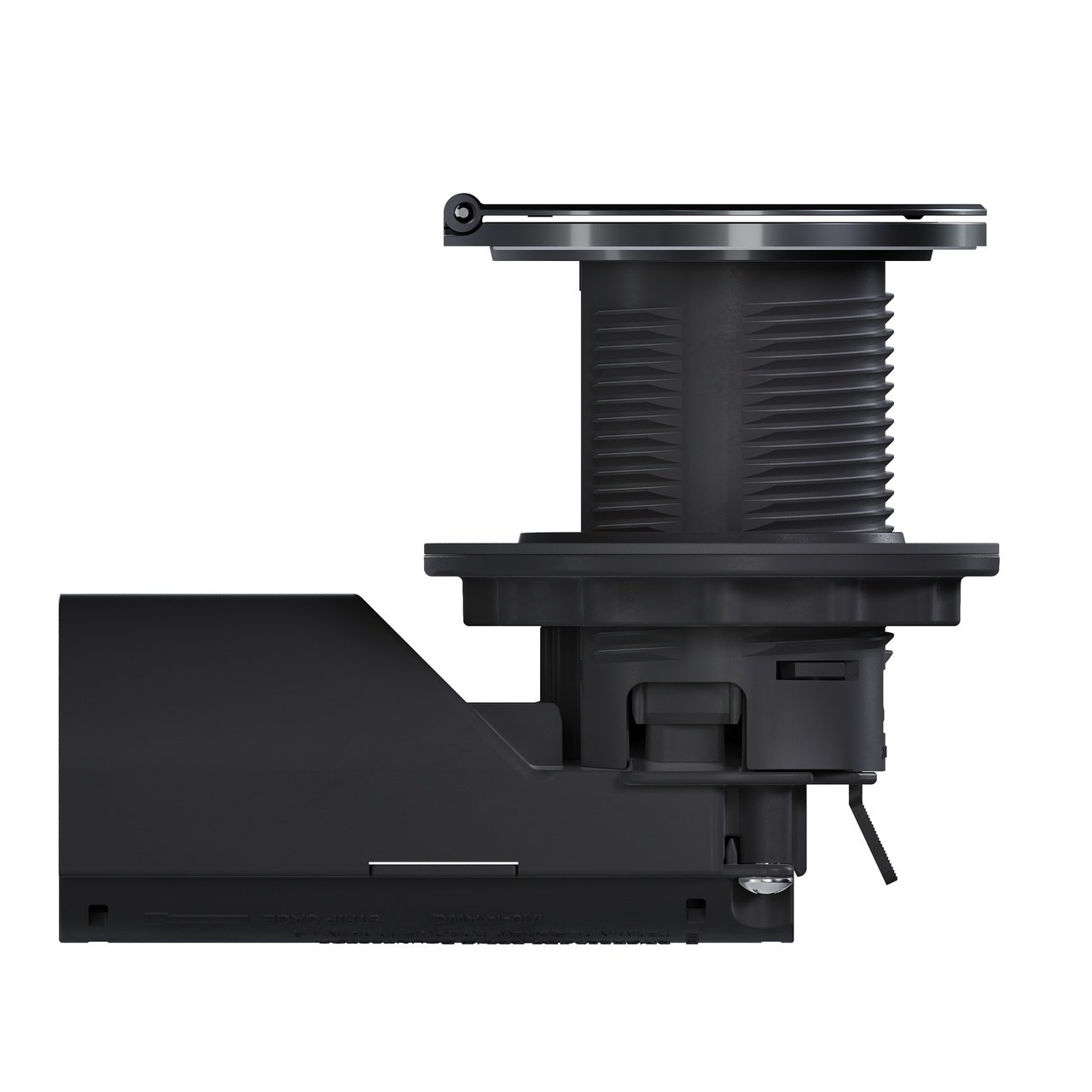

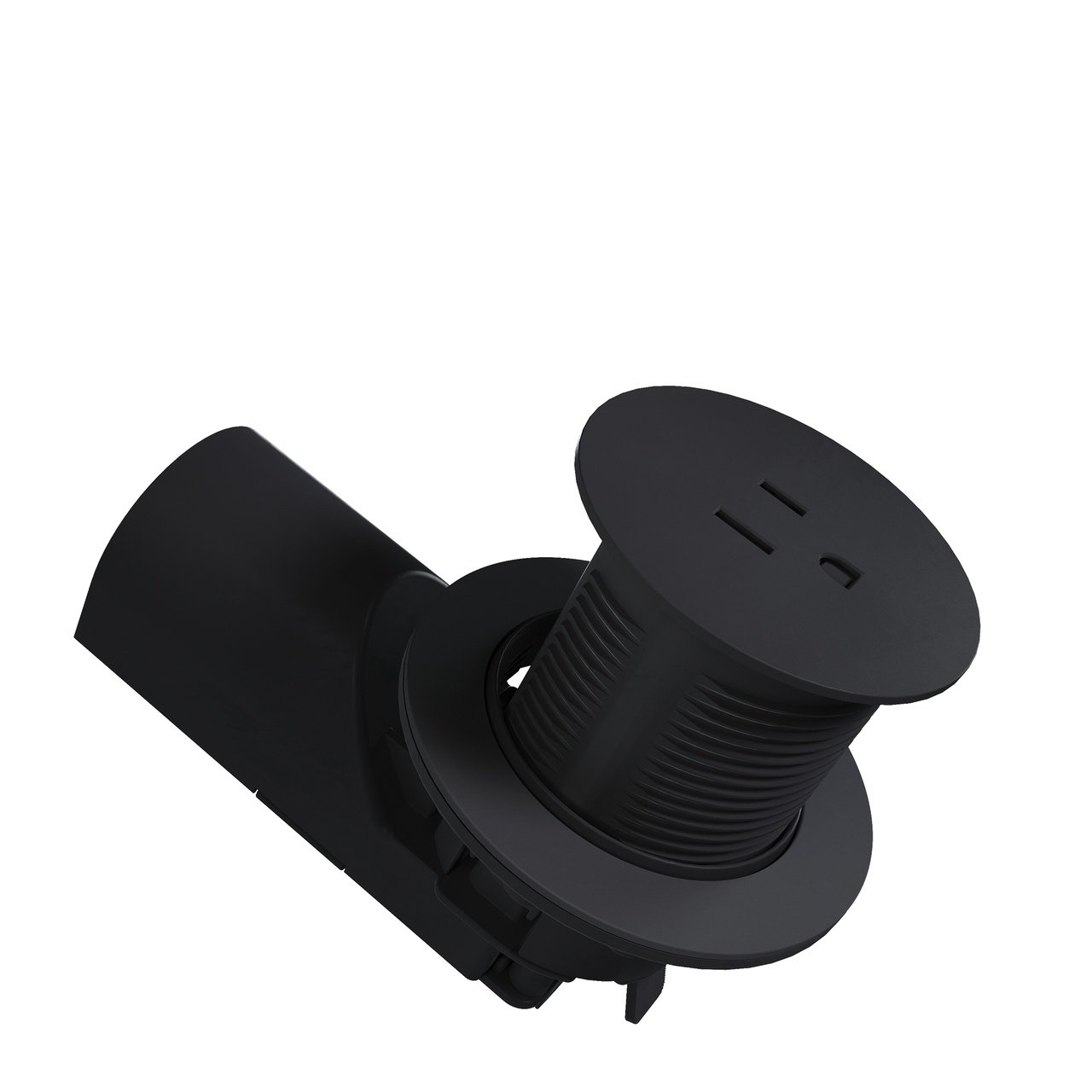

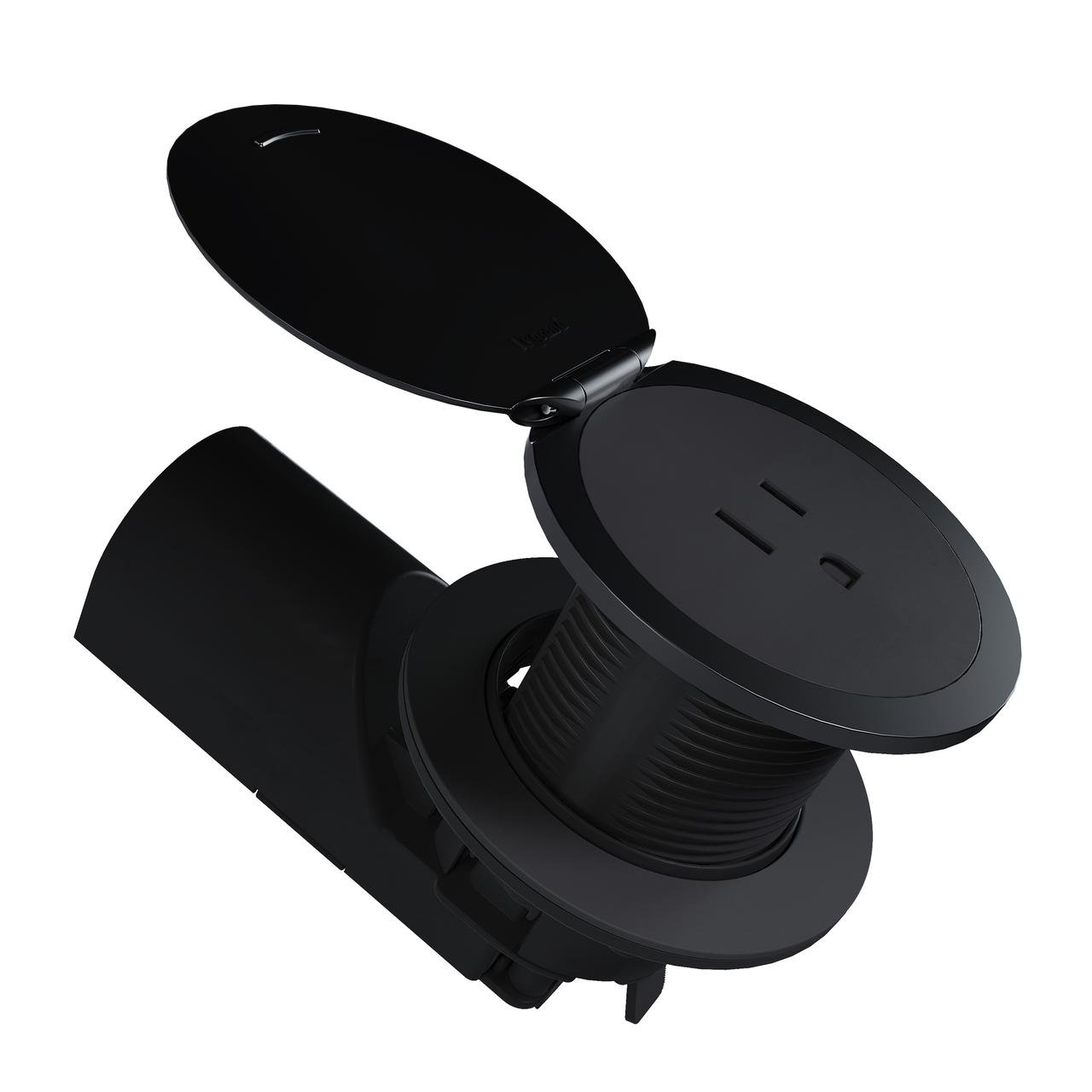

Solution for kitchen islands and peninsulas, featuring a compact design and quick connection for easy installation
Pass & Seymour
USA
CN
FL BOX OUT ASSY CAST METAL 1 SURFACE
Features a quick connecting termination tail that is wired above the counter and a hand-turn nut that requires no tools under the counter
Required installation downstream or connected to a GFCI breaker
Requires a 2 in to 2.25 in hole drilled into the countertop, which is dependent on the inclusion of a lid (an extra .25 in is required with a lid)
Pair with optional cast metal iron available in four finishes, Matte Black, Matte White, Stainless Steel and Champagne Bronze
Compact, surface-mount design blends in with design aesthetic and kitchen finishes
Can withstand heavy wear and tear and is corrosion/chemical resistant
Features tamper resistant shutters to protect against insertion of foreign objects
Smallest profile in the industry
Compared to the competition, it has a smaller diameter and less depth, taking up nearly 40% less space on and under the counter
Receptacle and tail assembly is suitable for install without a junction box
Legrand
IN
3.1200
IN
1
0.4300
LB
3.9000
IN
https://www.youtube.com/watch?v=s3c1isITQBQ
Pass & Seymour
General Purpose Switches
Color
Matte Black
Dimensions
3.7 in H x 2.3 in W x 3.6 in D
Material
Cast Metal
Mounting Type
Surface
Number of Outlets
1
