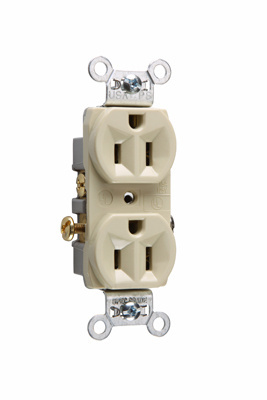

CR15-I - 15A 125V Commercial Spec-Grade Duplex Receptacle, Side Wire, Ivory
Description
Specifications
0.18lb
4.38mm
1.38mm
1.94mm
Pass & Seymour
USA
MX
RECEPTACLE BL STR 125VAC 15A 2 3 IVORY
Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly
0.032 in thick, brass, triple-wipe power contacts for lasting retention
Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
Accepts 14 - 10 AWG solid or stranded copper or copper-clad wire
Terminal compartments isolated from each other for positive conductor containment
Auto-ground clip assures positive ground
For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
Temperature Rise, Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
Legrand
4.3800
IN
1.9400
IN
1
0.1800
LB
1.3800
IN
http://www.youtube.com/watch?v=CjT4MIzB4sw
Pass & Seymour
RECEPTACLES & SURGE PROTECTORS
Amperage Rating
A
15
Terminal Type
Side wire
Type
Duplex
Voltage Rating
V AC
125
Color
Ivory
Dimensions
3.3 in H x 1.32 in W x 0.78 in D
Grade
Commercial/Residential
Material
Thermoplastic
NEMA Rating
NEMA 5-15R
Number Of Poles
2
Number Of Wires
3
Temperature Rating
deg C
-40 To 50
