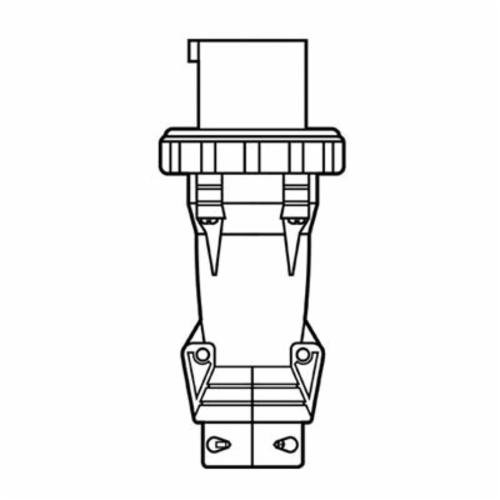

PS4100P12-W - Pin & Sleeve Watertight 100A 125V/250V Plug
Description
Specifications
3.9lb
5.88mm
15.12mm
Pass & Seymour
USA
US
PLUG SLV AND PIN 125/250VAC 100A 3 4 BK
Arrives ready to wire, with cord grip open and cable-ready
Terminal screws come backed out and ready to wire
Front and back body require no disassembly prior to assembly
Nylon construction for highimpact and corrosion resistance
Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity
Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated
Natural-rubber grommets provide watertight protection at cable entry
Combination-head screws for added convenience and quick installation
Revolutionary, hinged cord grip for durable performance and ease of installation
Legrand
IN
15.1200
IN
1
3.9000
LB
5.8800
IN
Pass & Seymour
PIN & SLEEVE DEVICES
Amperage Rating
A
100
Terminal Type
Screw
Type
3-Phase Watertight
Voltage Rating
V AC
125/250
Color
Black
Dimensions
IN
15
Frequency Rating
HZ
60 to 400
Grade
Commercial
Material
Thermoplastic
Number Of Poles
3
Number Of Wires
4
Temperature Rating
deg C
-50 To 80
