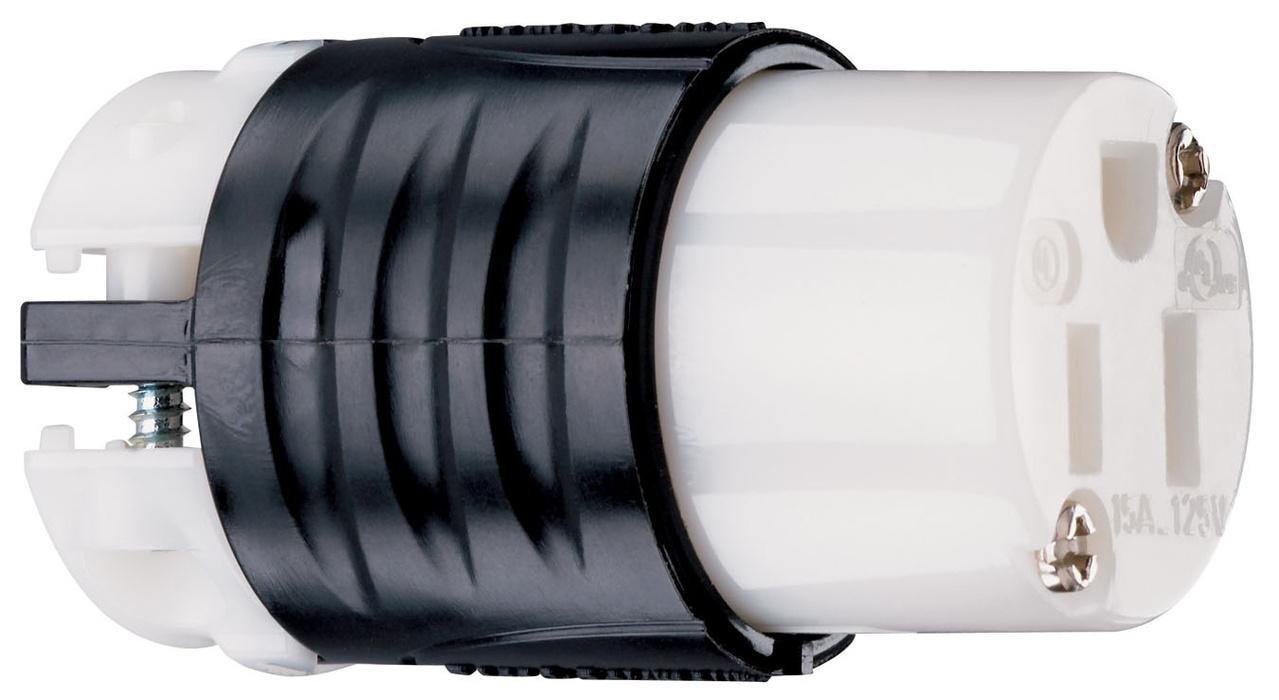

PS5269-X - 15A, 125V Extra-Hard Use Spec-Grade Connector, Black and White
Description
Specifications
0.17lb
3.13mm
1.75mm
1.75mm
Extra Hard Applications
Pass & Seymour
USA
MX
PLUG BL STR 125VAC 15A 2 3 BK/WHT NYL
Unit arrives completely ready-to-wire, cuts installation time significantly
Nylon housing provides impact and chemical resistance
Rugged two-piece cord grip provides more uniform cord retention
Internal dust shield keeps terminals free of contaminants
Tri-drive assembly screws are standard on all Specification Grade plugs and connectors
All 3-wire terminals located on the same plane, allows for quick wire termination from any angle
Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity
Cord-grip screws recessed to protect installer against screwdriver head slippage
Legrand
3.1300
IN
1.7500
IN
1
0.1700
LB
1.7500
IN
Pass & Seymour
PLUGS, CONNECTORS, INLETS, OUTLETS
Amperage Rating
A
15
Temperature Rating
deg C
-40 To 75
Terminal Type
Grounding Wire
Type
Wire Grounding
Voltage Rating
V AC
125
Color
Black/white
Cord Diameter
IN
0.23 to 0.72
Dimensions
1.516 in H x 1.516 in W x 2.638 in D
Grade
Commercial
Material
Nylon
NEMA Rating
NEMA 5-15R
Number Of Poles
2
Number Of Wires
3
