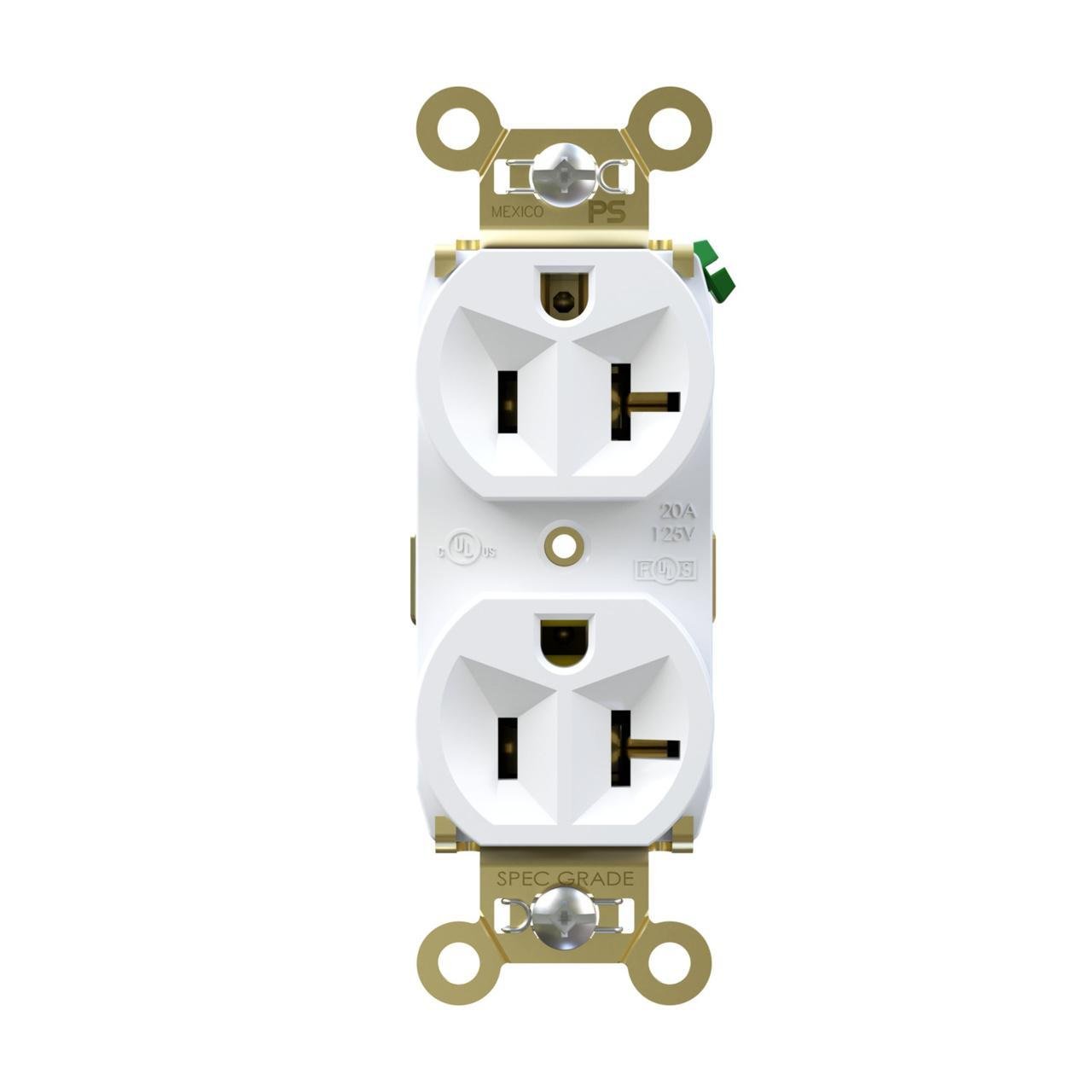

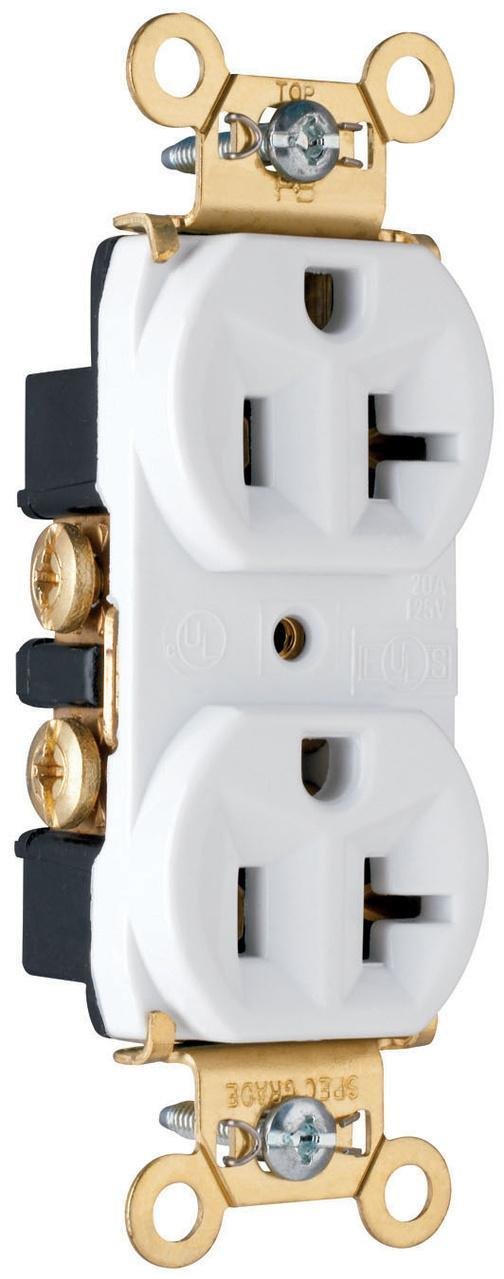

PS5362-W - 20A 125V Heavy Duty Spec-Grade Duplex Receptacle, Back and Side Wire, White
Description
Specifications
0.2lb
4.38mm
1.94mm
1.94mm
Healthcare, Education, Commercial and Institutional Applications
Pass & Seymour
USA
MX
RECEPTACLE BL STR 125VAC 20A 2 3 WHT
Heavy-duty, brass strap for added strength and ground conductivity
Strap tabs wrap around face to prevent strap from separating from face and back body
Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
High strength nylon face
Internal screw-pressure-plate back and side wired to accept 14 and 10 AWG stranded or solid copper or copper-clad conductors
Auto-ground clip assures positive ground
For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
Temperature Rise, Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
Legrand
4.3800
IN
1.9400
IN
1
0.2000
LB
1.9400
IN
Pass & Seymour
RECEPTACLES & SURGE PROTECTORS
Amperage Rating
A
20
Temperature Rating
deg C
-40 To 60
Terminal Type
Back/Side Wire
Type
Duplex Heavy Duty
Voltage Rating
V AC
125
Color
White
Dimensions
1.322 in L x 0.78 in W x 3.281 in H
Enclosure
NEMA WD-1/WD-6
Grade
Commercial/Specification
Material
Nylon/Thermoplastic
NEMA Rating
NEMA 5-20R
Number Of Poles
2
Number Of Wires
3
