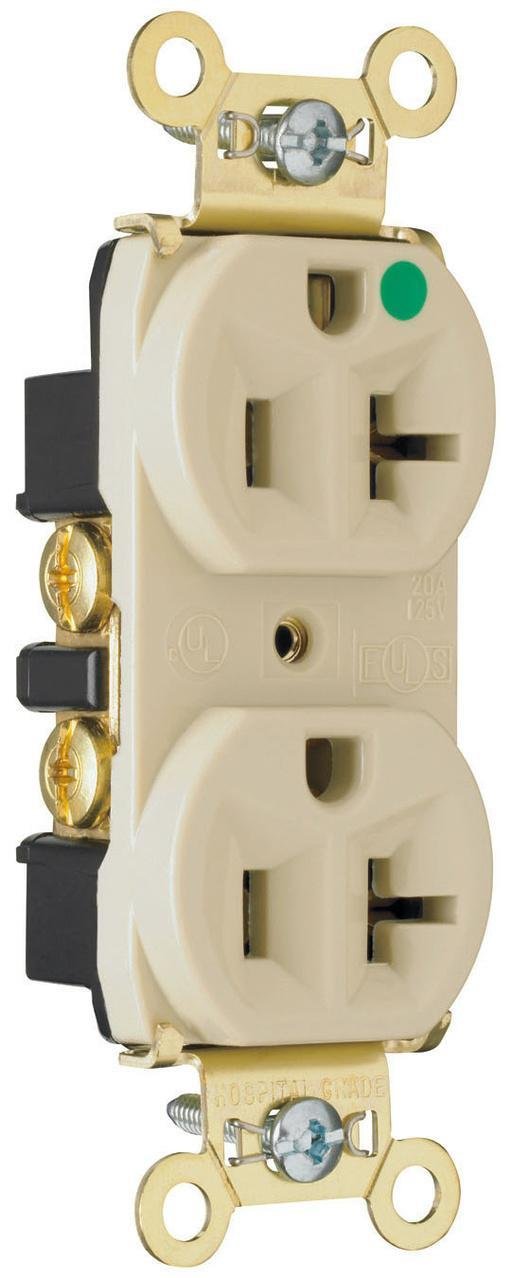

PS8300-HW - 20A 125V Heavy Duty Hospital-Grade Duplex Receptacle, Back and Side Wire, White
Description
Specifications
0.2lb
4.38mm
1.94mm
1.94mm
Healthcare, Education, Commercial and Institutional Applications
Pass & Seymour
USA
MX
RECEPTACLE BL STR 125VAC 20A 2 3 WHT
Heavy-duty, brass strap for added strength and ground conductivity
Strap tabs wrap around face to prevent strap from separating from face and back body
Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
Tri-drive brass terminal screws
Two back wire holes for more wiring flexibility
Auto-ground clip assures positive ground
Temperature Rise, Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
Legrand
4.3800
IN
1.9400
IN
1
0.2000
LB
1.9400
IN
Pass & Seymour
RECEPTACLES & SURGE PROTECTORS
Amperage Rating
A
20
Terminal Type
Back/Side Wire
Type
Duplex Heavy Duty
Voltage Rating
V AC
125
Color
White
Dimensions
1.322 in L x 0.78 in W x 3.281 in H
Grade
Commercial/Hospital
Material
Nylon/Thermoplastic
NEMA Rating
NEMA 5-20R
Number Of Poles
2
Number Of Wires
3
Temperature Rating
deg C
-40 To 60
