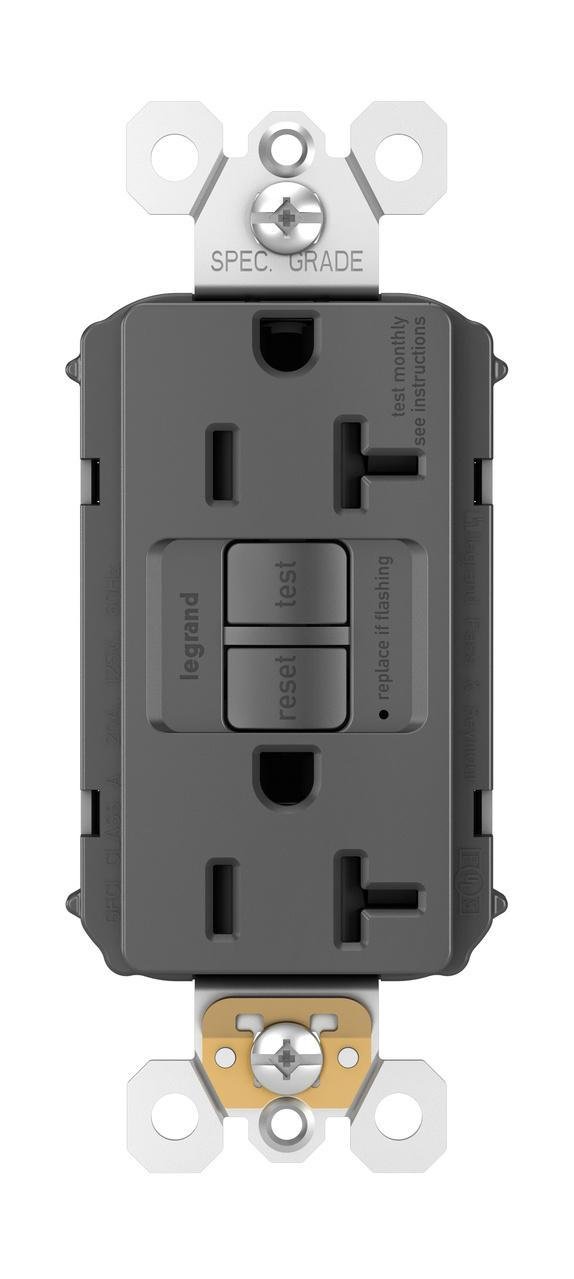

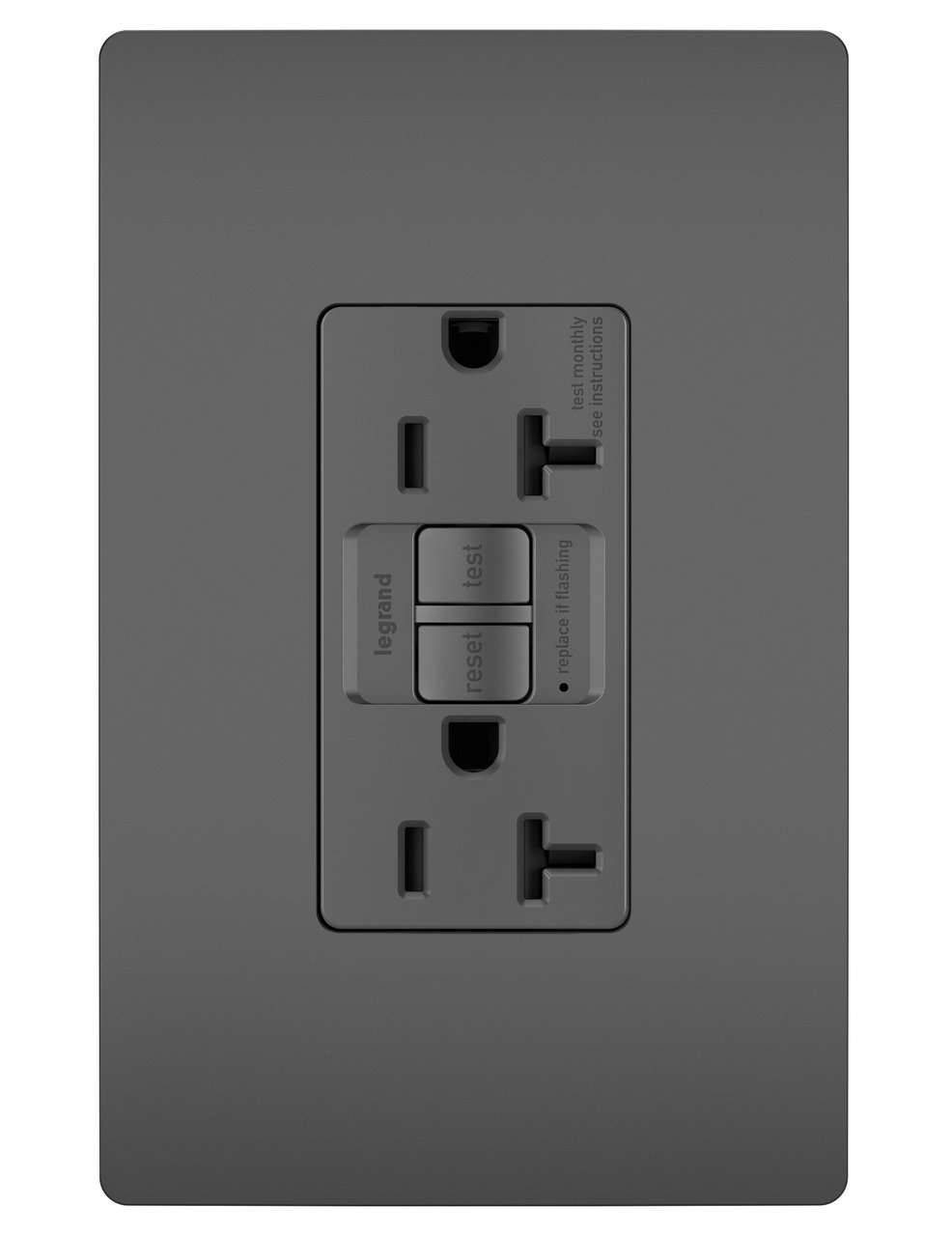

PT2097-BK - PlugTail® Specification Grade 20A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Black
Description
Specifications
0.22lb
4.69mm
2.95mm
1.73mm
Industrial, Retail, Health Care, Office, Education, Hospitality/Lodging, Institutional and Multiple Dwelling, Commercial and Residential Applications
Pass & Seymour
USA
CN
RECEPTACLE GFCI 125VAC 20A 2 3 BK
Conducts an automatic test every three seconds, ensuring it's always ready to protect
If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced
It also has our proven
SafeLock Protection feature - if critical components are damaged and protection is lost, power to the receptacle is disconnected
Faster, more reliable installation
Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections to PlugTail Connector
Zinc-plated steel mounting strap
Legrand
4.6900
IN
1.7300
IN
1
0.2200
LB
2.9500
IN
https://www.youtube.com/watch?v=wWKZUjGeZcA
Pass & Seymour
RECEPTACLES & SURGE PROTECTORS
Amperage Rating
A
20
Temperature Rating
deg C
-35 To 66
Terminal Type
PlugTail
Type
Duplex Self-Test
Voltage Rating
V AC
125
Color
Black
Dimensions
1.03 in L x 1.73 in W x 4.2 in H
Frequency Rating
HZ
60
Grade
Specification
Material
Thermoplastic
NEMA Rating
NEMA 5-20R
Number Of Poles
2
Number Of Wires
3
