Pass & Seymour

RH4FBL3-PTC - radiant® 0-10V LED/Fluorescent Dimmer

Category Lighting Dimmers

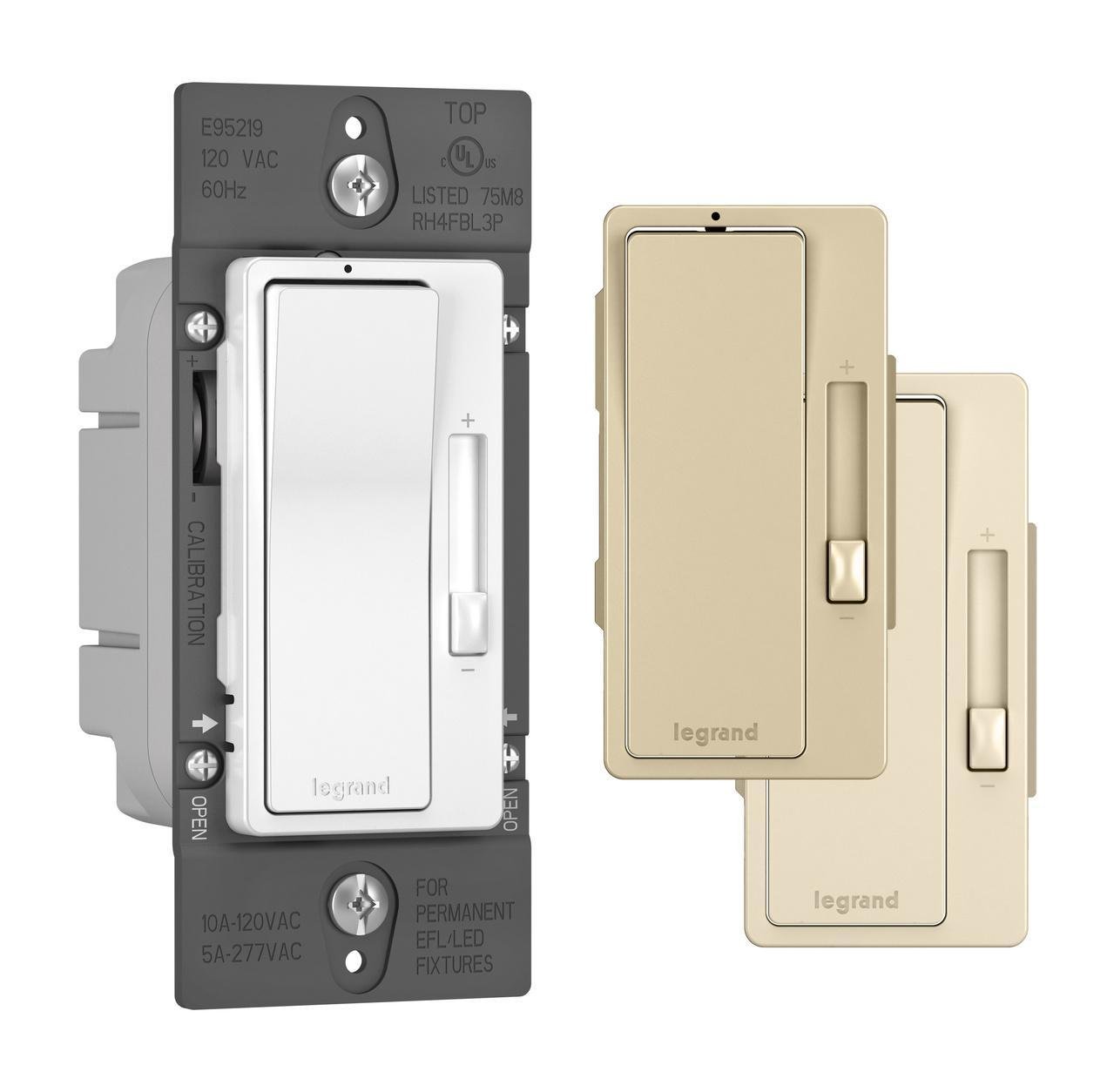

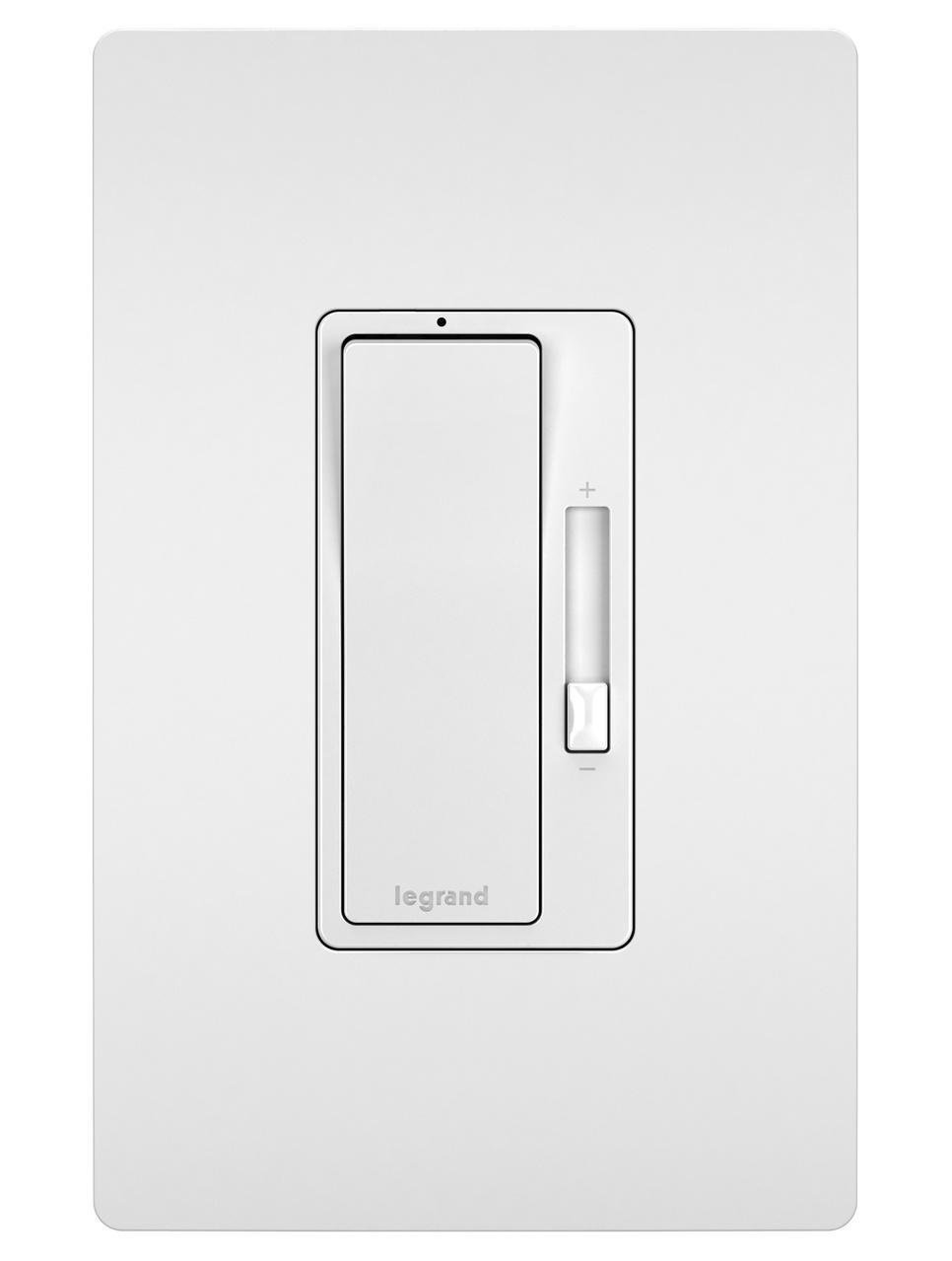

Picture of RH4FBL3-PTC - radiant® 0-10V LED/Fluorescent Dimmer
Pass & Seymour

RH4FBL3-PTC - radiant® 0-10V LED/Fluorescent Dimmer

Item Code: 962414
Category Lighting Dimmers
Manufacturer Legrand
Manufacturer Ref RH4FBL3-PTC

Catalog
Owners User Manual
Specification Sheet
Instruction Installation Manual
Watch video
Call for Availability
Add to Favorites
Compare

Description

Upgrade your space with precise dimming control and exceptional style. The radiant® 0-10V Dimmer works with low-voltage fluorescent and LED fixtures, allowing you to set the perfect light level for your space with efficiency and ease. Part of the radiant® Collection, it also features clean lines and smooth control for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Specifications

Weight

0.4lb

Height

2mm

Width

4.25mm

Length

2.75mm

Amperage Rating

5 A

Brand

Pass & Seymour

Category

LIGHTING DIMMERS

Color

Tri-color

Control

Paddle/Slide

Dimensions

1-1/4 in L x 1-3/4 in W x 4-1/2 in H

Frequency Rating

60 Hz

Lamp Type

Fluorescent/LED

Material

Thermoplastic

Mounting Type

Surface

Number Of Poles

1

Operation Mode

3-way

Temperature Rating

0 To 40 Deg C

Terminal Type

Screw

Type

3-Way Preset

Voltage Rating

120/277 V AC
