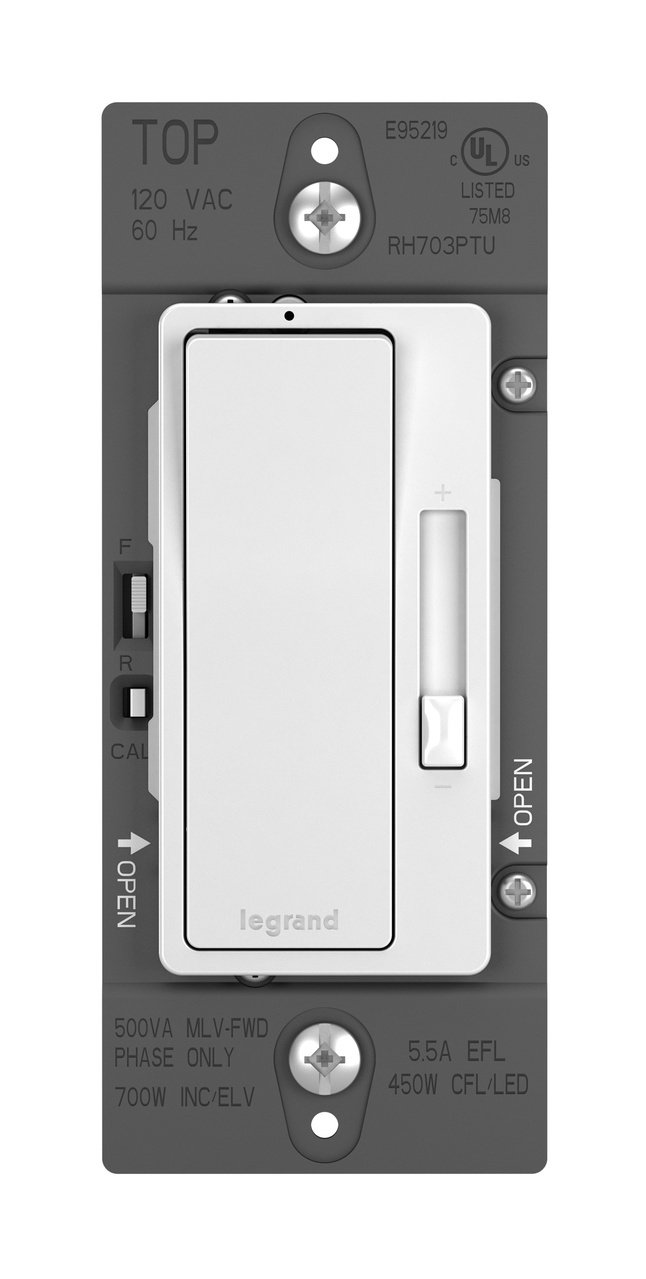

RH703-PTUW - radiant® Tru-Universal Single Pole/3-Way Dimmer, White
Description
Specifications
0.24lb
4.25mm
2mm
2.75mm
Residential Applications
Pass & Seymour
USA
CN
SWITCH DMR 120VAC 1 3-WAY WHT
Self-calibrates when you select your fixture's lighting type, automatically setting the appropriate minimum voltage to eliminate flicker and poor performance
Low-profile paddle switch offers smoother On/Off control, while a separate, ergonomic slider allows you to adjust light levels with precision
Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark
Constant memory features returns lights to their previous level when turning back on or after a power outage
Reducing the maximum wattage a dimmer can handle
Features durable, high-impact resistant thermoplastic construction
More color options available to fit any style, including finishes to match current hardware and lighting trends

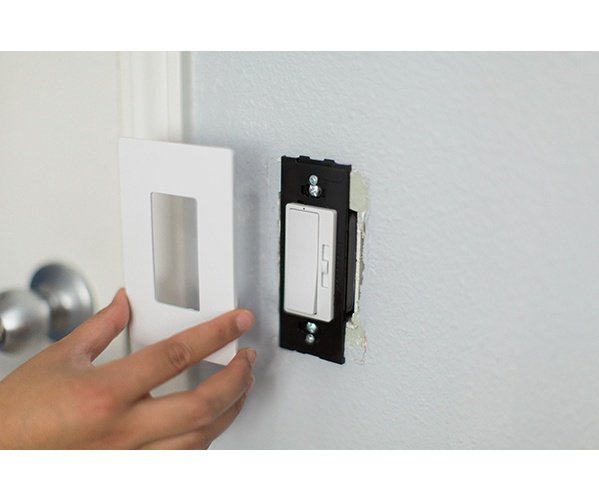

Complete the look with a sleek, screwless radiant Wall Plate, and coordinate with other designer switches and outlets available from the radiant Collection
Legrand
4.2500
IN
2.7500
IN
1
0.2400
LB
2.0000
IN
https://www.youtube.com/watch?v=CjpgAk7vct0
Pass & Seymour
LIGHTING DIMMERS
Color
White
Temperature Rating
deg C
0 To 40
Terminal Type
Screw
Type
3-Way Preset Universal
Voltage Rating
V AC
120
Control
Paddle/Slide
Dimensions
1-1/4 in L x 1-3/4 in W x 4-1/2 in H
Frequency Rating
HZ
60
Material
Thermoplastic
Mounting Type
Surface
Number Of Poles
1
Operation Mode
3-way
Power Rating
W
700
