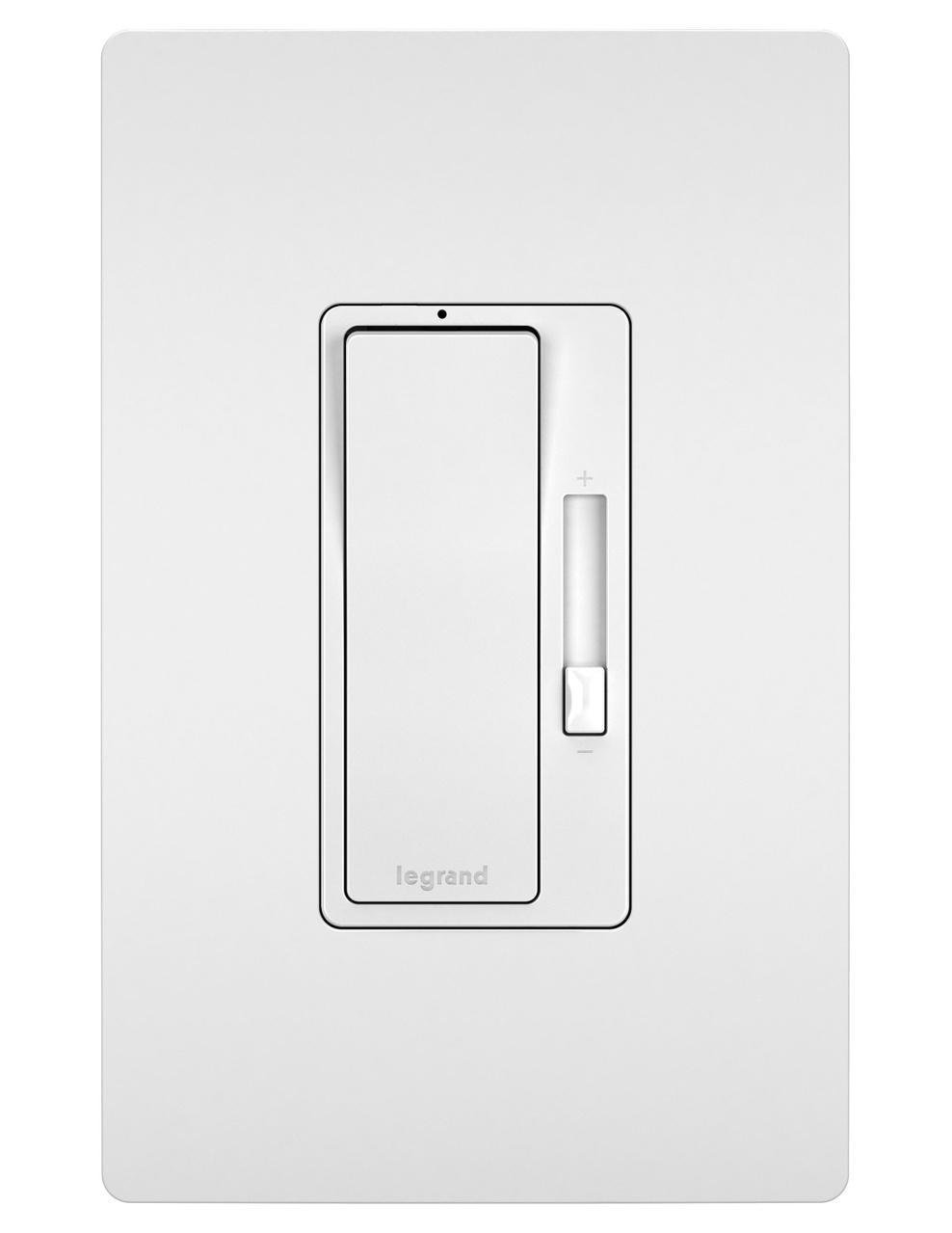

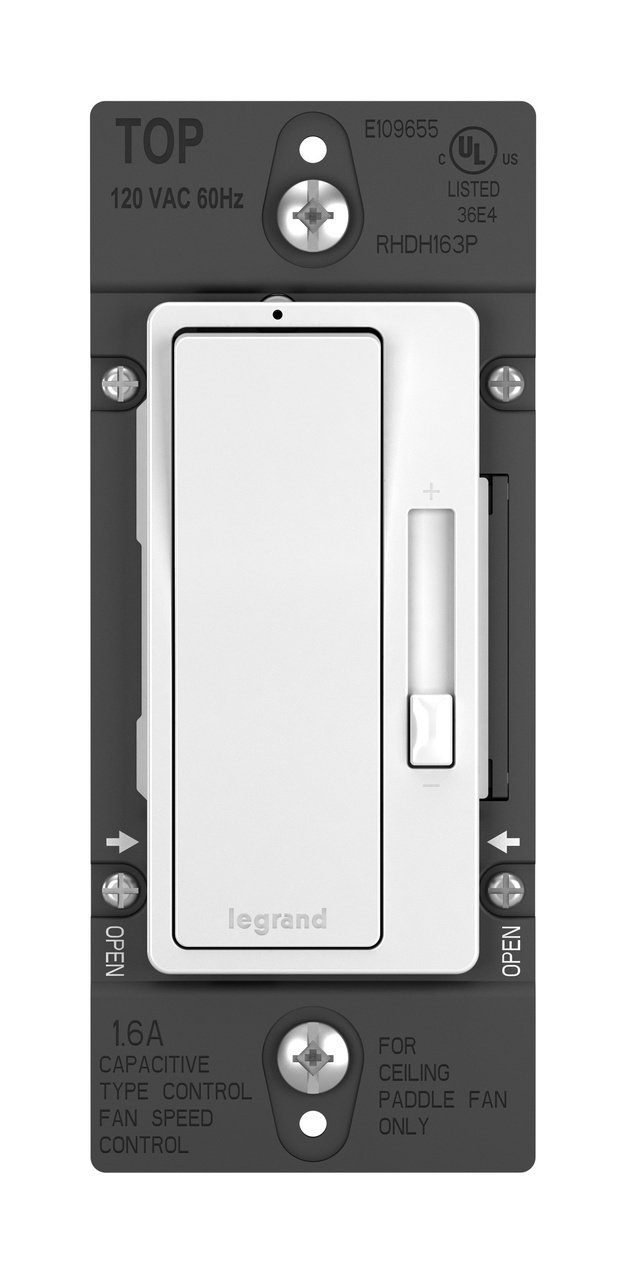

RHDH163-PW - Fan Speed Dimmer, White
Description
Specifications
0.3
4.25
2
2.75
Residential, Office, Multiple Dwelling, Hospitality/Lodging Applications
Pass & Seymour
USA
CN
CONTROL SP FAN 120VAC 1.6A 3-SP RTRY WHT
Designed to virtually eliminate the motor's hum for quieter use
Installs easily in place of a standard light or fan control switch
Rated for a max load of 1.6A
Returns the fan to its previous level after a power failure
Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark
More color options available to fit any style
Complete the look with a sleek, screwless radiant Wall Plate, and coordinate with other designer switches and outlets available from the radiant Collection
Legrand
4.2500
IN
2.7500
IN
1
0.3000
LB
2.0000
IN
https://www.youtube.com/watch?v=CjpgAk7vct0
Pass & Seymour
FAN SPEED SWITCHES & CONTROLS
Amperage Rating
A
1.6
Type
3-Pole 3-Way
Voltage Rating
V AC
120
Color
White
Dimensions
1-3/4 in W x 1-1/4 in D x 4-1/4 in H
Environmental Conditions
Indoor Only
Material
Polycarbonate/Thermoplastic
Mounting
Wall
Operational Mode
3-Speed
Temperature Rating
deg C
0 To 40
Terminal Type
Back Wire
