RHL153PW - radiant® LED Advanced 150W Single Pole 3-Way Dimmer, White
Description
Specifications
0.24
5.19
2
2
Pass & Seymour
USA
CN
(1) Wall Plate and (1) Steel Frame
DMR SW 120V 1.25A 1 PRESET ON/OFF WHITE

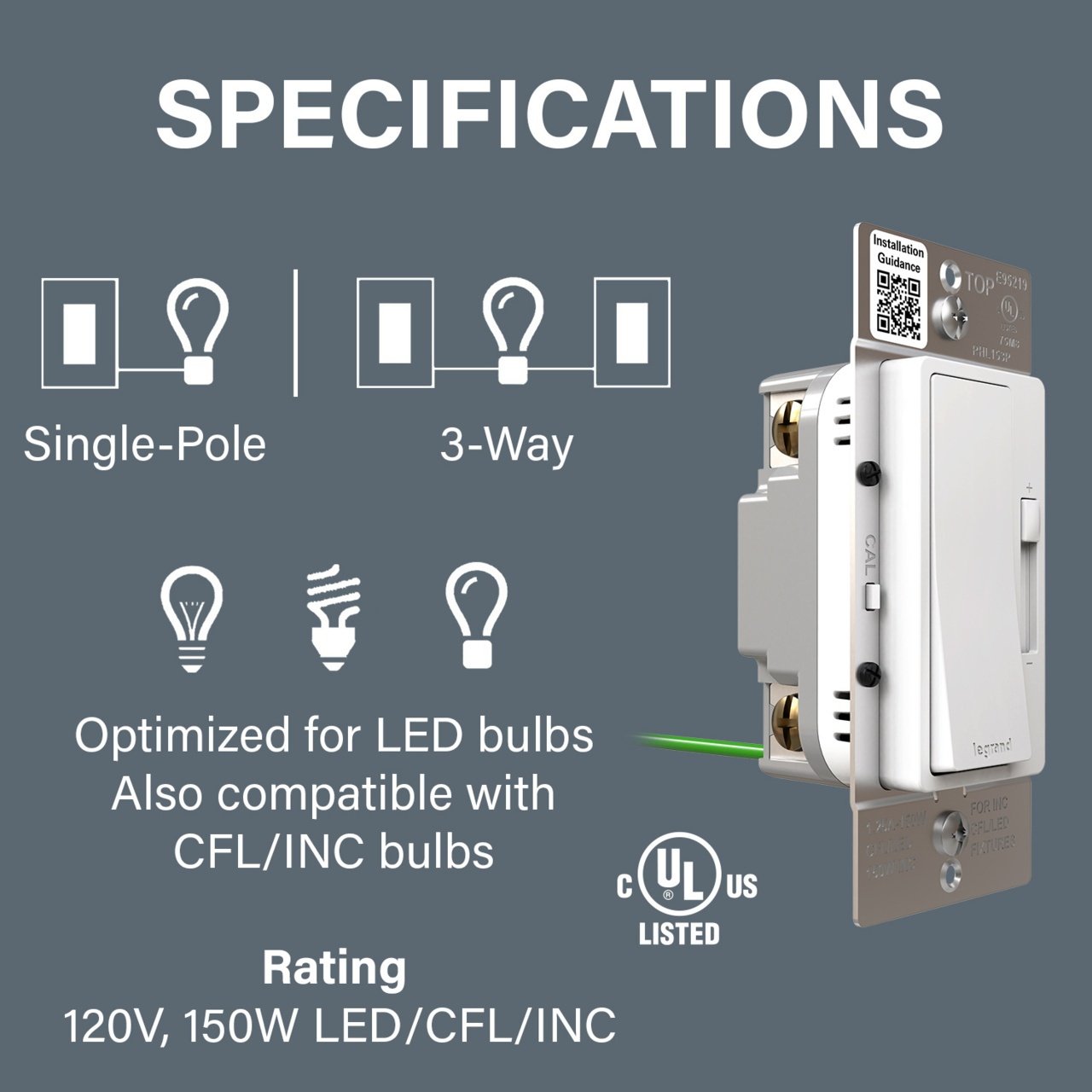

Specifically designed for use with dimmable LED bulbs and fixtures up to 150W at 120VAC
Optimized to work out of the box and provide flicker-free control of LEDs
Not intended for use with 0-10V, Magnetic Low Voltage and Electronic Low Voltage Drivers
Advanced dimming technology maximizes LED compatibility to provide a full range of control while helping to eliminate most common LED dimming issues

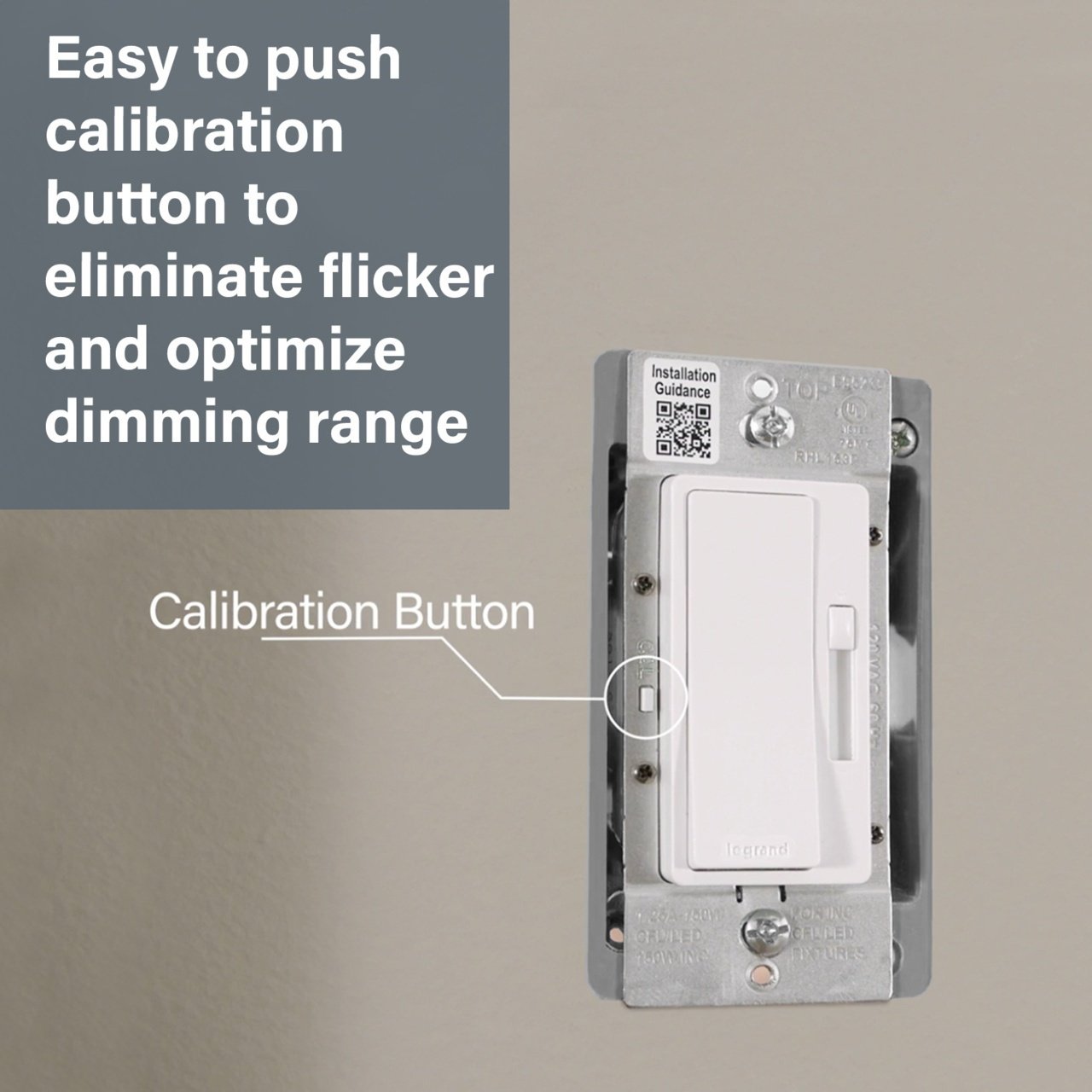

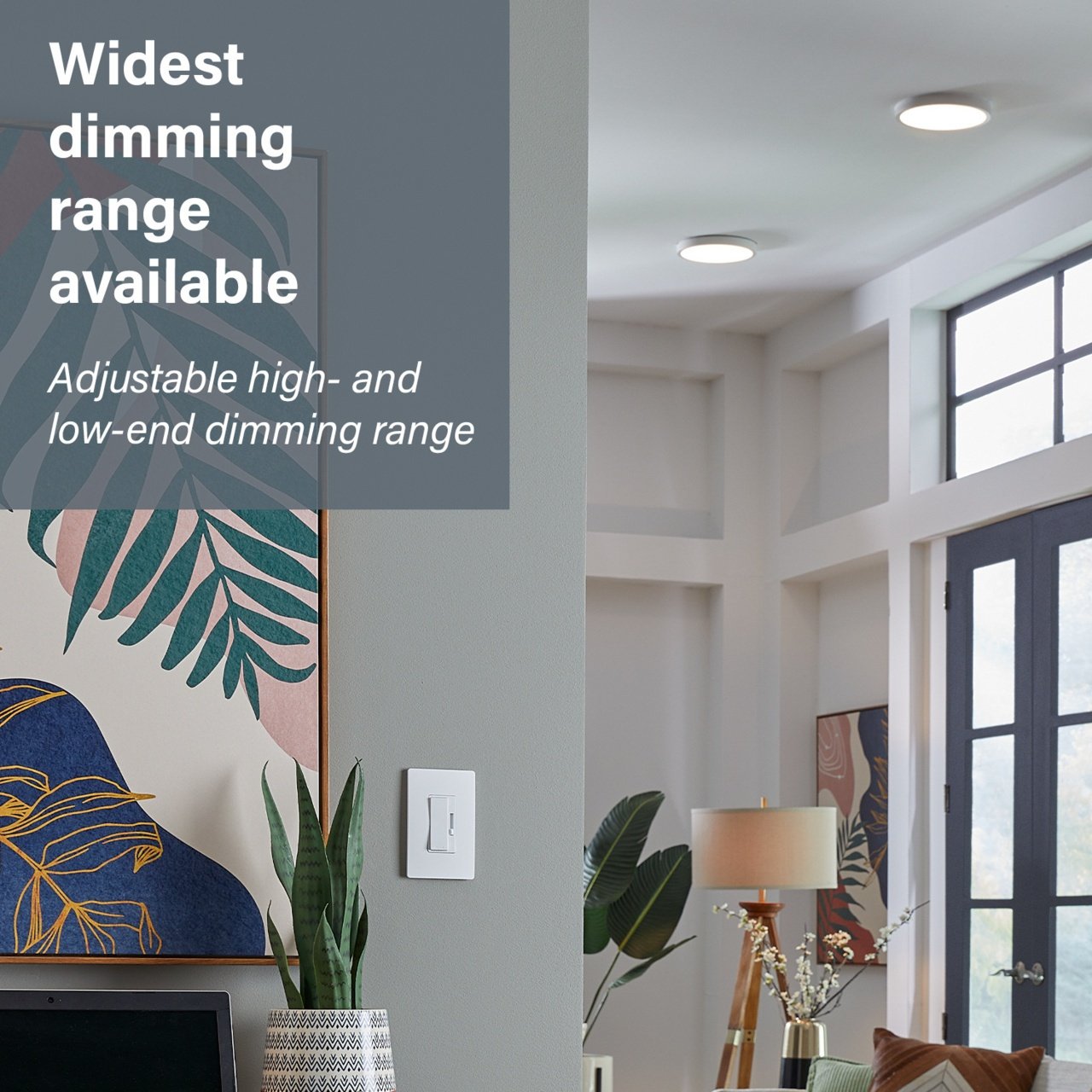

Simple high-and-low end dimming limit adjustability with easy-to-push calibration button to meet all lighting preferences and eliminate LED flickering
Optional LED Burst Mode setting can be activated as needed to help eliminate or reduce LED turn on delays and pop-ons
Back-wire screw and pressure plate terminations for easy and reliable wiring with ground wire lead and wire nut provided
QR code provided on front face of device to provide easy access to installation guides and videos
Low-profile paddle switch offers smoother on/off preset control, while separate, ergonomic slider allows for precise adjustment of light levels
Constant memory feature returns light levels and user adjustments to return to previous settings following a power failure or outage
Legrand
5.1900
IN
2.0000
IN
1
0.2400
LB
2.0000
IN
https://www.youtube.com/watch?v=qj7rGG21Yas
Pass & Seymour
LIGHTING DIMMERS
Amperage Rating
A
1.25
Power Rating
W
150
Start Type
3-way/single-pole
Terminal Type
Back Wire/Pressure Plate/Screw
Type
Decorator
Voltage Rating
V
120
Color
White
Control
Slider
Dimensions
4.19 in H x 1.74 in W x 1.46 in D
Lamp Type
Led
Material
Thermoplastic/Steel
Mounting Type
Wall
Number Of Poles
1
Operation Mode
Preset ON/OFF
