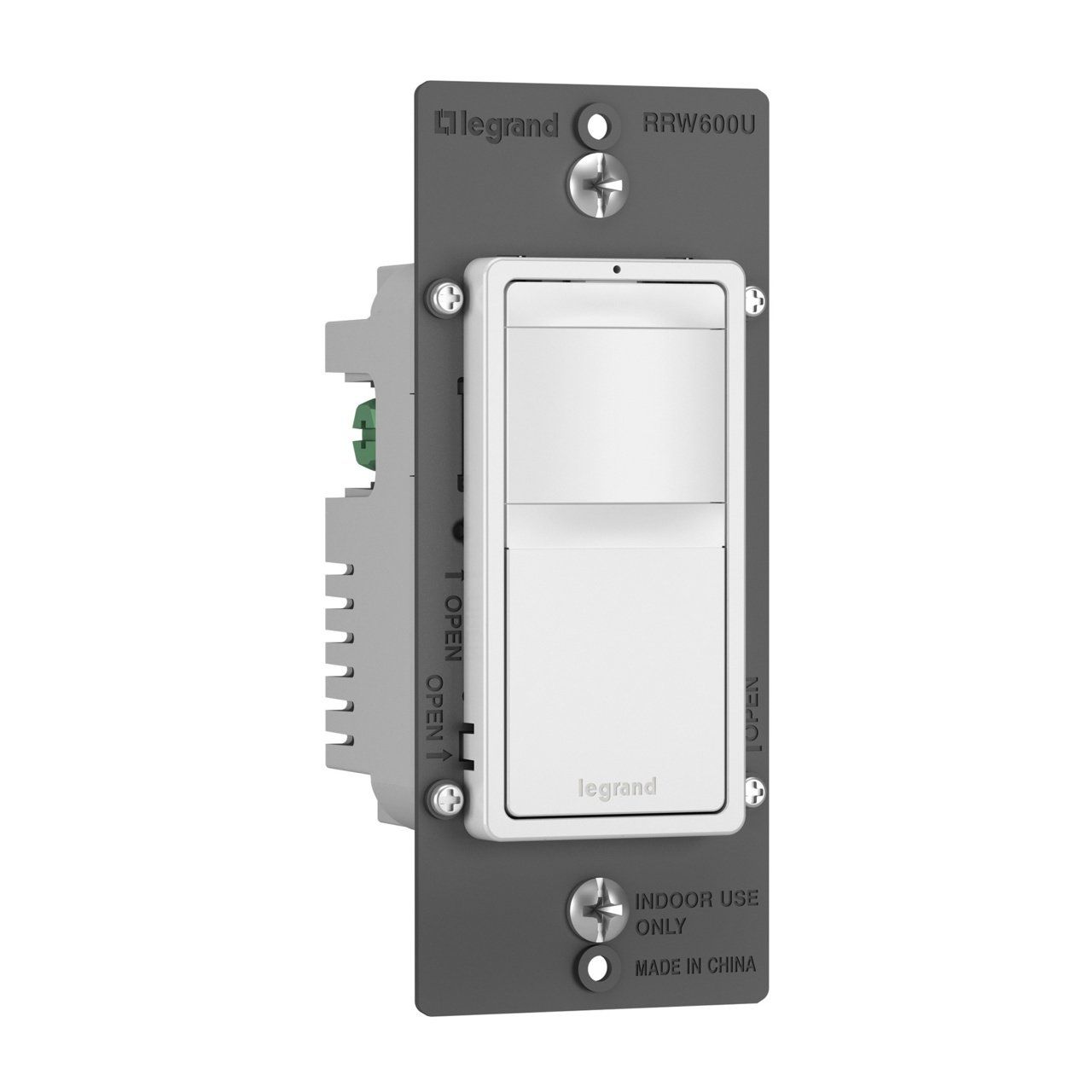

RRW600UTC - Radiant Single Pole 3-Way Occupancy Sensor
Description
Specifications
0.3
4.25
2
2.75
Residential Applications
Pass & Seymour
USA
CN
(3) Interchangeable Face
SENSOR OCCUPANCY 120VAC 600SQ-FT 180DEG

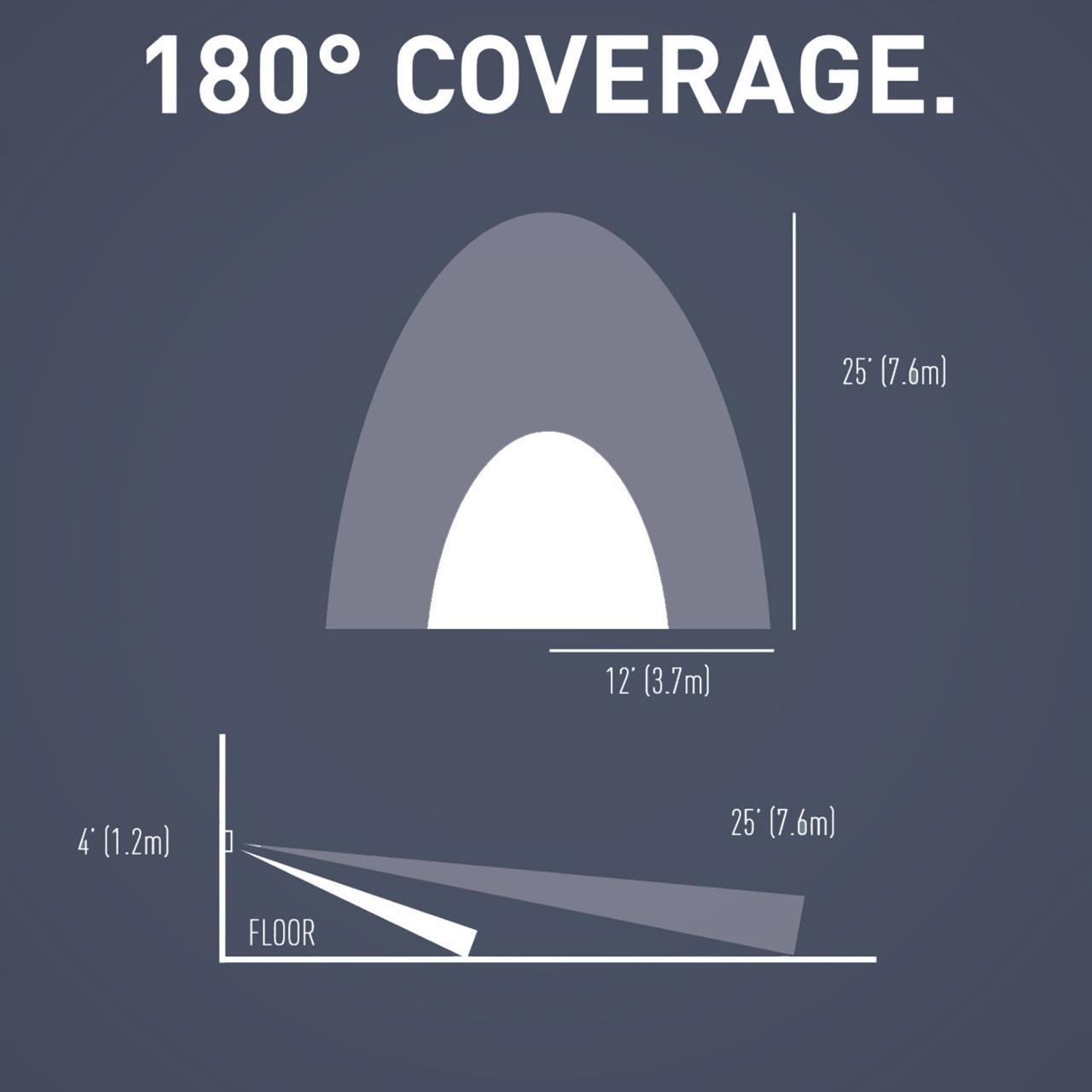

Passive infrared (PIR) sensor switch technology with 180 deg coverage up to 600 sq ft Rated for up to 600W (5A) of LED lighting
Works with virtually any bulb/fixture, including, LED, incandescent, fluorescent, compact fluorescent (CFL), magnetic low-voltage (MLV) and electronic low-voltage (ELV), 1/6 hp
Turn the light on when you enter, and let it turn itself off automatically after you leave for true convenience
Perfect for bathrooms, hallways, closets, garages, and more
Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark
Features an adjustable time delay to off after no motion is detected
Delay settings range from 30 seconds to 20 min after the room is vacated (default 5 min delay)
Auto ON/Auto OFF functionality as default
Easily configurable to Manual ON/Auto OFF to meet any need or preference in the home
Replace any basic light or fan switch in 15 min or less
Supports single pole and multi-location installs
No neutral required

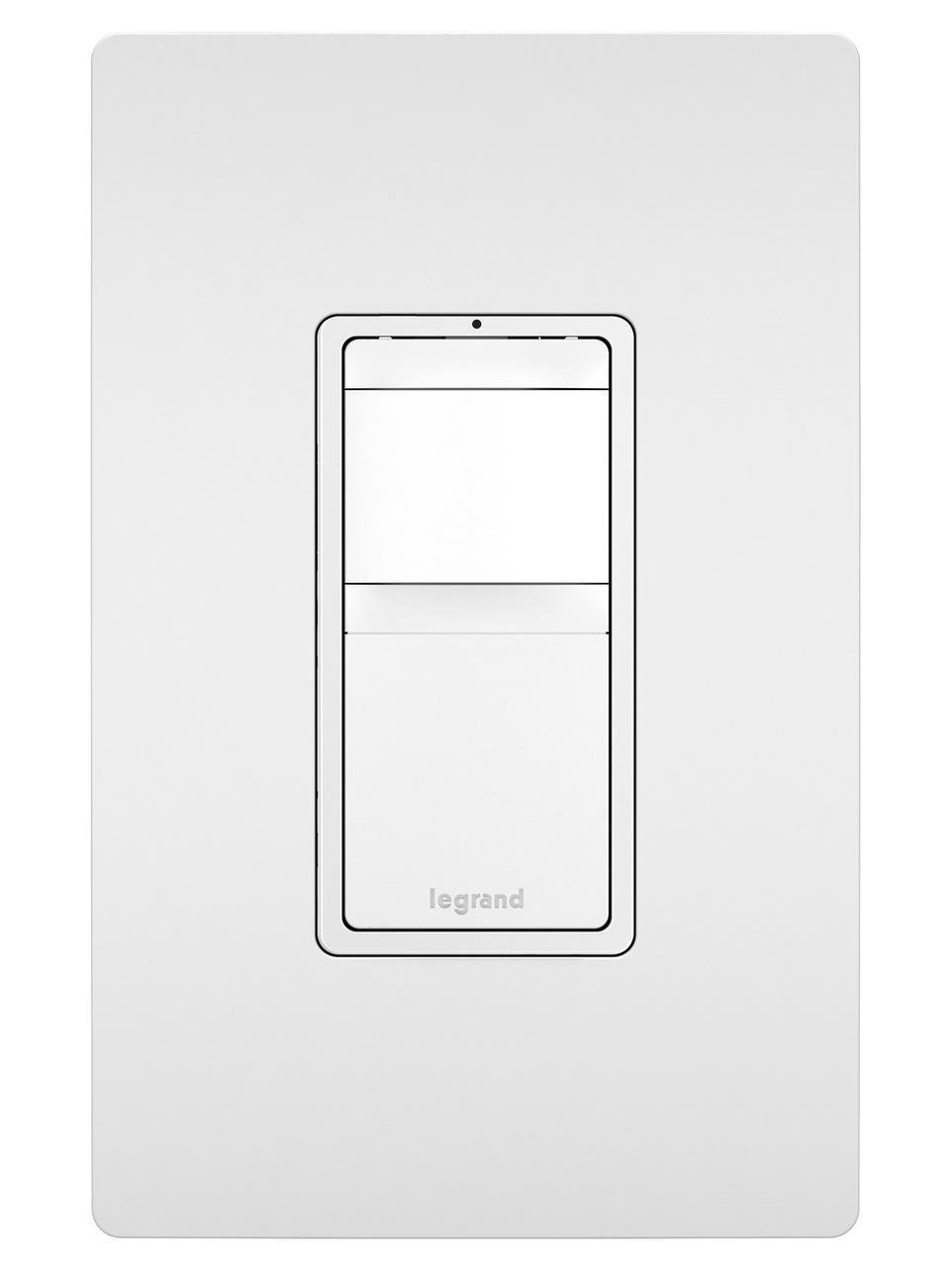

Complete the look with a sleek, screwless radiant Wall Plate, and coordinate with other designer switches and outlets available from the radiant Collection
More color options available to fit any style, including finishes to match current hardware and lighting trends
Legrand
4.2500
IN
2.7500
IN
1
0.3000
LB
2.0000
IN
https://www.youtube.com/watch?v=CjpgAk7vct0
Pass & Seymour
LIGHTING OCCUPANCY SENSORS
Color
Tri-color
Type
1-Pole 2-Wire 3-Way
Viewing Angle
deg
180
Voltage Rating
V AC
120
Control Output
Automatic On/Off/Manual On
Coverage
sq-ft
600
Dimensions
1.69 in W x 1.88 in D x 2.63 in H
Lamp Type
CFL/Fluorescent/LED
Mounting Type
Wall
Power Rating
W
600
Response Frequency
HZ
60
Time Delay
30 s to 30 min
