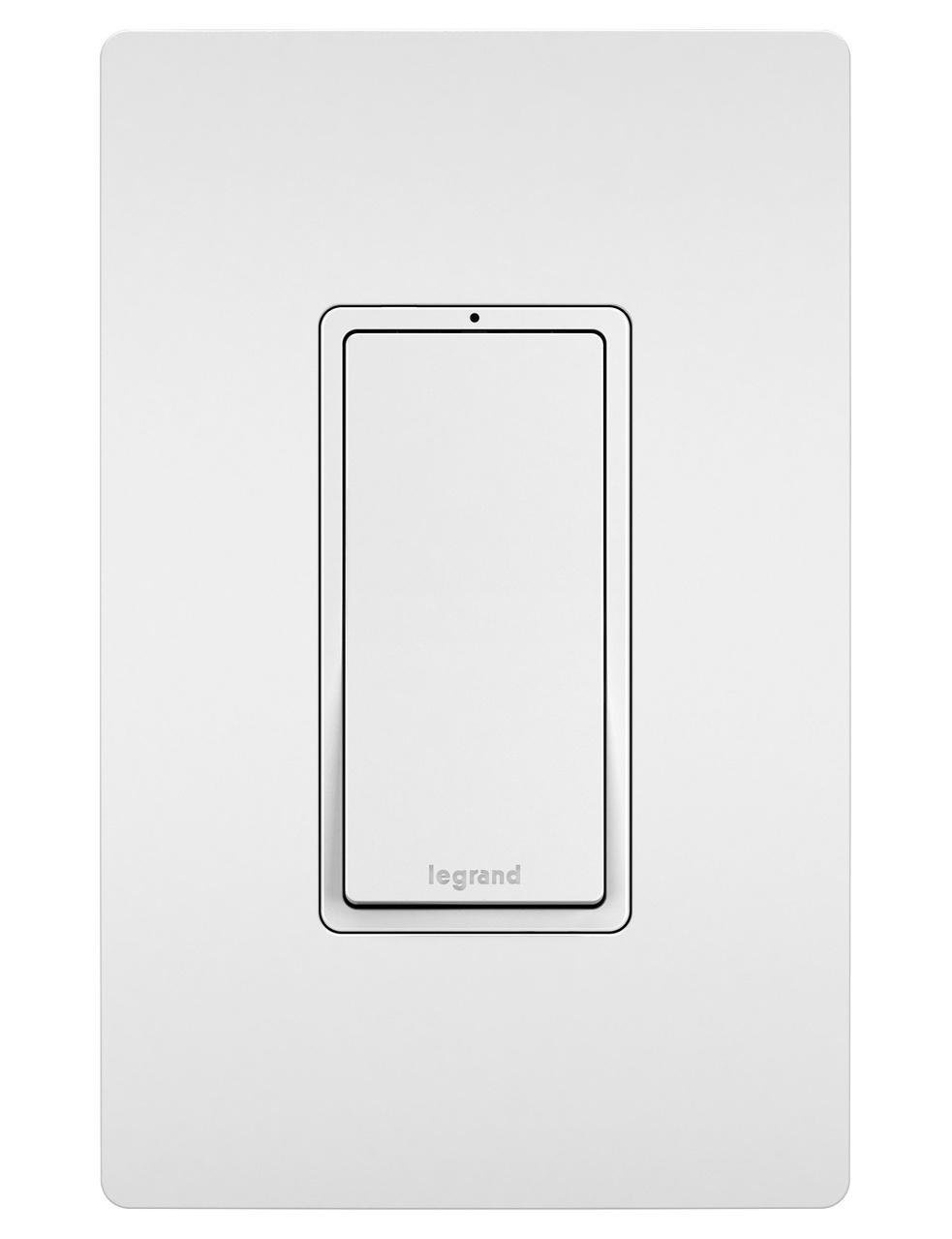

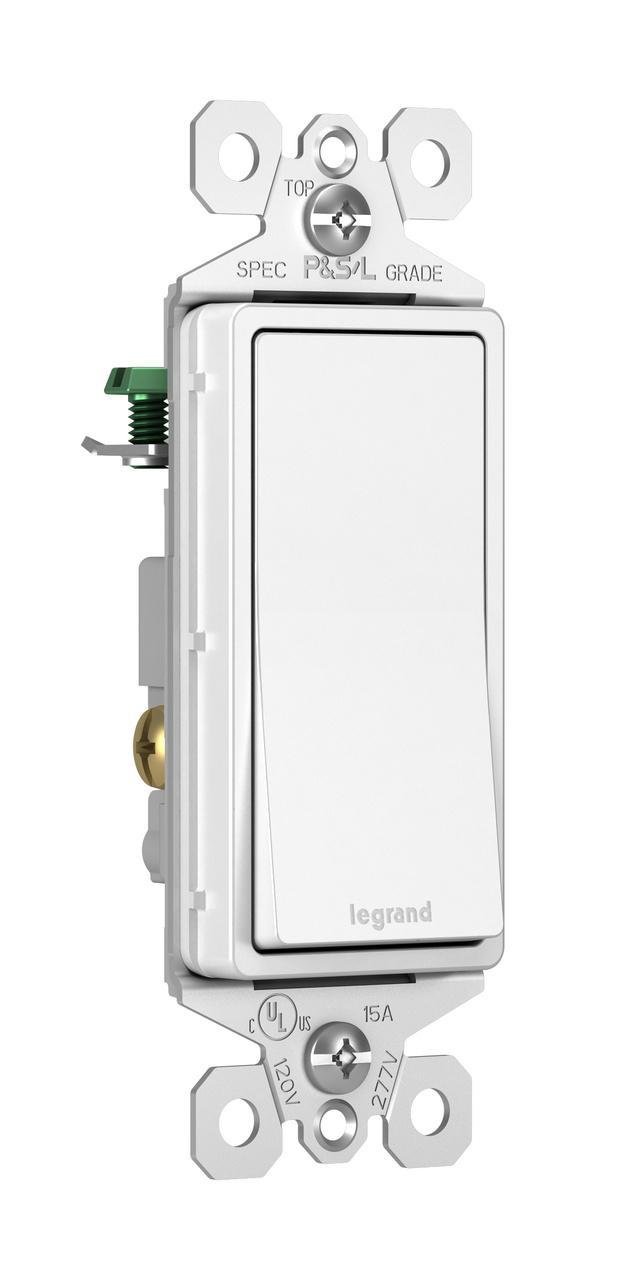

TM870STMWCC6 - Decorator Momentary Contact Switch, White
Description
Specifications
0.17lb
4.25mm
1.5mm
1.63mm
Commercial and Residential Applications
Pass & Seymour
USA
MX
SWITCH DECORATOR 120/277VAC 15A
High-impact resistant thermoplastic construction
Narrow back body leaves more room for wires in the box
Smooth, quiet paddle action
Complete the look with a sleek, screwless radiant Wall Plate, and coordinate with other designer switches and outlets available from the radiant Collection
Legrand
4.2500
IN
1.6300
IN
1
0.1700
LB
1.5000
IN
https://www.youtube.com/watch?v=CjpgAk7vct0
Pass & Seymour
General Purpose Switches
Action
Momentary On/Off
Number Of Poles
1
Operating Cycles
Cycles
50000
Terminal Type
Threaded
Voltage Rating
V AC
120/277
Actuator
Rocker
Amperage Rating
A
15
Color
White
Dimensions
1.43 in W x 1.27 in D x 4.19 in H
Enclosure
NEMA WD-1/WD-6
Environmental Conditions
-40 to 115 deg C Operating Temperature
Material
Thermoplastic
Mounting
Wall
