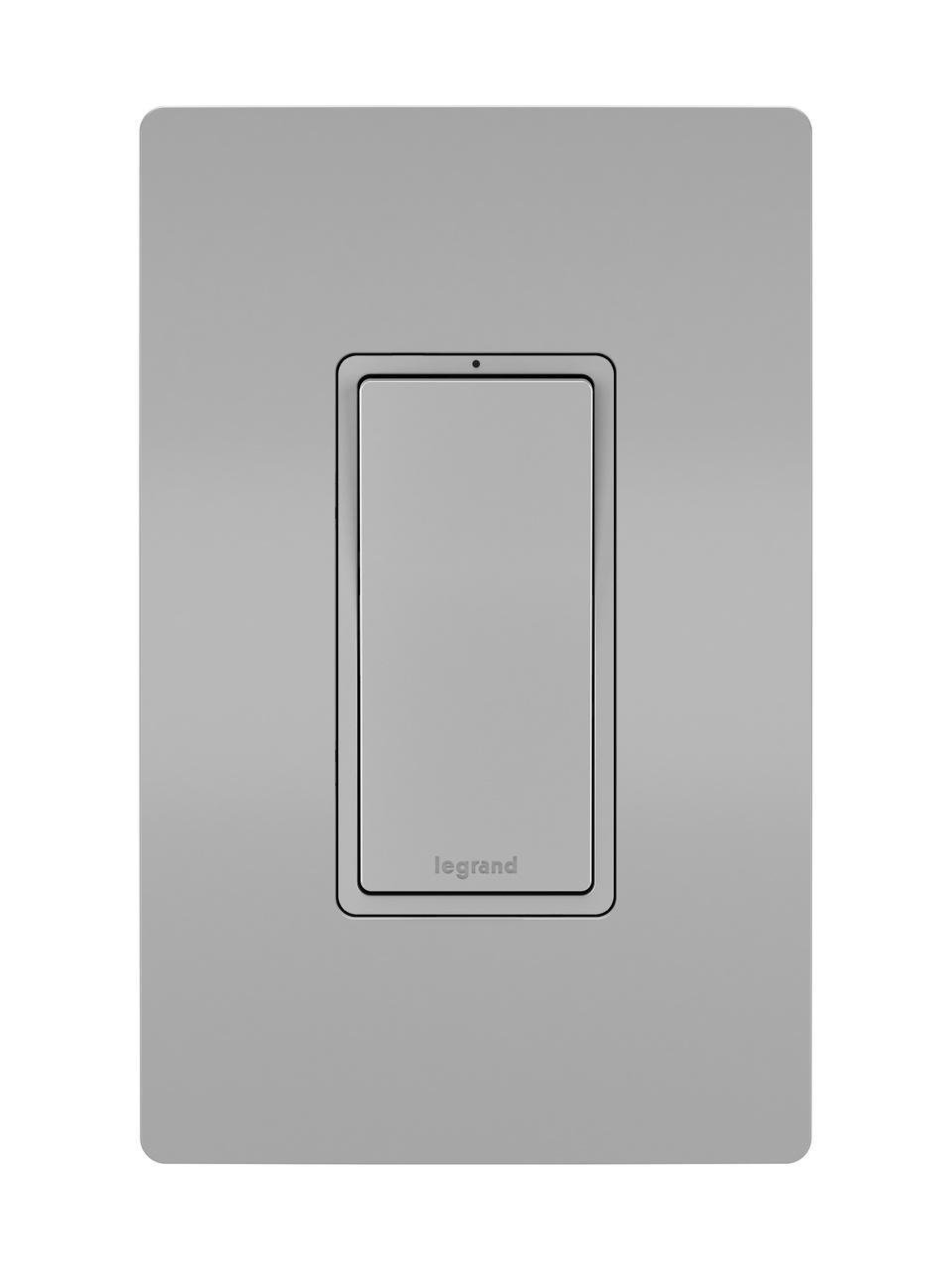

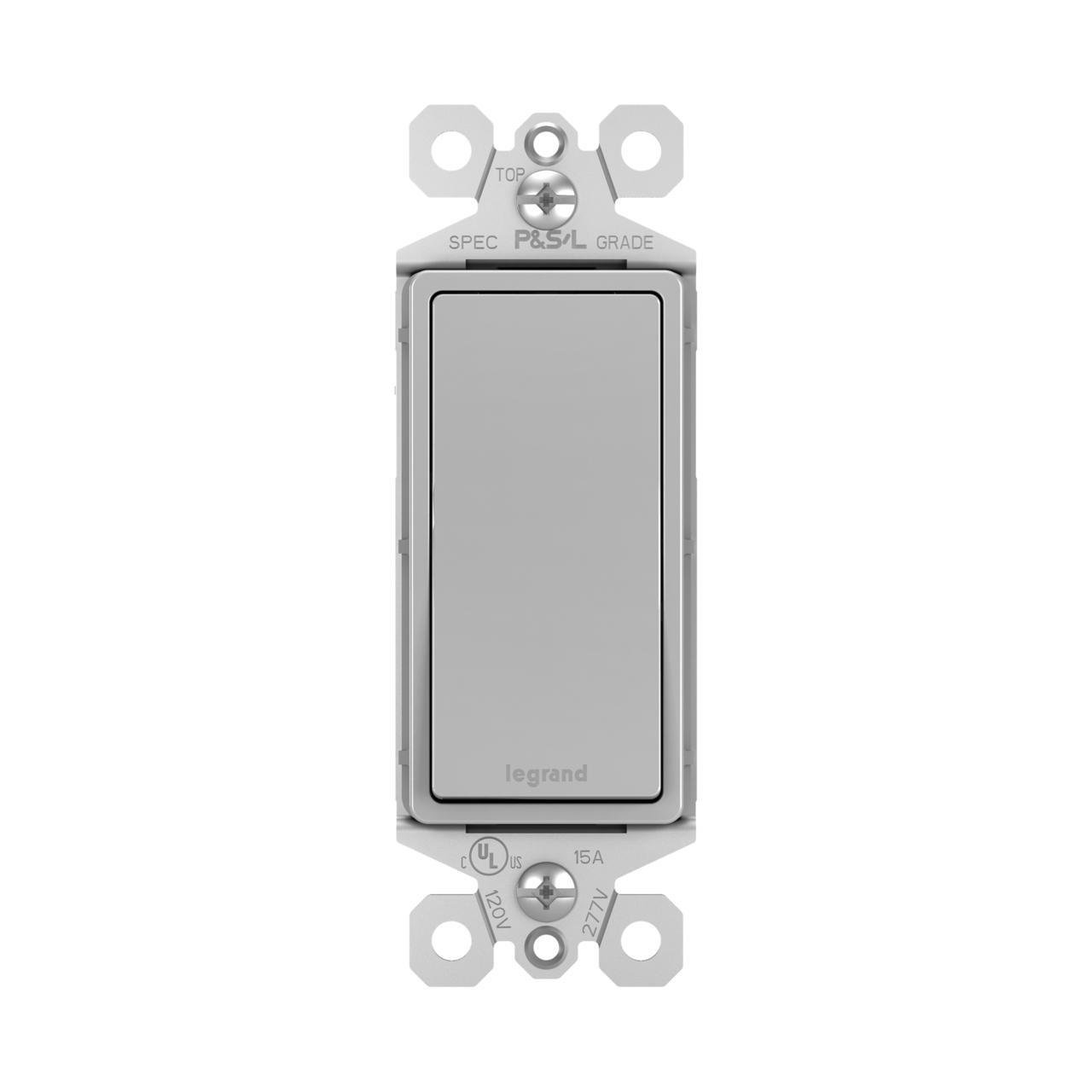

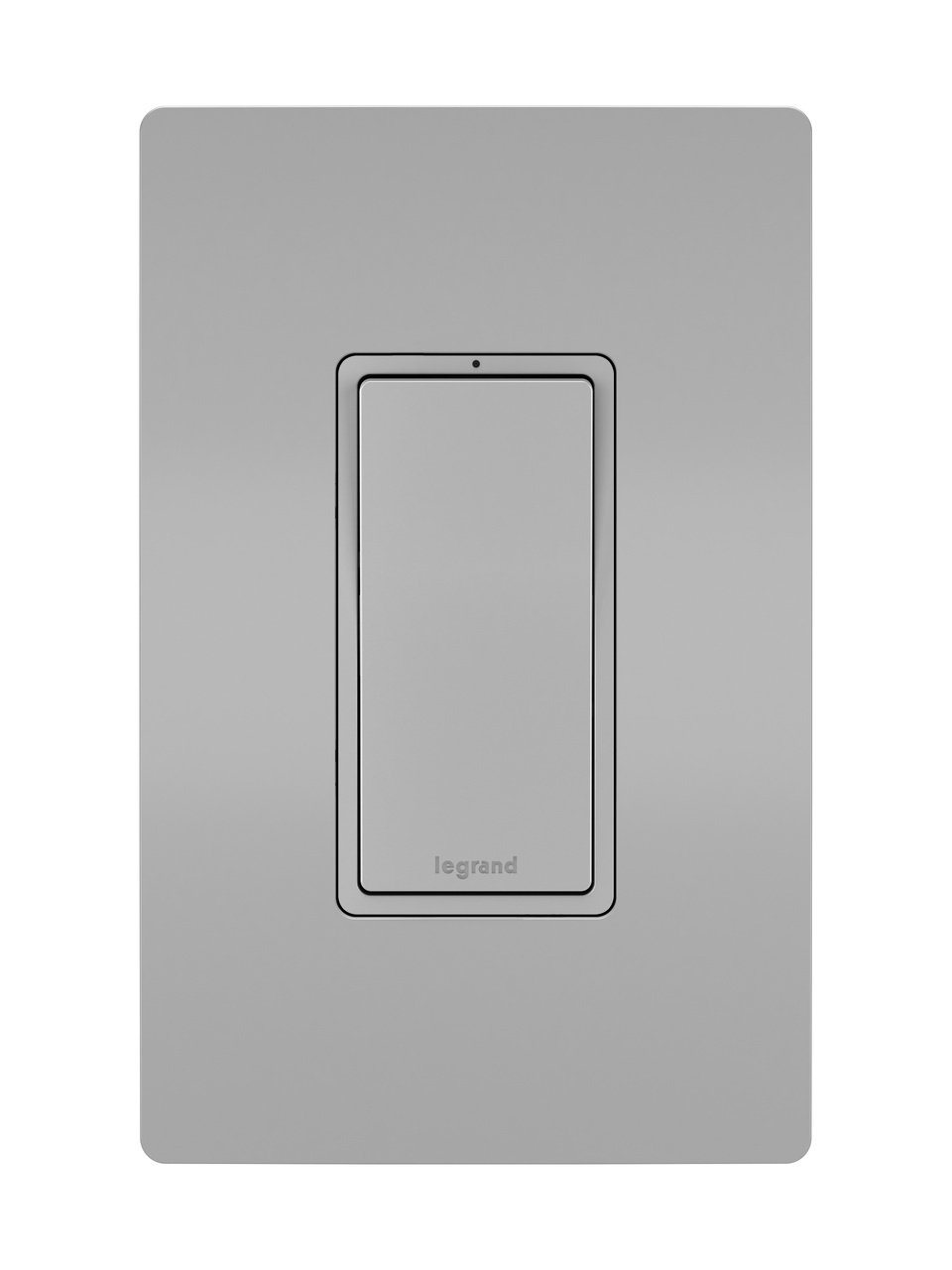

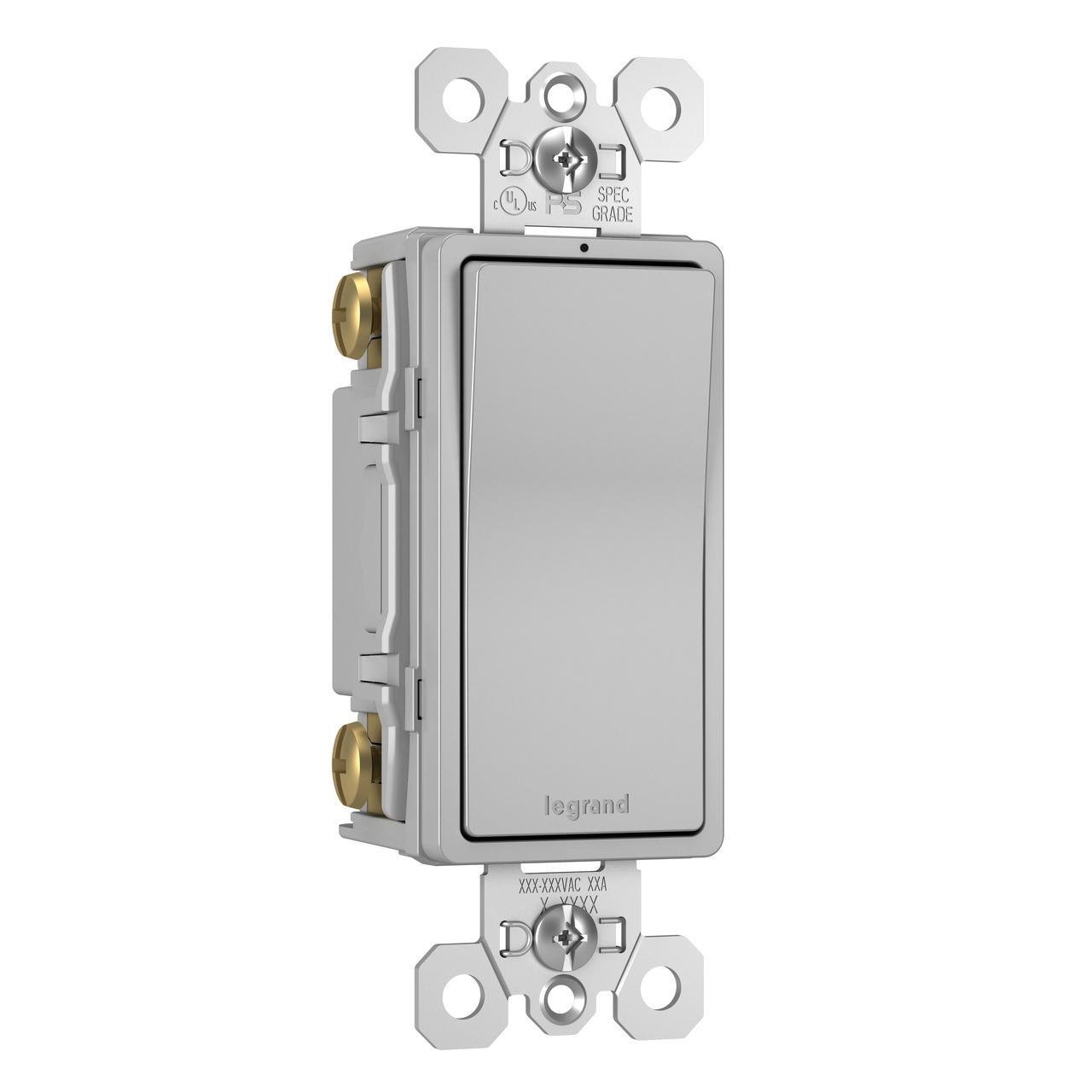

TM874GRY - radiant® 15A 4-Way Switch
Description
Specifications
0.27lb
4.19mm
1.69mm
2.06mm
Residential Applications
Pass & Seymour
USA
MX
SWITCH DECORATOR 120/277VAC 15A
Replaces any standard switch with ease, in as little as 10 min
Uses a paddle switch for smoother control with a low-profile aesthetic
Features durable, high-impact resistant thermoplastic construction
Designed to install easily with a narrower back body and captivated mounting screws
More color options available to fit any style, including finishes to match current hardware and lighting trends
Complete the look with a sleek, screwless radiant Wall Plate, and coordinate with other designer switches and outlets available from the radiant Collection
Back and side wire termination options accepts 14 - 10AWG solid and stranded wires, Copper-clad aluminum, and copper wire
Legrand
4.1900
IN
2.0600
IN
1
0.2700
LB
1.6900
IN
https://www.youtube.com/watch?v=CjpgAk7vct0
Pass & Seymour
General Purpose Switches
Actuator
Paddle/Rocker
Operating Cycles
Cycles
50000
Type
4-Way Self-Grounding
Voltage Rating
V AC
120/277
Amperage Rating
A
15
Color
Gray
Connection
Back/Side Wired
Dimensions
1.43 in W x 1.27 in D x 4.19 in H
Environmental Conditions
-40 to 115 deg C Operating Temperature
Material
Thermoplastic
Mounting
Surface
Number Of Poles
4
