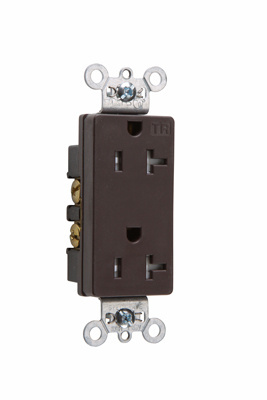

TR26362 - 20A 125V Heavy Duty Spec-Grade Tamper-Resistant Decorator Duplex Receptacle, Back and Side Wire, Brown
Description
Specifications
0.18lb
4.38mm
1.38mm
1.94mm
Healthcare, Education, Institutional and Multiple Dwelling Applications
Pass & Seymour
USA
MX
RECEPTACLE BL STR 125VAC 20A 2 3 BR
Dual mechanical shutter system to help prevent insertion of foreign objects
Auto-ground clip assures positive ground
Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
Backed-out tri-drive brass terminal screws for faster installation
Internal screw-pressure-plate back and side wire capability
Two back wire holes for additional wiring flexibility
0.032 in thick brass triple-wipe power contacts
Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
Temperature Rise, Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
Legrand
4.3800
IN
1.9400
IN
1
0.1800
LB
1.3800
IN
https://www.youtube.com/watch?v=CjT4MIzB4sw
Pass & Seymour
RECEPTACLES & SURGE PROTECTORS
Amperage Rating
A
20
Temperature Rating
deg C
-40 To 60
Terminal Type
Back/Side Wire
Type
3-Phase Decorator Duplex Heavy Duty Tamper-Resistant
Voltage Rating
V AC
125
Color
Brown
Dimensions
5.13 in H x 2 in W x 1.4 in D
Enclosure
NEMA WD-1/WD-6
Grade
Commercial/Specification
Material
Nylon/Thermoplastic
NEMA Rating
NEMA 5-20R
Number Of Poles
2
Number Of Wires
3
