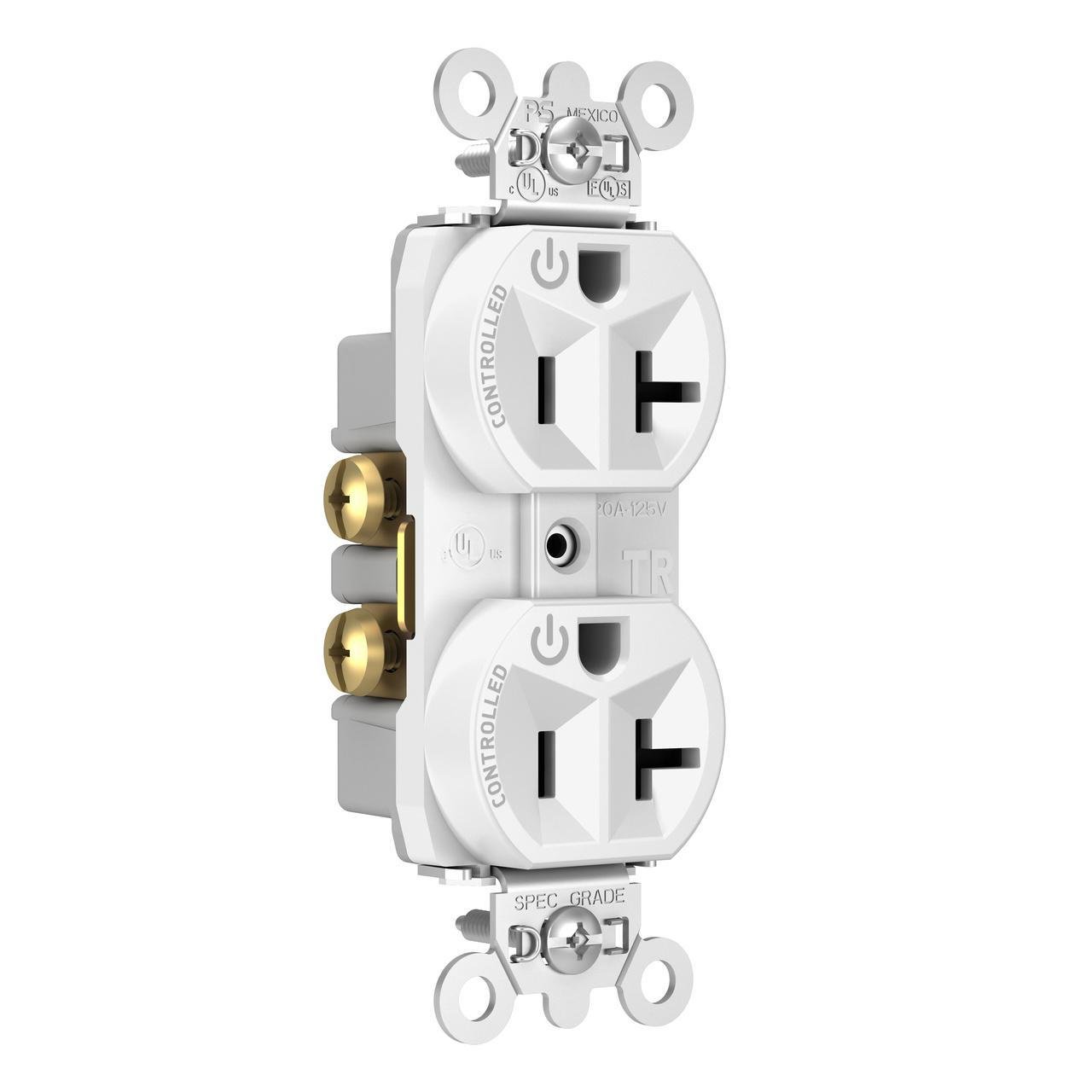

TR5362CDW - Hard-Use Spec Grade Plug Load Controllable Receptacle, 20A, 125V, White
Description
Specifications
0.2
1.38
1.94
Pass & Seymour
USA
MX
RECEPTACLE BL STR 125VAC 20A WHT 5-20R
Can be wired to any number of system-based or stand-alone plug load control solutions
Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly
0.032 in thick, brass, triple-wipe power contacts for lasting retention
Permanent controlled receptacle markings using abrasion resistant ink
Two drive screws anchor strap to back body and face where abrupt removal torque is strongest
Tri-drive brass-plated terminal screws
Two back-wire holes for more wiring flexibility
Dual mechanical shutter system to help prevent insertion of foreign objects (for Tamper-Resistant models)
CH Version Only, Split circuit tab broken at the factory, allowing half of the receptacle to be controlled
For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
Legrand
IN
1.9400
IN
1
0.2000
LB
1.3800
IN
Pass & Seymour
RECEPTACLES & SURGE PROTECTORS
Amperage Rating
A
20
Voltage Rating
V AC
125
Color
White
Dimensions
0.78 in L x 1.322 in W x 3.281 in H
Grade
Commercial/Specification
Material
Nylon/PVC
NEMA Rating
5-20R
Temperature Rating
deg C
-40 To 60
Terminal Type
Back/Side Wire
Type
Duplex Dual Controlled Plug Load Controllable
