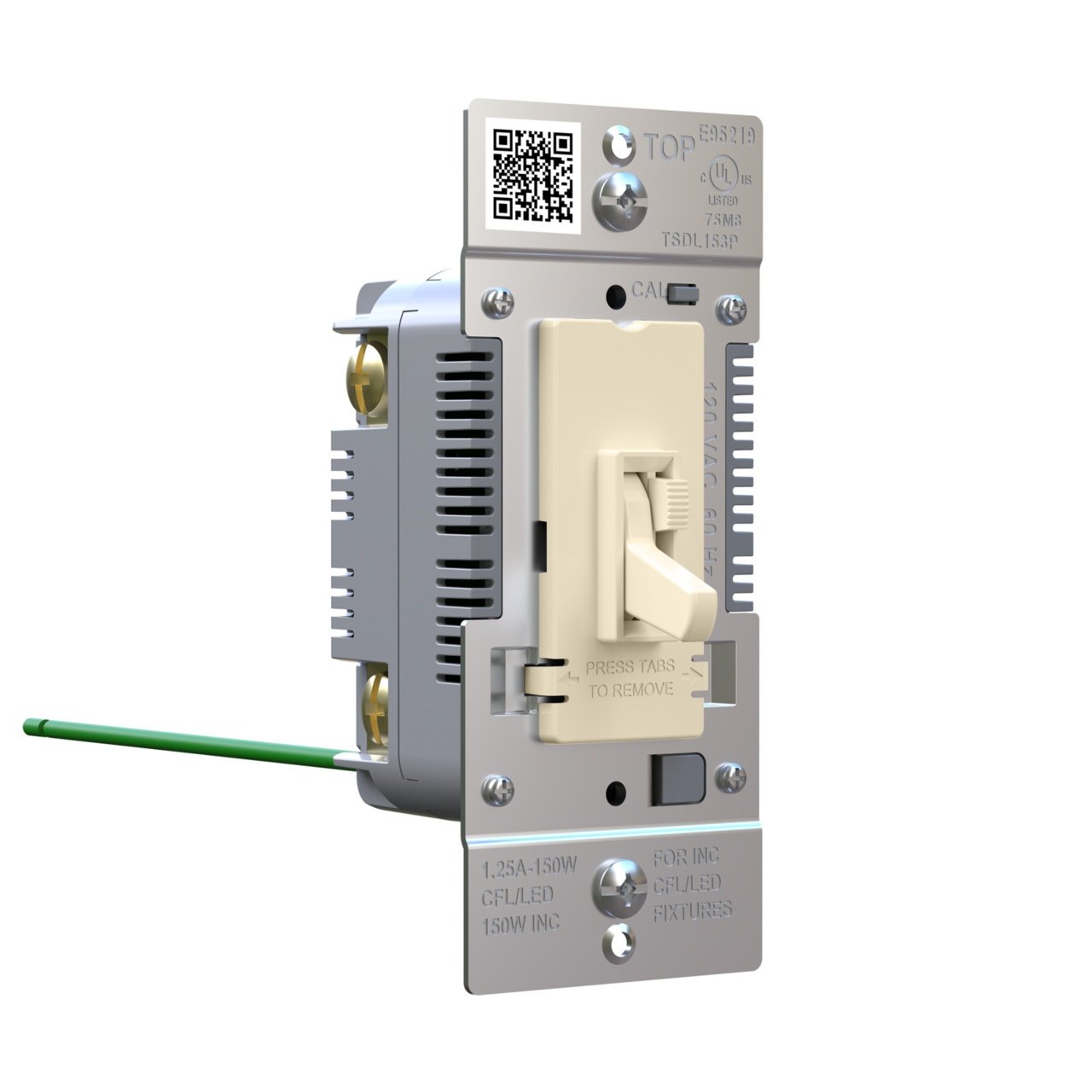

TSDL153PLA - Trademaster Toggle Slide LED Advanced Dimmer, Light Almond
Description
Specifications
0.27
2.75
2

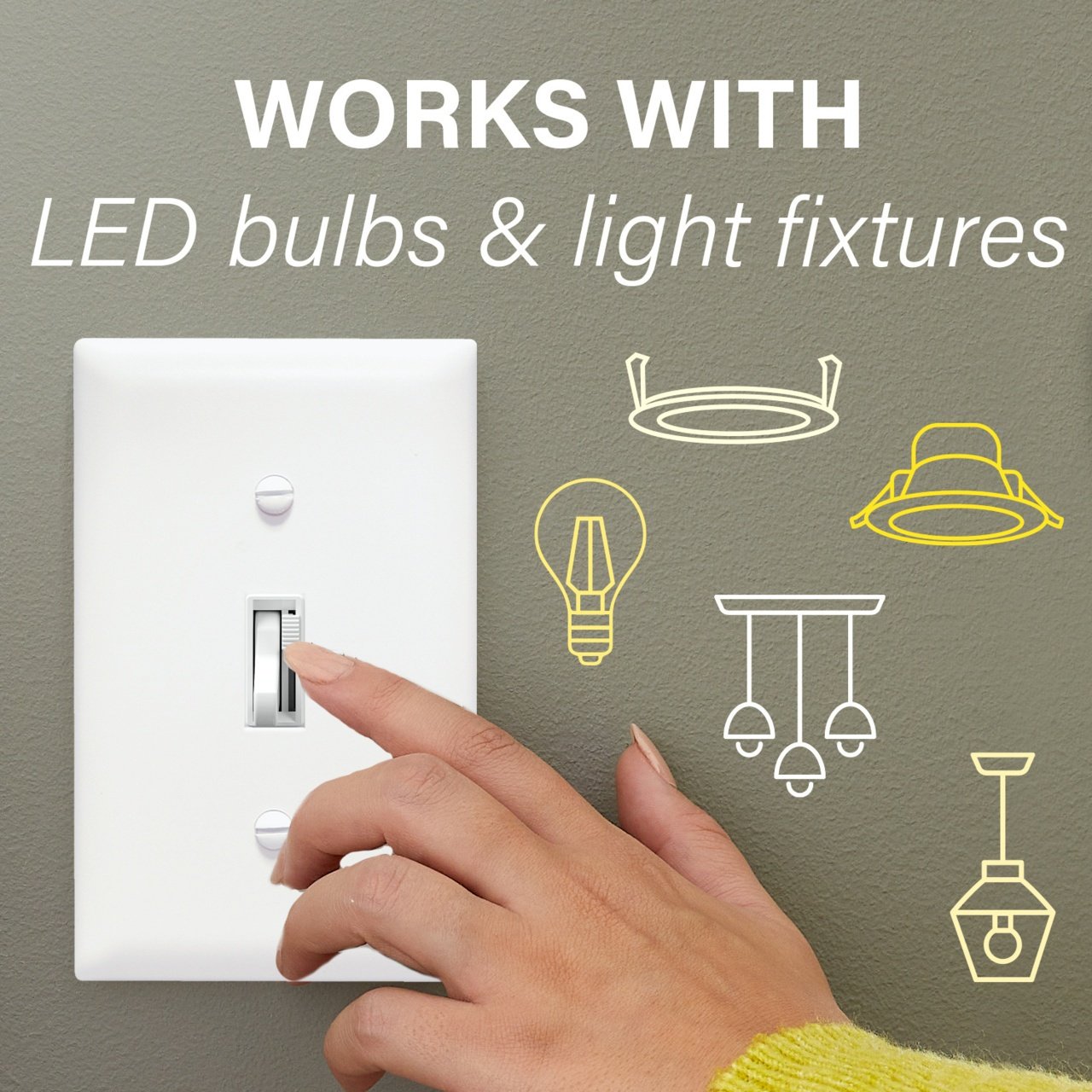

Specifically designed for use with dimmable LED bulbs and fixtures up to 150W at 120VAC
Pass & Seymour
USA
CN
DMR SW 120V 1 3-WAY LIGHT ALMOND 150W
Optimized to work out of the box, and provide flicker-free control of LEDs
Not intended for use with 0-10V, Magnetic Low Voltage, or Electronic Low Voltage Drivers

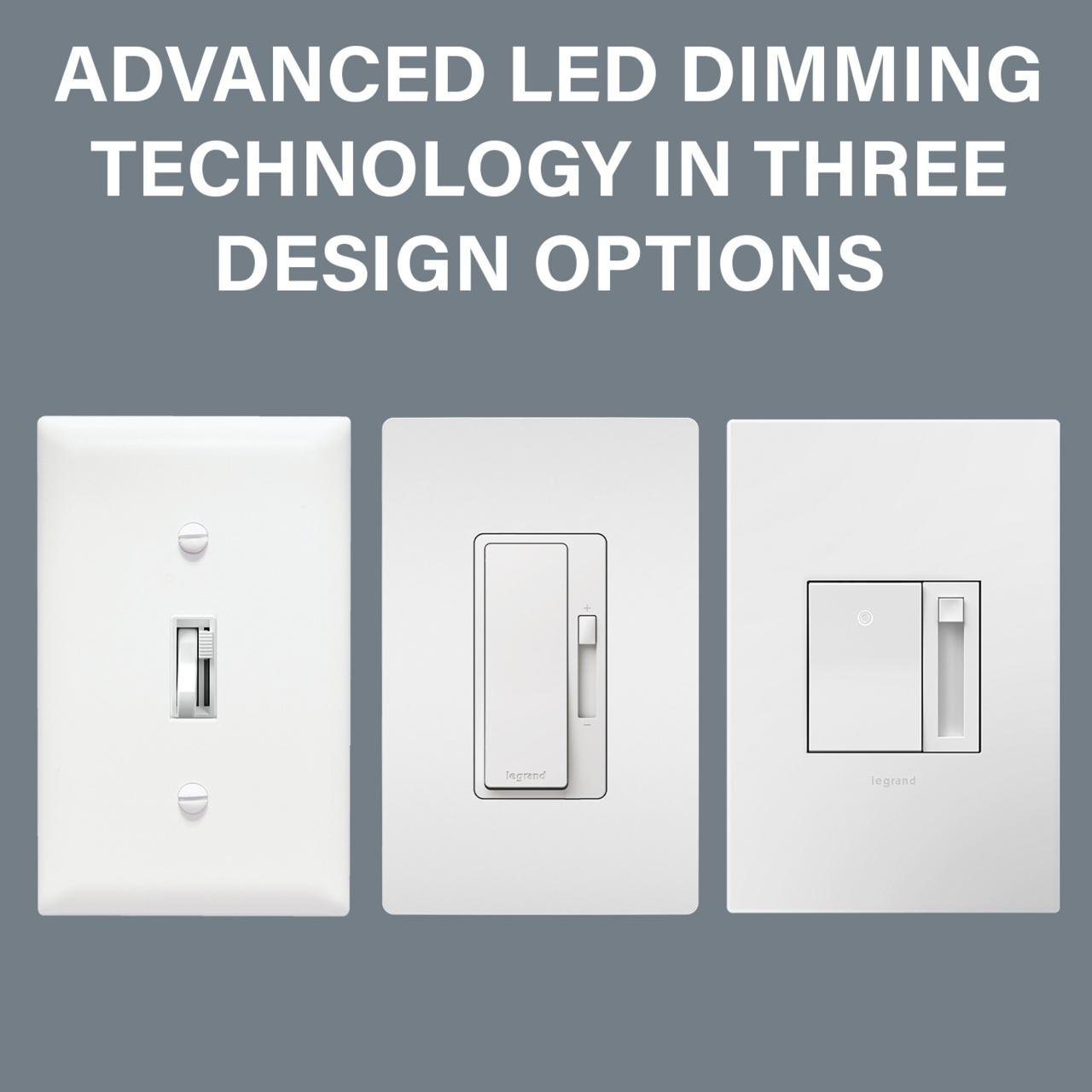

Matches appearance of standard Pass and Seymour toggle switch
Interchangeable face covers available in seven different colors
Advanced dimming technology maximizes LED compatibility to provide a full range of control while helping to eliminate most common LED dimming issues
Simple high-and-low end dimming limit adjustability with easy-to-push calibration button to meet all lighting preferences and eliminate LED flickering

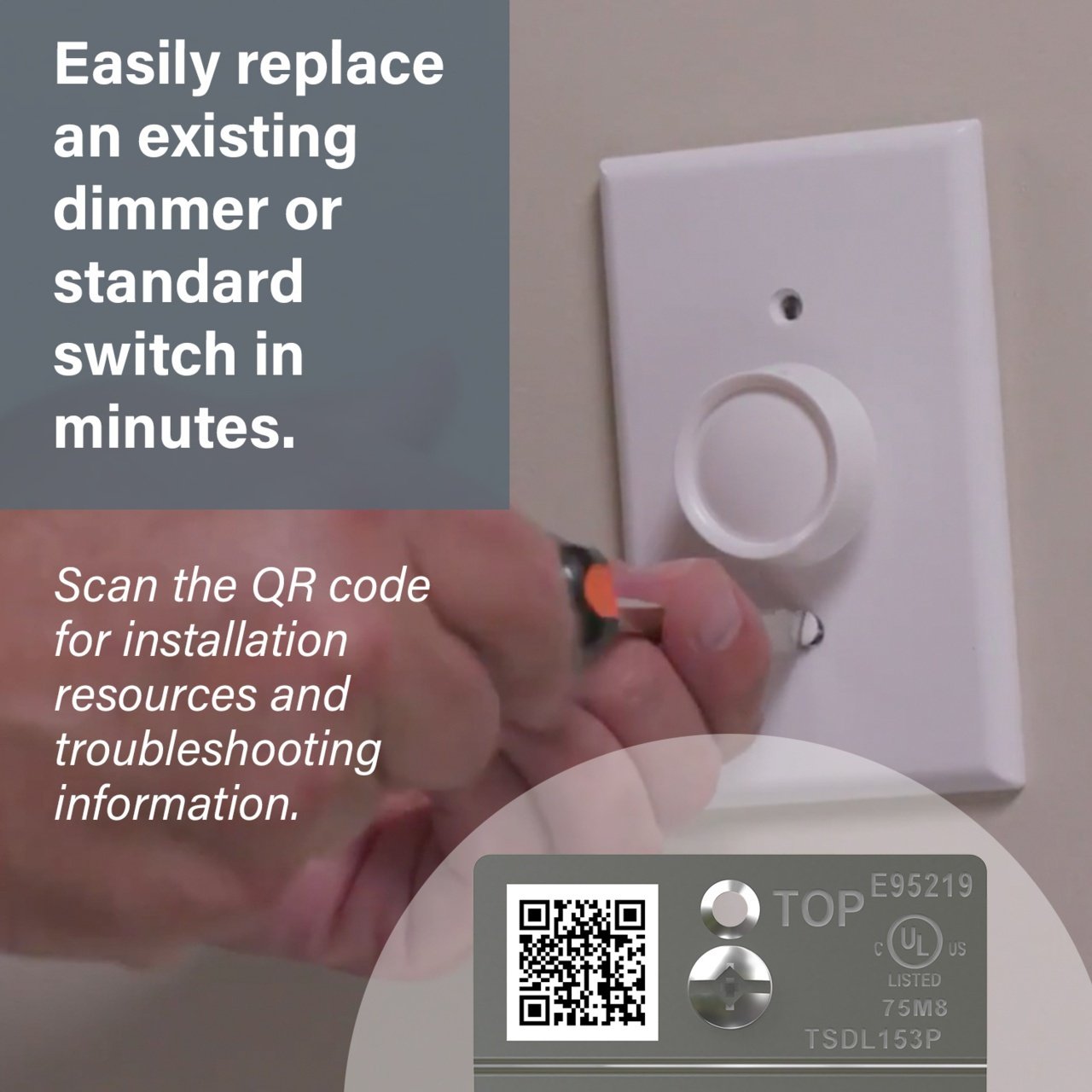

Replaces any basic single-pole or 3-way switch or dimmer in less than 15 min
Back-wire screw and pressure plate terminations for easy and reliable wiring with ground wire lead and wire nut provided
QR code provided on front face of device to provide easy access to installation guides and videos
Constant memory feature returns light levels and user adjustments to return to previous settings following a power failure or outage
Optional LED Burst Mode setting can be activated as needed to help eliminate or reduce LED turn on delays and pop-ons
Legrand
IN
2.0000
IN
1
0.2700
LB
2.7500
IN
Pass & Seymour
LIGHTING DIMMERS
Ballast Factor
0 to 10 V Dimming
Type
Advanced
Voltage Rating
V
120
Color
Light Almond
Control
Toggle Slide
Lamp Type
Led
Material
Thermoplastic
Number Of Poles
1
Operation Mode
3-way
Power Rating
W
150
Terminal Type
Back Wire/Screw/Pressure Plate
