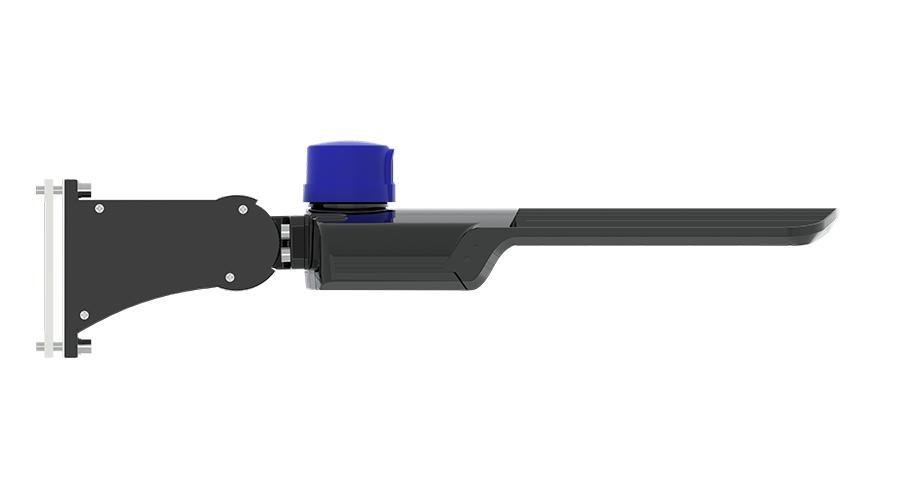

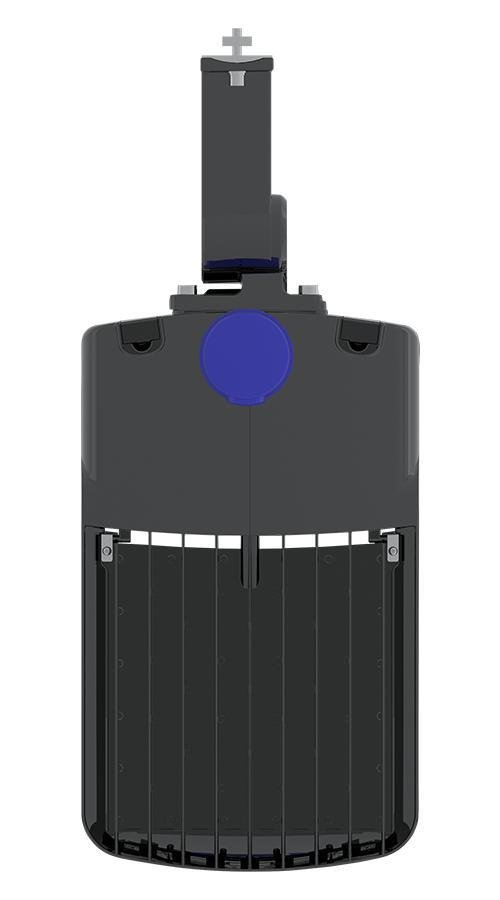

A17XFU150 - AREALIGHTS 11168-21875.1 LUMENS A17 3WAY FIELD ADJUSTABLE CCT 70W-100W-150W LED BRONZE
Description
Specifications
12.32lb
6.3mm
11.3mm
28.35mm
For Wet Locations, Roadway, Wireless Control Systems, General Parking and other Area Lighting Applications
RAB Lighting
USA
CN
Round Pole Adaptor Plate and Dimming Driver
AREA LTG 1 LED 120 208 240 277V
Integrated NEMA 7-pin receptacle enables easy upgrade to smart controls
Reversible house side shields available
Die-cast aluminum housing, lens frame and mounting arm
Type III medium narrow distribution
0-10V dimmable
100,000-Hour LED lifespan
70W/100W/150W Power adjustable
Color Adjustable
RAB Lighting Inc.
6.3000
IN
28.3500
IN
1
2453.7600
cu-in
12.3200
LB
11.3000
IN
RAB Lighting
LED ROADWAY LIGHTING
Amperage Rating
A
1.50/0.80/0.70/0.06
Lens Type
Polycarbonate
Light Output
Lumens/W
134
Lumens
Lumens
11168
Mounting Type
Universal Pole Adapter
Number of Lamps
1
Series
A17
Voltage Rating
V
120/208/240/277
Average Life
hrs
100000
Color Rendering Index (CRI)
CRI
71 to 73
Color Temperature
K
2700
Dimensions
6-5/16 in H x 11-1/4 in W x 28-3/8 in D
Enclosure Type
IP65
Housing Finish
Bronze
Housing Material
Die Cast Aluminum
Lamp Wattage
W
150
