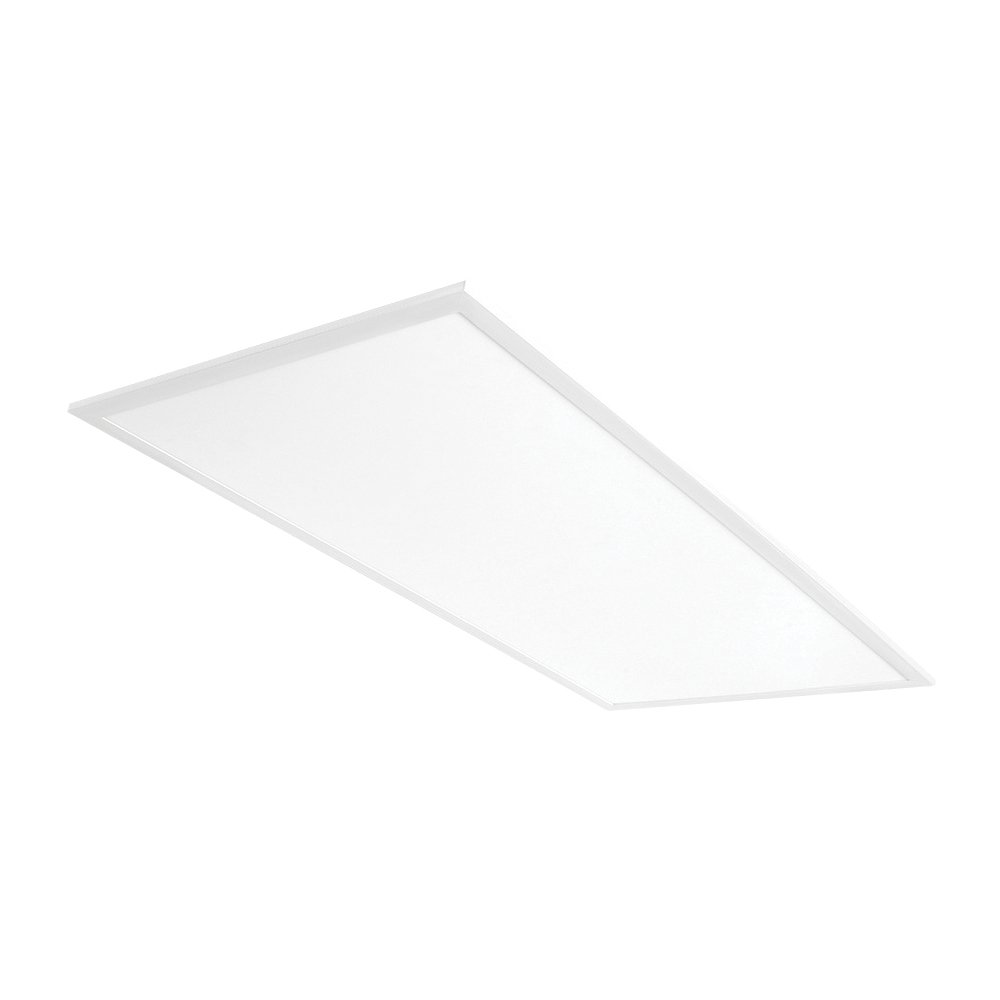

EZPANHE2X4-30N/D10 - PANELS & TROFFERS 4133 LUMENS EZPAN 2X4 30W 4000K 0-10V DIMMING
Description
Specifications
15.43lb
24.8mm
48.6mm
Best in class efficacy
RAB Lighting
USA
CN
LIGHT PNL LED 31W 120/208/240/277VAC AL
Best in class efficacy
Innovative use of edge lit technology for glare free lighting
Ultra efficient, up to 140 lm/W, reducing energy costs by up to 80%
0.25 A at 120 VAC, 0.14 A at 208 VAC, 0.13 A at 240 VAC, 0.11 A at 277 VAC
RAB Lighting Inc.
IN
48.6000
IN
1
3490.5600
cu-in
15.4300
LB
24.8000
IN
RAB Lighting
LED RECESSED ARCHITECTURAL & SPECIFICATION LIGHTING
Amperage Rating
A
0.11/0.13/0.14/0.25
Lens Type
Frosted Polystyrene
Light Color
Neutral White
Light Output
Lumens/W
136
Lumens
Lumens
4133
Mounting Type
Ceiling
Series
EZPANHE
Voltage Rating
V AC
120/208/240/277
Average Life
HR
100000
Ballast Type
Constant Current
Color Rendering Index (CRI)
81
Color Temperature
K
4000
Dimensions
2 ft H x 4 ft W x 1-5/8 in D
Fixture Wattage
W
31
Housing Material
Aluminum
Lamp Wattage
W
30
