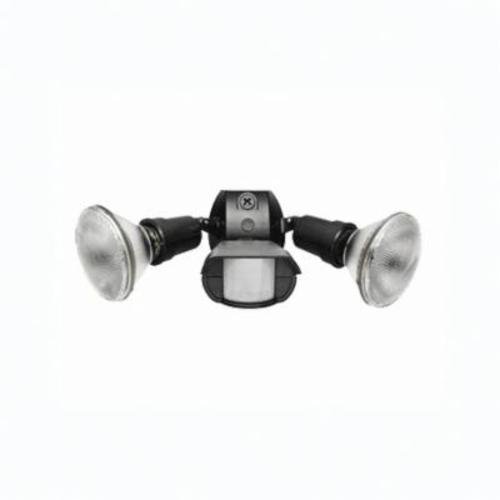

GT500R - Outdoor Sensor Lights, Black
Description
Specifications
1.94lb
3.1mm
6.9mm
11mm
1981375001
Outdoor and Wet Location Applications
RAB Lighting
USA
CN
Warranty Information
Specification Sheet
00019813750019
8685649
(1) Gotcha Sensor, (2) Floodlights, (1) Molded Gasket and (1) Universal Cover Plate
FLOODLIGHT SNSR 2 PAR38 HALOGEN/INCAND
New vandal-resistant grill
6000 VAC surge protection
Temperature compensation
Protected manual override with auto-reset
Double look down lens
Deactivates lights during daylight, fully adjustable for 24 hr operation or custom applications
Two flip logic prevents activation by momentary power outages, override resets to Auto after 6 hr or at dawn
1 W power consumption
60 Hz Frequency
Almond color
Non-fixture
No extra wiring needed
Made of tough, corrosion-resistant polycarbonate
Adjustable from 100 to 50%
Accepts PAR38 lamps, medium base, 150 W maximum
Lamps not included
GT500R Wallpack Sensor Floodlight, (2) Halogen/Incandescent Lamp, 300 W Fixture, 120/277 V AC, Polycarbonate Housing ; RAB Lighting ; RAB ; GT500R ; 1981375001 ; 019813750019 ; Outdoor Motion Sensor Lighting
RAB Lighting Inc.
3.1000
IN
11.0000
IN
1
1.9400
LB
6.9000
IN
GT500R ; 1981375001 ; 8685649 ; 019813750019 ; 19813750019 ; 01981375001 ; 00019813750019
RAB Lighting
Security Lights
Dimensions
15-1/2 in W
Sensing Angle
deg
110
Time Delay
10 s to 10 min
Type
Wallpack
Voltage Rating
V AC
120/277
Fixture Wattage
W
300
Housing Material
Polycarbonate
Lamp Base Type
E26 Medium
Lamp Type
Halogen/Incandescent
Lamp Wattage
W
150
Lens Type
Double Look Down
Mounting Type
Ceiling
Number of Lamps
2
