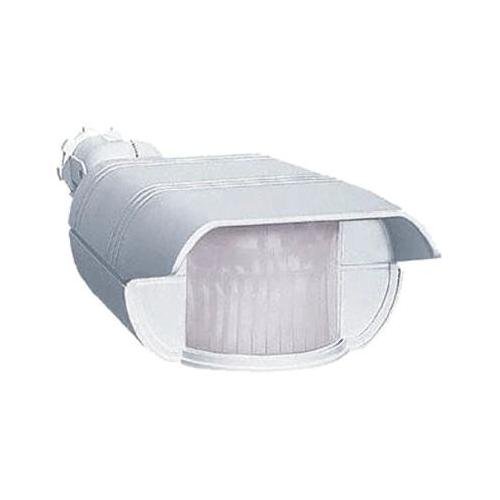

GT500W - Outdoor Motion Sensors Gotcha 110 Sensor, 500W, 120V-277V, White
Description
Specifications
0.72lb
2.9mm
6.9mm
11mm
Wet Locations and Indoor/Outdoor Applications
RAB Lighting
USA
CN
1981375004
SENSOR GOTCHA 120/277VAC PELEC 110DEG 5A
Temperature compensation
Protected manual override with auto-reset
Double look down lens
Adjustable from 100 to 50% detector sensitivity
Add gotcha sensor to outdoor fixtures that draw 30 W or greater and have bi-level operation for compliance with 2013 California title 24 building and electrical codes
Made of tough, corrosion-resistant polycarbonate floodlights, for extra or replacement floodlights, order CAT No, TUFFY in your choice of color, accepts PAR38 lamps, medium base, 150 W maximum, lamps not included
Withstands up to 6000 VAC
Two flip logic prevents activation by momentary power outages, override resets to auto after 6 hr or at dawn, no extra wiring needed
Deactivates lights during daylight, fully adjustable for 24 hr operation or custom applications
Made of tough, corrosion-resistant polycarbonate sensor housing
RAB Lighting Inc.
2.9000
IN
11.0000
IN
1
224.6400
cu-in
0.7200
LB
6.9000
IN
RAB Lighting
LIGHTING SENSORS
Amperage Rating
A
5
Temperature Rating
deg C
-20 To 40
Time Delay
10 s to 5 min
Type
Non-fixture
Viewing Angle
deg
110
Voltage Rating
V AC
120/277
Color
White
Dimensions
2-1/4 in H x 4 in W x 5 in D
Lamp Type
Incandescent
Material
Polycarbonate
Mounting Type
Fastened
Power Rating
W
500
Response Frequency
HZ
60
Sensor Type
Photoelectric
