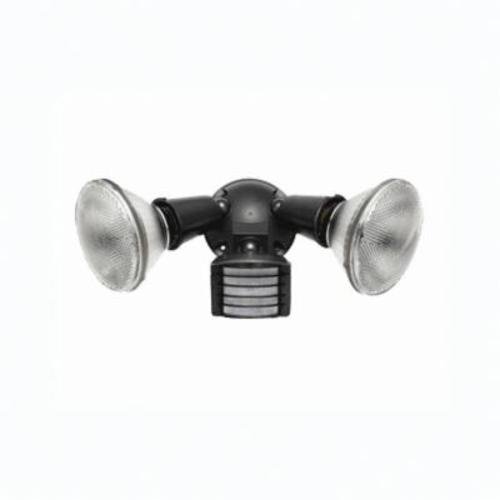

LU300 - OUTDOOR SENSORS LUMINATOR 110 SENSOR 2 FLOODS 300W 120V ROUND COVER BRONZE
Description
Specifications
1.19lb
4.8mm
6.6mm
1981373000
Outdoor and Wet Location Applications
RAB Lighting
Ferguson - RLU300
USA
MY
Instruction/Installation Manual
00019813730004
8685453
Luminator® Sensor, (2) Floodlights, Round Mounting Plate
KIT FLDT 2 PAR38 INCAND 300W 120VAC 2.5A
Manual override
Fully adjustable positioning
110 deg double look down lens
Tough, vandal-resistant lens and grill
LS300 fits 1/2 in standard threaded cover plates
Two flip logic prevents activation by momentary power outages
Override resets to auto after 6 hr or at dawn
No extra wiring needed
Withstands up to 3000 VAC
Deactivates lights during daylight
Fully adjustable for 24 hr operation or custom applications
5 min of test time when power is turned on, rests to auto mode without further adjustment
Made of tough, corrosion-resistant polycarbonate sensor housing
Lamps not included
Luminator® sensor with two weatherproof, corrosionproof floodlights and round mounting plate
Pre-wired for easy installation
Both floods and sensor have universal ball swivels for easy tool less adjustment
Non-fixture
Luminator LU300 Floodlight Kit, (2) Incandescent Lamp, 300 W Fixture, 120 V AC, Polycarbonate Housing ; RAB Lighting ; RAB ; LU300 ; 1981373000 ; 019813730004 ; Outdoor Motion Sensor Lighting
RAB Lighting Inc.
IN
6.6000
IN
1
207.3600
cu-in
1.1900
LB
4.8000
IN
LU300
RAB Lighting
OCCUPANCY SENSING LIGHTING
Amperage Rating
A
2.5
Mounting Type
Wall
Number of Lamps
2
Sensing Angle
deg
110
Time Delay
8 s to 10 min
Voltage Rating
V AC
120
Dimensions
15-1/2 in W
Fixture Wattage
W
300
Housing Material
Polycarbonate
Lamp Base Type
E26 Medium
Lamp Type
Incandescent
Lamp Wattage
W
150
Lens Type
Double Look Down
Light Color
Bronze
