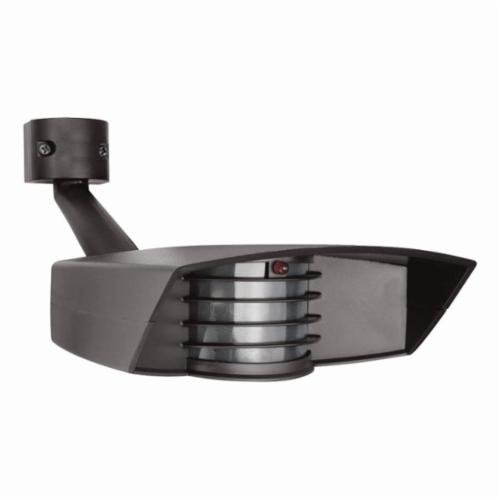

STL110 - OUTDOOR SENSORS STEALTH 110 SENSOR 1000W 120V BRONZE
Description
Specifications
0.93lb
5.5mm
10mm
Wet Locations and Indoor/Outdoor Applications
RAB Lighting
USA
MY
SENSOR STEALTH 120VAC PELEC 110DEG THD
Temperature compensation
Radio frequency immunity
LED detection and "on guard" indicator
Color matched vandal-resistant lens and grill
Protected manual override with auto-reset
Can be wired in parallel
Shows when sensor is detecting in daytime and glows red at night for "on guard" deterrence LED detection indicator
Dark lens with bronze units, white lens with white units color matched lens
Withstands up to 6000 VAC
Two flip logic prevents activation by momentary power outages, override resets to auto at dawn, no extra wiring needed
Deactivates lights during daylight, fully adjustable for 24 hr operation or custom applications
Circuits fully shielded for maximum radio frequency immunity RF immunity
Adjustable from 100 to 30% detector sensitivity
10 ft recommended mounting height, 50 ft maximum recommended look out zone
Sensitivity adjusts automatically for consistent detection in hot and cold ambient temperatures
Keeps sensing pattern level for fast, error free installation horizontal lock, no tool joints
Precision die cast aluminum 1/2 in NPS threaded arm with serrated locking swivel fits all standard mounting boxes and covers
RAB Lighting Inc.
IN
10.0000
IN
1
138.2400
cu-in
0.9300
LB
5.5000
IN
RAB Lighting
LIGHTING SENSORS
Amperage Rating
A
8
Time Delay
5 s to 12 min
Type
Non-fixture
Viewing Angle
deg
110
Voltage Rating
V AC
120
Color
Bronze
Dimensions
3-1/2 in H x 5 in W x 5 in D
Lamp Type
Incandescent
Material
Die Cast Aluminum
Mounting Type
Fastened
Power Rating
W
1000
Response Frequency
HZ
60
Sensor Type
Photoelectric
