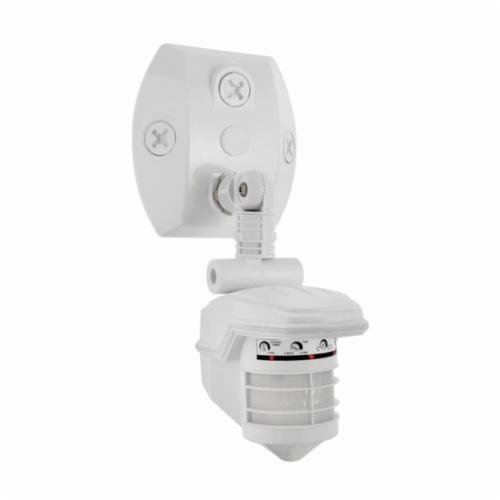

STL360W - OUTDOOR SENSORS STEALTH 360 SENSOR 1000W 120V WHITE
Description
Specifications
1.46lb
5.4mm
10mm
Wet Locations and Indoor/Outdoor Applications
RAB Lighting
USA
MY
SENSOR STEALTH 120VAC PELEC 360DEG FXTR
Senses 180 deg out/360 deg down for total detection
Radio frequency immunity
Color matched vandal-resistant lens and grill
1000 W switching capacity
Protected manual override with auto-reset
Can be wired in parallel
Pre-wired and pre-assembled on CU4 universal EZ plate
Quick test time
Withstands up to 6000 VAC
Two flip logic prevents activation by momentary power outages, override resets to auto at dawn, no extra wiring needed
Deactivates lights during daylight, fully adjustable for 24 hr operation or custom applications
Circuits fully shielded for maximum radio frequency immunity RF immunity
Adjustable from 100 to 30% detector sensitivity
Keeps lights on for 1 to 8 hr after dusk, then sensor is motion activated until dawn
STL360's full coverage pattern reduces need for aiming and adjustment
Minimizes false triggers advanced detection logic
3 LEDs continually scan back and forth scanning LEDs
RAB Lighting Inc.
IN
10.0000
IN
1
190.0800
cu-in
1.4600
LB
5.4000
IN
RAB Lighting
LIGHTING SENSORS
Amperage Rating
A
8
Time Delay
5 s to 12 min
Type
Non-Fixture Super
Viewing Angle
deg
360
Voltage Rating
V AC
120
Color
White
Dimensions
4-3/8 in H x 3 in W x 4-3/4 in D
Lamp Type
Incandescent
Material
Polycarbonate
Mounting Type
Fastened
Power Rating
W
1000
Response Frequency
HZ
60
Sensor Type
Photoelectric
