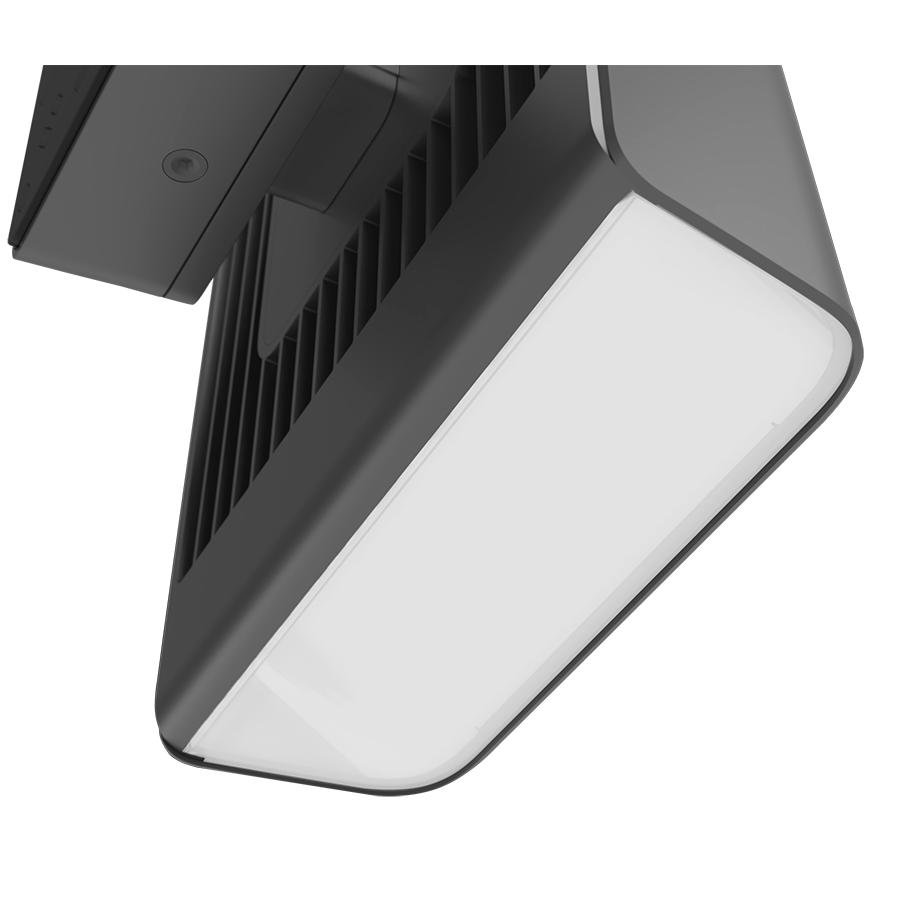

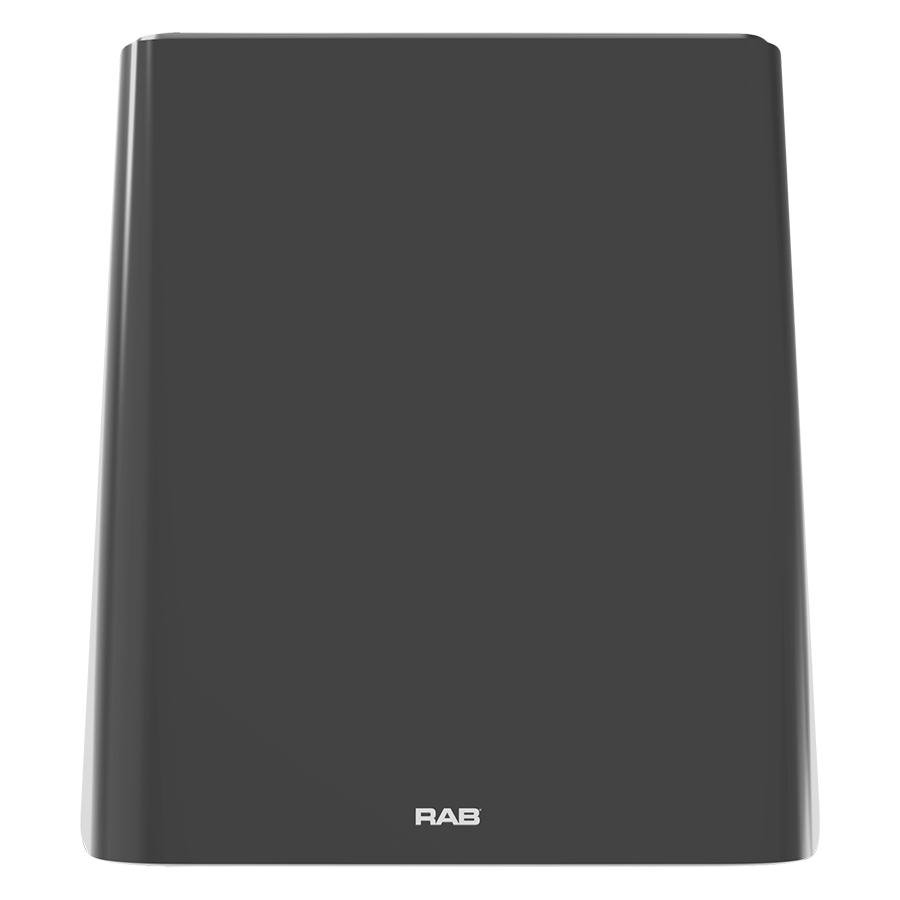

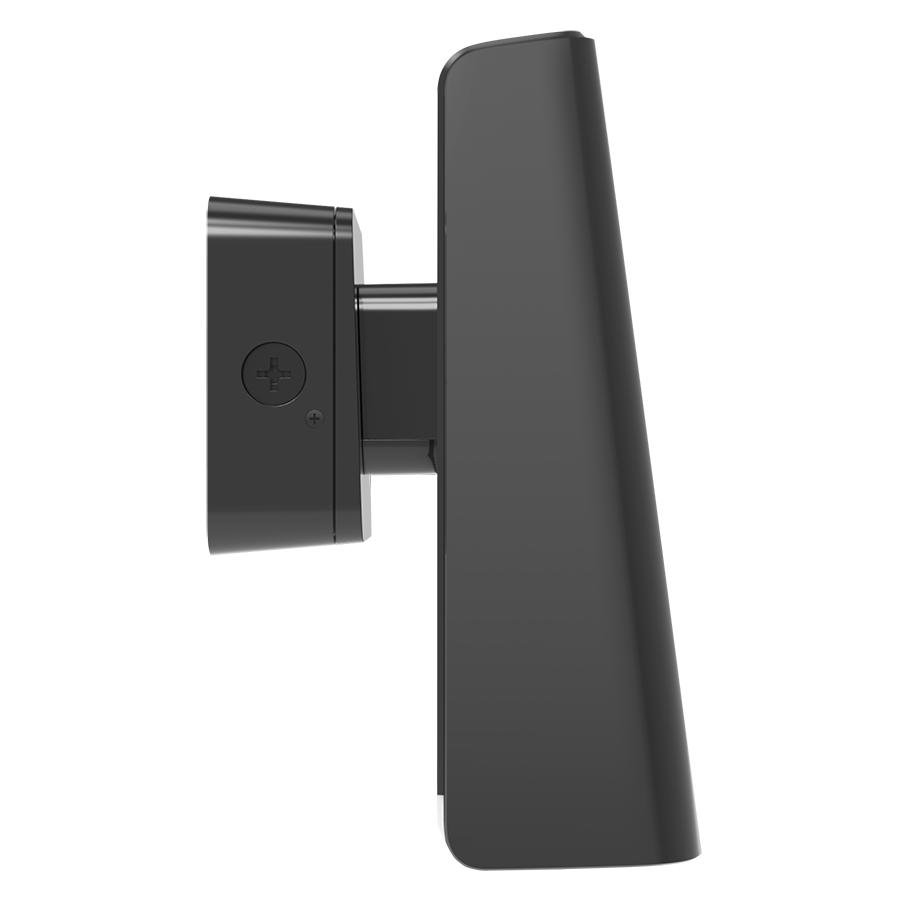

WPLEDL - Large Wallpack Field Adjustable 113/85/58W 3000K/4000K/5000K Bronze
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Specifications
Height
7.28
Width
11.81
Length
12.6
AD Application
Suitable for Use in Up to 40 deg C (104 deg F)
AD Brand (Description)
RAB Lighting
AD Country
USA
AD Includes
Integrated photocell
AD Invoice Description
OUTDOOR WALLPACKS LED 55.5TO114.6W
AD Manufacturer (Description)
RAB Lighting Inc.
AD Package Height
7.2800
AD Package Height UOM
IN
AD Package Length
12.6000
AD Package Length UOM
IN
AD Package Quantity
1
AD Package Width
11.8100
AD Package Width UOM
IN
Brand
RAB Lighting
Category
LED Wallpacks
Spec 1 Attribute
Amperage Rating
Spec 1 Attribute UOM
A
Spec 1 Attribute Value
0.96 to 0.25
Spec 10 Attribute
Lamp Type
Spec 10 Attribute Value
Led
Spec 11 Attribute
Lamp Wattage
Spec 11 Attribute UOM
W
Spec 11 Attribute Value
113/85/58
Spec 12 Attribute
Lens Type
Spec 12 Attribute Value
Acrylic
Spec 13 Attribute
Light Output
Spec 13 Attribute UOM
Lumens/W
Spec 13 Attribute Value
119.3 to 143.7
Spec 14 Attribute
Lumens
Spec 14 Attribute UOM
Lumens
Spec 14 Attribute Value
7533 to 14968
Spec 15 Attribute
Mounting Type
Spec 15 Attribute Value
Junction Box/Wall
Spec 16 Attribute
Series
Spec 16 Attribute Value
WPLED
Spec 17 Attribute
Voltage Rating
Spec 17 Attribute UOM
V
Spec 17 Attribute Value
120/208/240/277
Spec 2 Attribute
Average Life
Spec 2 Attribute UOM
HR
Spec 2 Attribute Value
100000
Spec 3 Attribute
Ballast Type
Spec 3 Attribute Value
Class 2/Constant Current/0 to 10 V Dimming
Spec 4 Attribute
Color Rendering Index (CRI)
Spec 4 Attribute Value
83 to 85
Spec 5 Attribute
Color Temperature
Spec 5 Attribute UOM
K
Spec 5 Attribute Value
3000/4000/5000K
Spec 6 Attribute
Dimensions
Spec 6 Attribute Value
10-1/4 in H x 9-3/4 in W x 6-7/16 in D
Spec 7 Attribute
Fixture Wattage
Spec 7 Attribute UOM
W
Spec 7 Attribute Value
55.5 to 114.6
Spec 8 Attribute
Housing Finish
Spec 8 Attribute Value
Bronze
Spec 9 Attribute
Housing Material
Spec 9 Attribute Value
Die-Cast Aluminum
