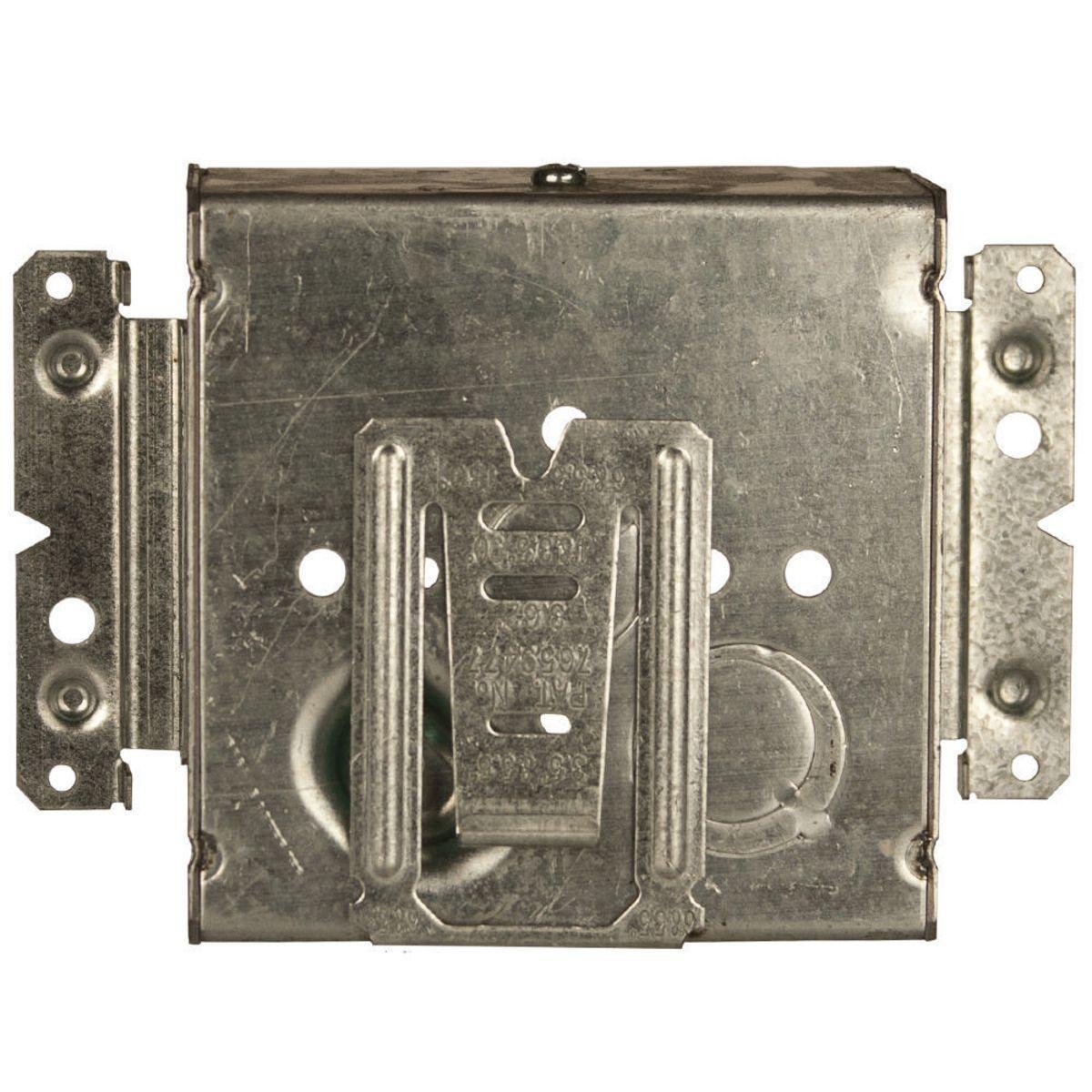

232MS - 4 in. Square Box, Welded with STAB-IT® Connector, 2-1/8 in. Deep, 600V, Raised Ground, 8 in. #12 Copper Pigtail, UBS, M Bracket
Description
Specifications
1.13lb
4.14mm
5.86mm
2.64mm
2.13mm
Commercial, Lighting Fixtures, Switches or Receptacles Applications
RACO
USA
CN
3/8 in Setback "M" Bracket, STAB-IT Connector and 12 AWG 8 in Solid Copper Pigtail
SQ BX STEEL 30.3CU-IN 2 2 11
Welded steel construction with UBC support with preset bend points to work with wall thickness 2-1/2 to 6 in and M brackets on both sides of the box
TKO Knockouts allow design and installation flexibility
Supplied with seven 1/2 in and four 1/2-3/4 in TKO knockouts
Combination Phillips/slotted screw heads
Acceptable for use in 2 hr fire rated walls
Hubbell
4.1400
IN
2.6400
IN
1
64.0500
cu-in
1.1300
LB
5.8600
IN
https://youtu.be/_2Hx0_FM0kI
RACO
Steel Outlet Boxes
Capacity
cu-in
30.3
Color
Gray
Dimensions
4 in H x 4 in W x 2-1/8 in D
Knockout Size
IN
1/2 to 3/4
Material
Steel
Number of Gangs
2
Number of Knockouts
11
Number of Outlets
2
Shape
Squared
