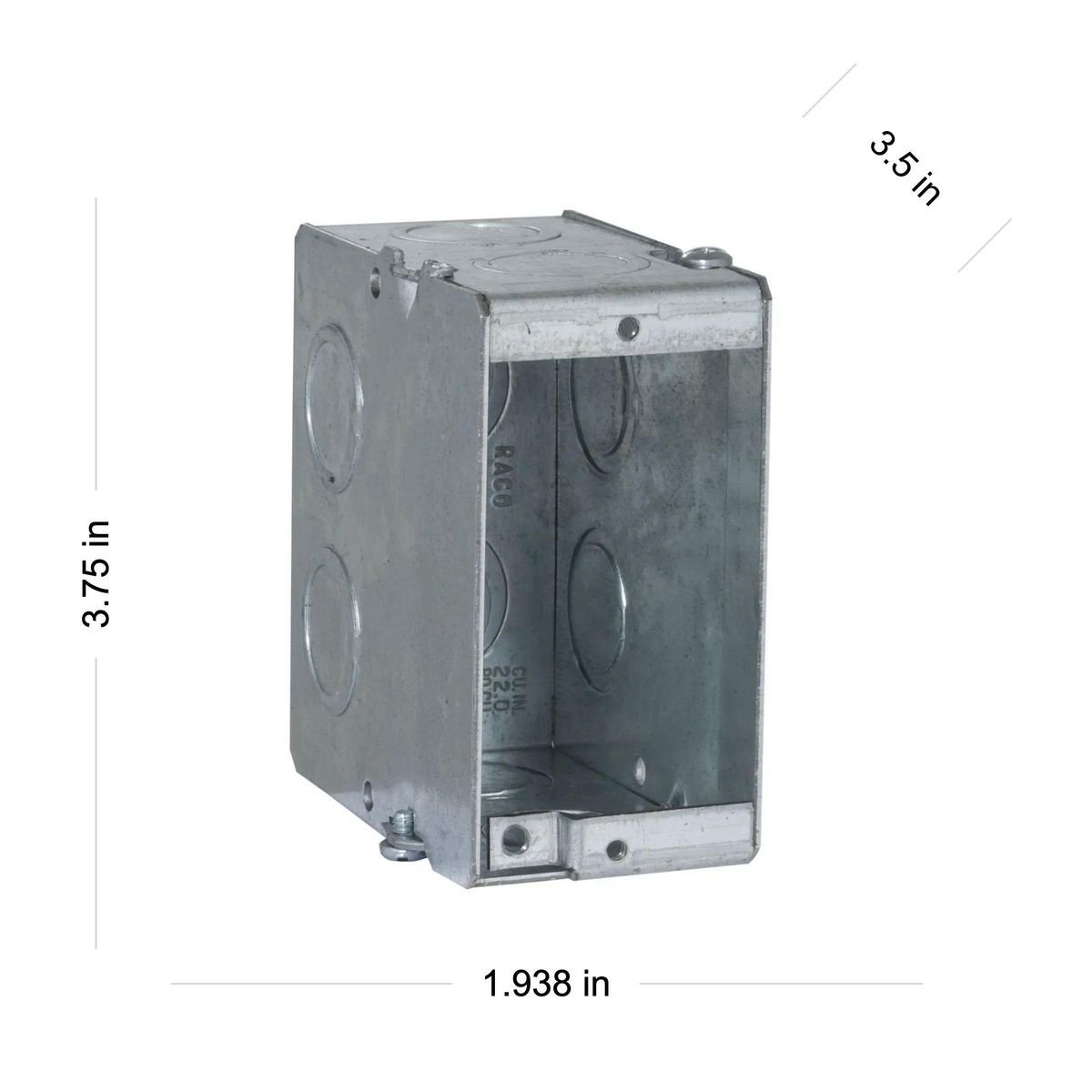

689 - 1-Gang Masonry Box, Gangable, 3-1/2 in. Deep, Ten TKO's
Description
Specifications
0.84lb
3.75mm
1.94mm
3.5mm
3.5mm
Electrical Applications
RACO
USA
CA
MSNRY BOX STL 22.5CU-IN 1 1 11
Forward mounted grounding provision allows for easy installation of grounding pigtail
Screw-on/nail-on mounting
Steel voltage partition No.675 fits 2-1/2 in and No. 676 fits 3-1/2 in depth
Gangable design allows installer to build unlimited number of gangs to hold multiple devices
Rectangular shape fits square cuts in block
Device ears inside the box prevent mortar from getting in the device holes
Ground is located near the front of the box for installer's convenience
Supplied with ten 1/2 and 3/4 in concentric knockouts
Rugged welded design does not fall apart during construction
Standard wall plates can be used
Gangable design allows construction of multiple gang box from one product
Designed to accommodate the mounting of switches or other devices in masonry walls 2-1/2 in deep boxes are used in 4 in block walls, 3-1/2 in deep boxes are used in 6 in or 8 in block walls
Hubbell
3.7500
IN
3.5000
IN
1
25.4400
cu-in
0.8400
LB
1.9400
IN
RACO
Steel Outlet Boxes
Cable Entry Size
Knockout
Number of Knockouts
11
Number of Outlets
1
Shape
Rectangle
Type
Gangable
Capacity
cu-in
22.5
Color
Silver
Dimensions
3-3/4 in H x 1-15/16 in W x 3-1/2 in D
Finish
PRE-GALVANIZED
Knockout Size
1/2 in, 3/4 in
Material
Steel
Mounting Type
Threaded
Number of Gangs
1
