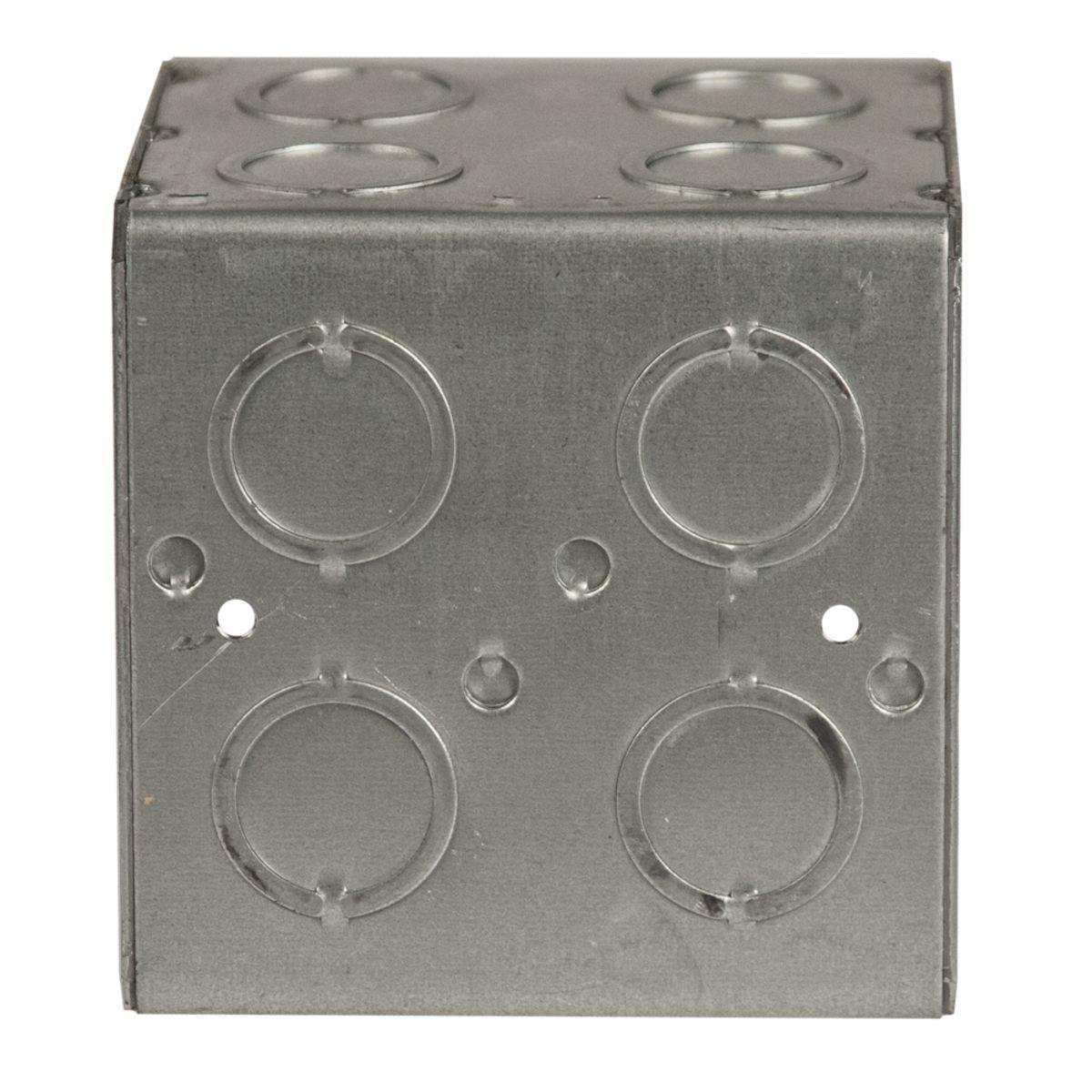

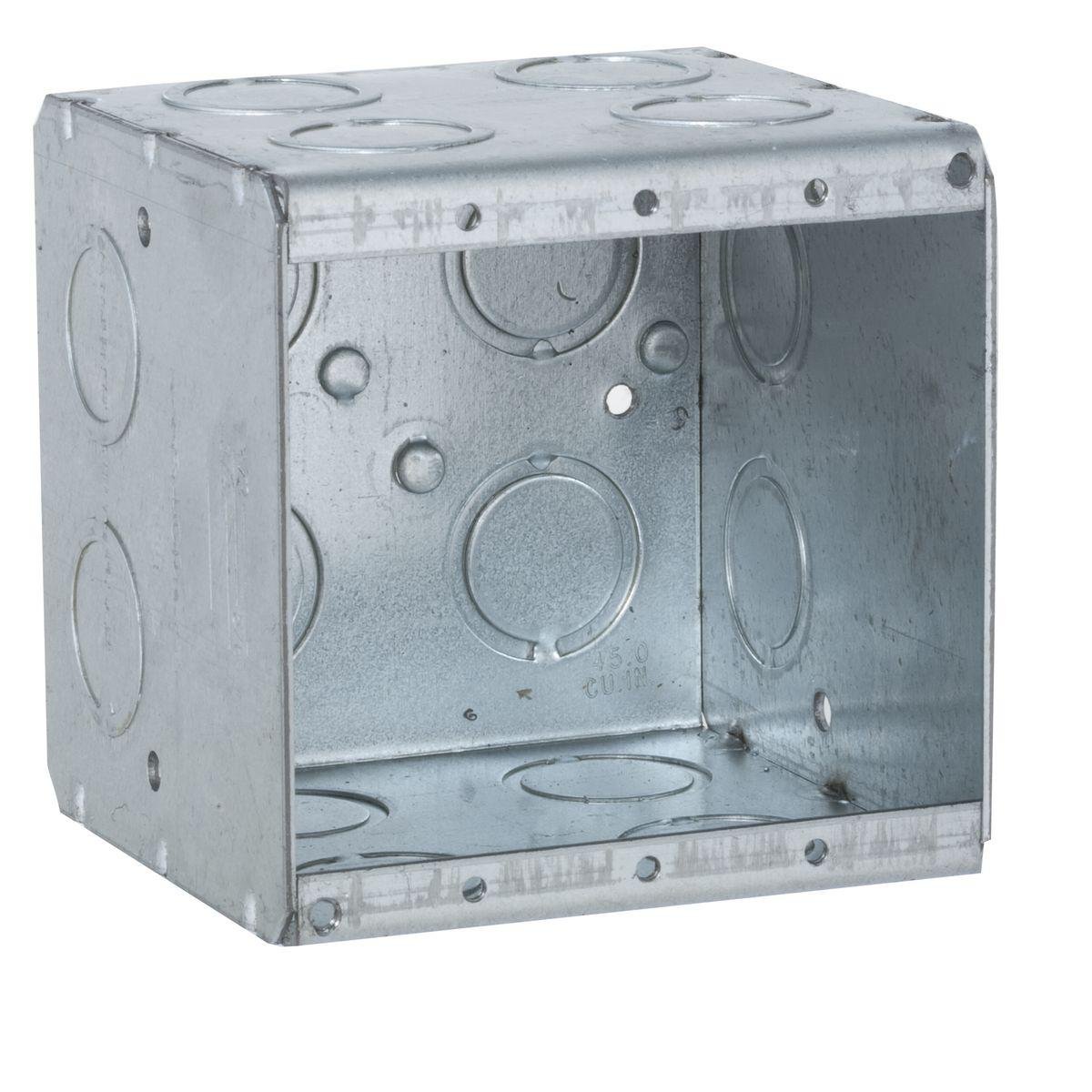

696 - 2-Gang Masonry Box, Nongangable, 3-1/2 in. Deep, Sixteen Concentric KO’s
Description
Specifications
1.18lb
3.75mm
3.78mm
3.5mm
3.5mm
Electrical Applications
RACO
USA
MX
MSNRY BOX STL 45CU-IN 2 2 24
Supplied with sixteen 1/2 and 3/4 in concentric knockouts
Large volume design allows for additional work room inside the box
Designed to accommodate the mounting of switches or other devices in masonry walls 2-1/2 in deep boxes are used in 4 in block walls, 3-1/2 in deep boxes are used in 6 in or 8 in block walls
Rugged welded design does not fall apart during construction
Available from one to six gang configurations in both 2-1/2 in and 3-1/2 in depths
Standard wall plates can be used
Rectangular shape fits square cuts in block
Steel voltage partition No.971 fits all 2-1/2 in or 3-1/2 in depth
Screw-on/nail-on mounting
Standard device spacing with tapped 6-32 holes for devices
Device ears inside the box prevent mortar from getting in the device holes
Hubbell
3.7500
IN
3.5000
IN
1
49.6300
cu-in
1.1800
LB
3.7800
IN
RACO
Steel Outlet Boxes
Cable Entry Size
Knockout
Number of Knockouts
24
Number of Outlets
2
Shape
Rectangle
Type
Non-Gangable
Capacity
cu-in
45
Color
Silver
Dimensions
3-3/4 in H x 3-25/32 in W x 3-1/2 in D
Finish
PRE-GALVANIZED
Knockout Size
1/2 in, 3/4 in
Material
Steel
Mounting Type
Threaded
Number of Gangs
2
