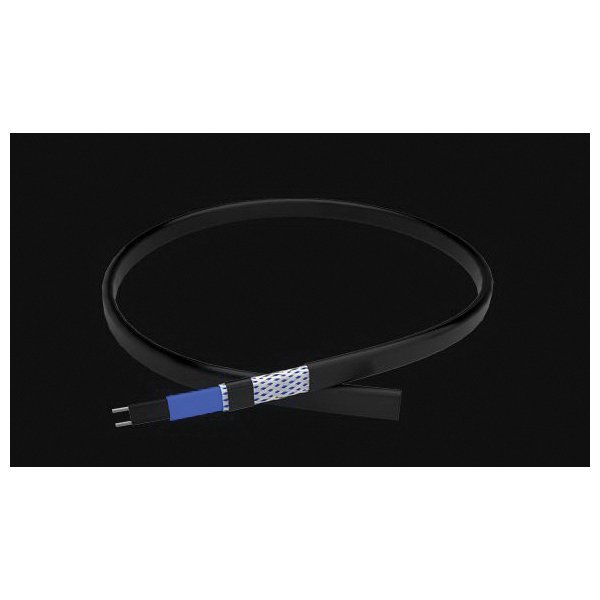

640509-000 - WinterGard Wet Self-Reg Heating Cable TruckPak, 120 V, 100 ft
Description
Specifications
3lb
4.61mm
9.61mm
10.51mm
H612-100
For Water Pipes in Wet Areas and Refrigeration Condensate Drains, Use in Non-Hazardous Areas, Building and Construction
Raychem
USA
US
Catalog
Specification Sheet
00715629000170
Heating Cable, Two H900 Hardwired Power/End Seal Kits, One H910 Splice/Tee Kit and One H903 Application Tape
CABLE HTG SELF-REGULATING 120VAC 16AWG
100 ft true pack cable length
Can heat pipes up to 6 in diameter
Tinned copper braid material
Modified polyolefin jacket
14 AWG braid wire gauge equivalent
0.215 in nominal cable thickness
Cable can be overlapped without burning itself out
Cable jacket is waterproof making it ideal for use in wet environments
Will not overheat roofing materials or plastic gutters
Energy efficient and safe-self regulating cable, advanced energy saving controls, no overheating possible
Energy efficient and safe - self regulating cable, advanced energy saving controls, no overheating possible
H612100 Wintergard Wet Self-Regulating Heating Cable, (2 None) Conductors, 120 V AC ; Chemelex ; RAYCHEM ; H612100 ; H612-100 ; 715629000170 ; Self-Regulating Pipe Cables
Chemelex
4.6100
IN
10.5100
IN
1
3.0000
LB
9.6100
IN
H612100 ; 640509000 ; 715629000170 ; 71562900017 ; 00715629000170
Raychem
PANEL & CABLE HEATERS
Color
Black
Temperature Rating
deg F
150
Voltage Rating
V AC
120
Wattage
W
6
Conductor Material
None
Nickel-Plated Copper
Conductor Size
16 AWG
Core
Self-Regulating Conductive
Insulation Material
None
Modified Polyolefin
Jacket Material
Polyolefin
NEMA Color
None
Black
Number of Conductors
None
2
Series
Wintergard Wet
