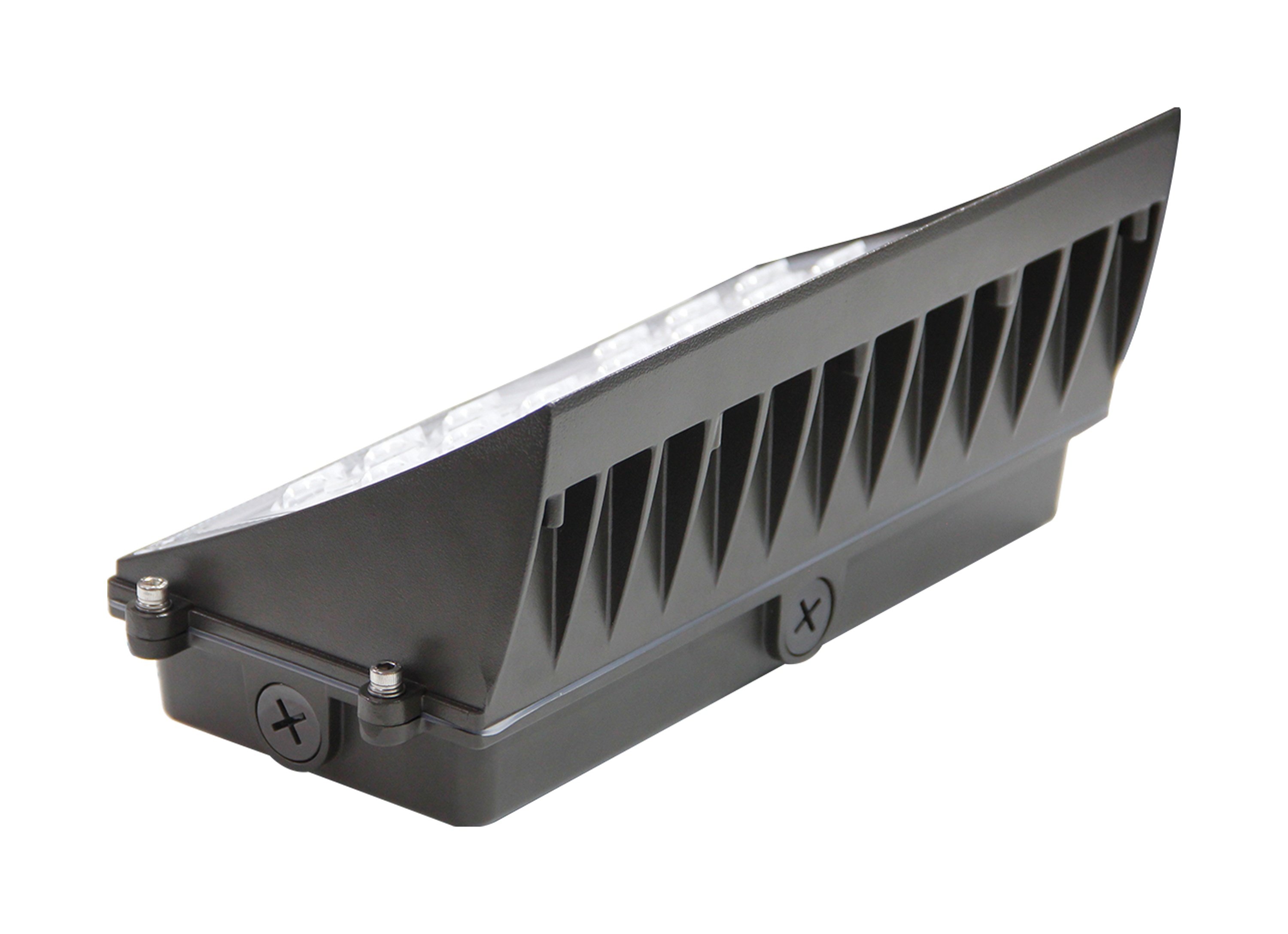

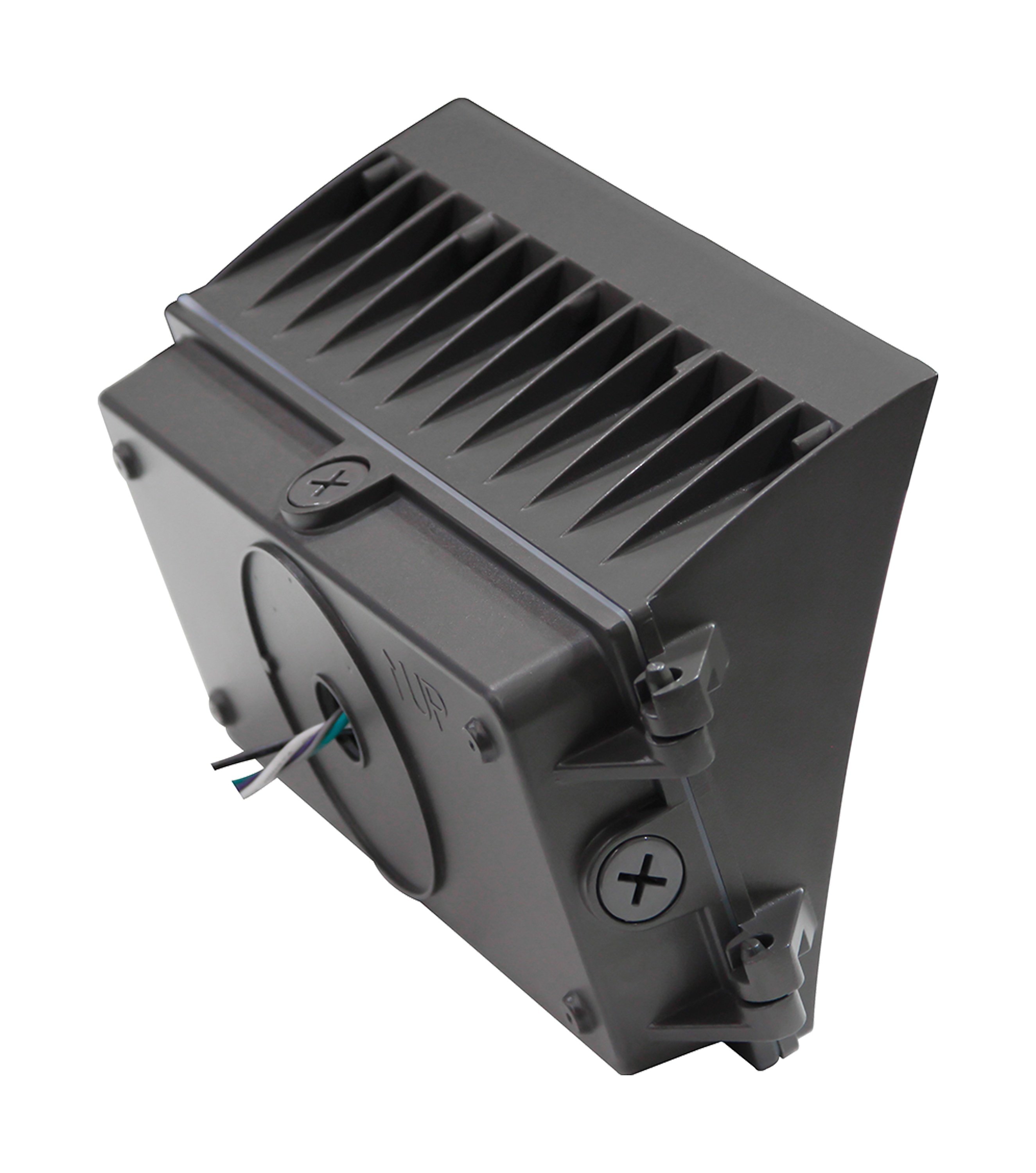

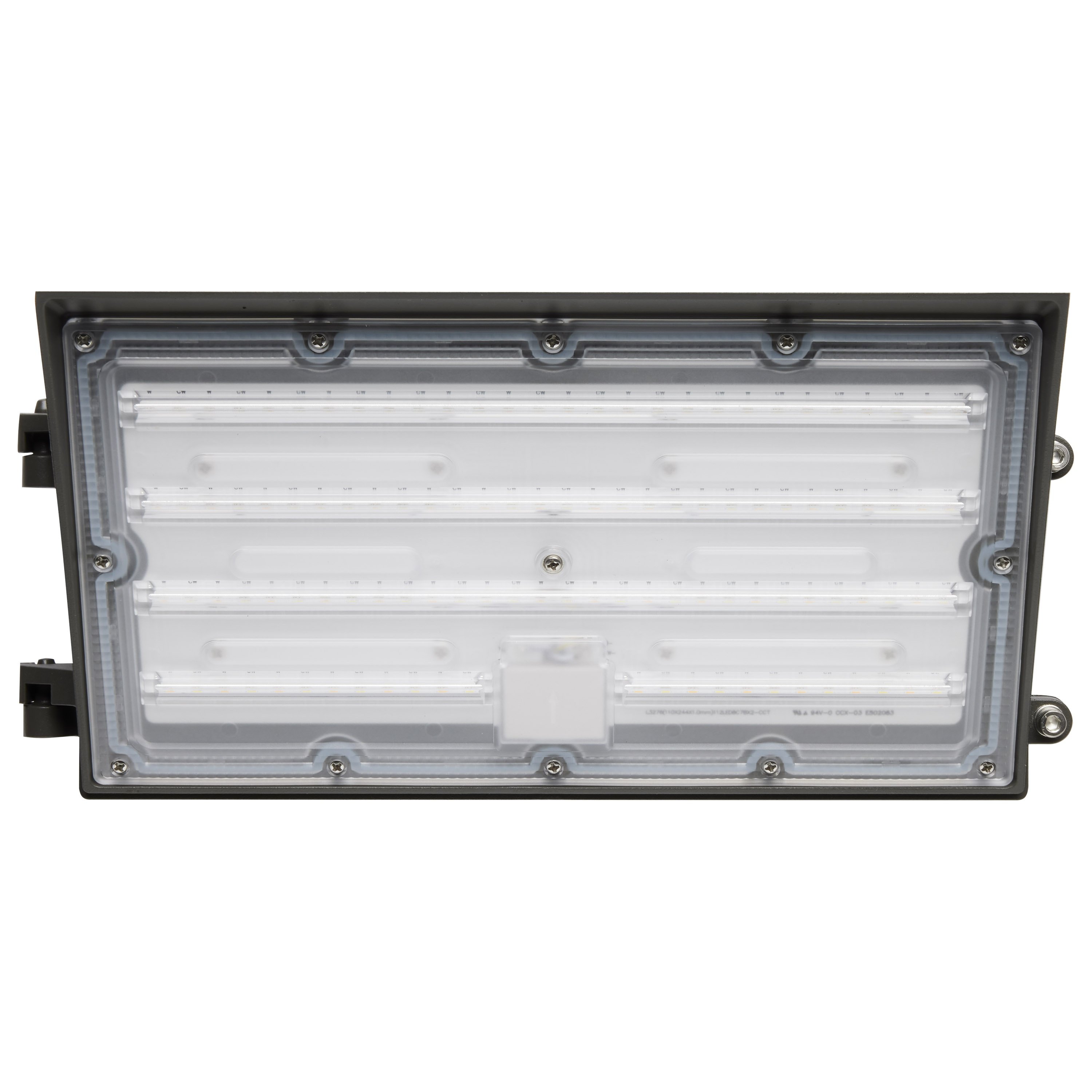

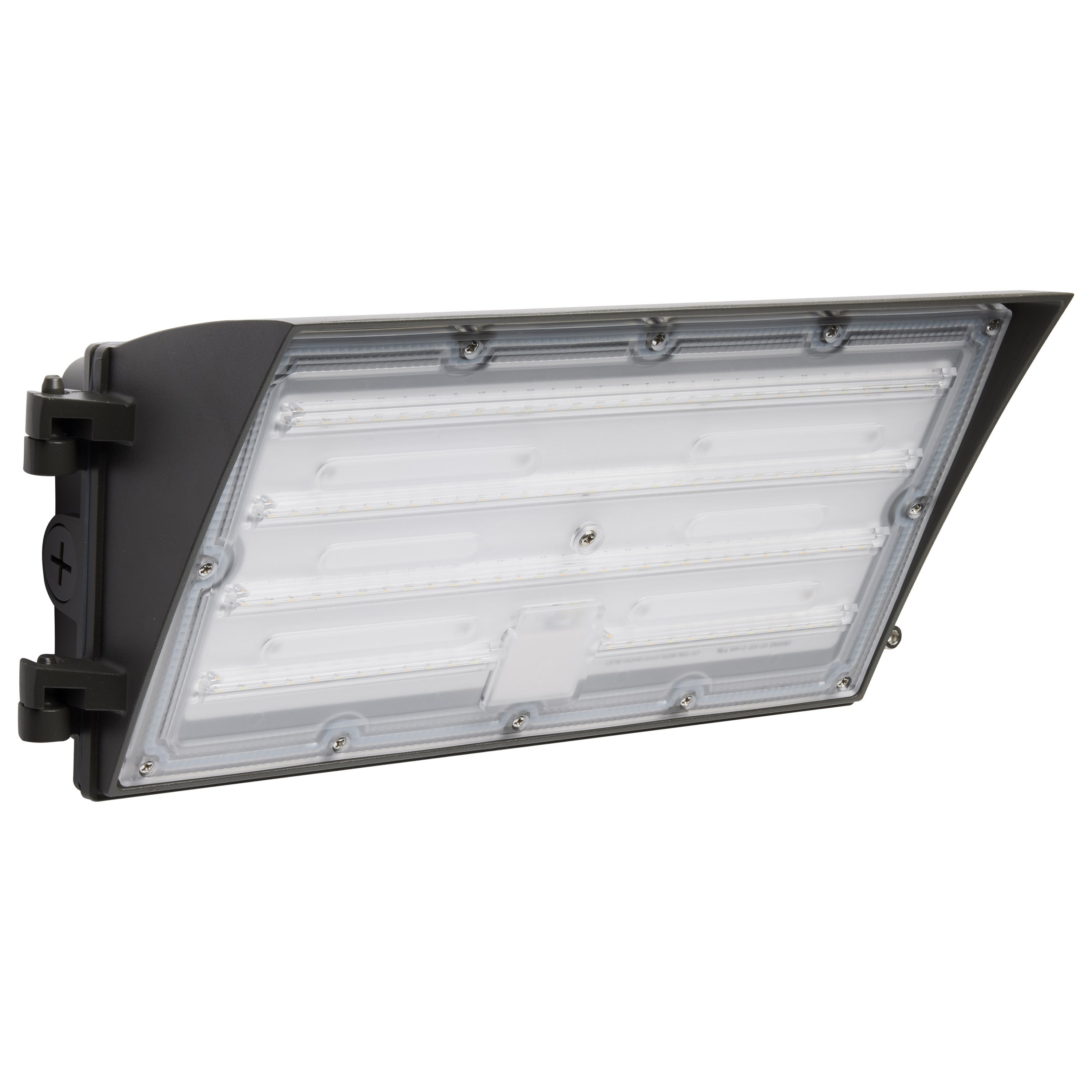

65-675 - 60 Watt Semi Cutoff LED Wall Pack, CCT Selectable, 7200-7500 Lumens, DLC Premium
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Specifications
Weight
4.96
Height
9.25
Width
6.1
Length
13.98
AD All Features
Directs light out, not up
AD Application
Industrial, Outdoor and Security Applications
AD Brand (Description)
Satco
AD Country
USA
AD Country Of Origin
VN
AD Invoice Description
WALLPACK LED LED 60W 120 TO 277VAC BRZ
AD Item Features 01
Directs light out, not up
AD Item Features 02
0-10V dimming
AD Item Features 03
Maintenance Free
AD Item Features 04
Operating temperature - -40C (-40F) to a maximum of 40C (104F)
AD Manufacturer (Description)
SATCO PRODUCTS
AD Package Height
9.2500
AD Package Height UOM
IN
AD Package Length
13.9800
AD Package Length UOM
IN
AD Package Quantity
1
AD Package Volume
794.8800
AD Package Volume UOM
cu-in
AD Package Weight
4.9600
AD Package Weight UOM
LB
AD Package Width
6.1000
AD Package Width UOM
IN
Brand
Satco
Category
LED Wallpacks
Spec 1 Attribute
Average Life
Spec 1 Attribute UOM
HR
Spec 1 Attribute Value
50000
Spec 10 Attribute
Lens Type
Spec 10 Attribute Value
Impact-resistant polycarbonate
Spec 11 Attribute
Light Color
Spec 11 Attribute Value
Warm to Cool White
Spec 12 Attribute
Lumens
Spec 12 Attribute UOM
Lumens
Spec 12 Attribute Value
7200/7500
Spec 13 Attribute
Mounting Type
Spec 13 Attribute Value
Wall
Spec 14 Attribute
Type
Spec 14 Attribute Value
Semi Cut-Off
Spec 15 Attribute
Voltage Rating
Spec 15 Attribute UOM
V AC
Spec 15 Attribute Value
120 To 277
Spec 2 Attribute
Color Rendering Index (CRI)
Spec 2 Attribute Value
80
Spec 3 Attribute
Color Temperature
Spec 3 Attribute UOM
K
Spec 3 Attribute Value
3000/4000/5000
Spec 4 Attribute
Dimensions
Spec 4 Attribute Value
5.26 in L x 12.6 in W x 5.83 in H
Spec 5 Attribute
Enclosure Type
Spec 5 Attribute Value
IP65
Spec 6 Attribute
Fixture Wattage
Spec 6 Attribute UOM
W
Spec 6 Attribute Value
60
Spec 7 Attribute
Housing Finish
Spec 7 Attribute Value
Bronze
Spec 8 Attribute
Housing Material
Spec 8 Attribute Value
Die Cast Aluminum
Spec 9 Attribute
Lamp Type
Spec 9 Attribute Value
Led
