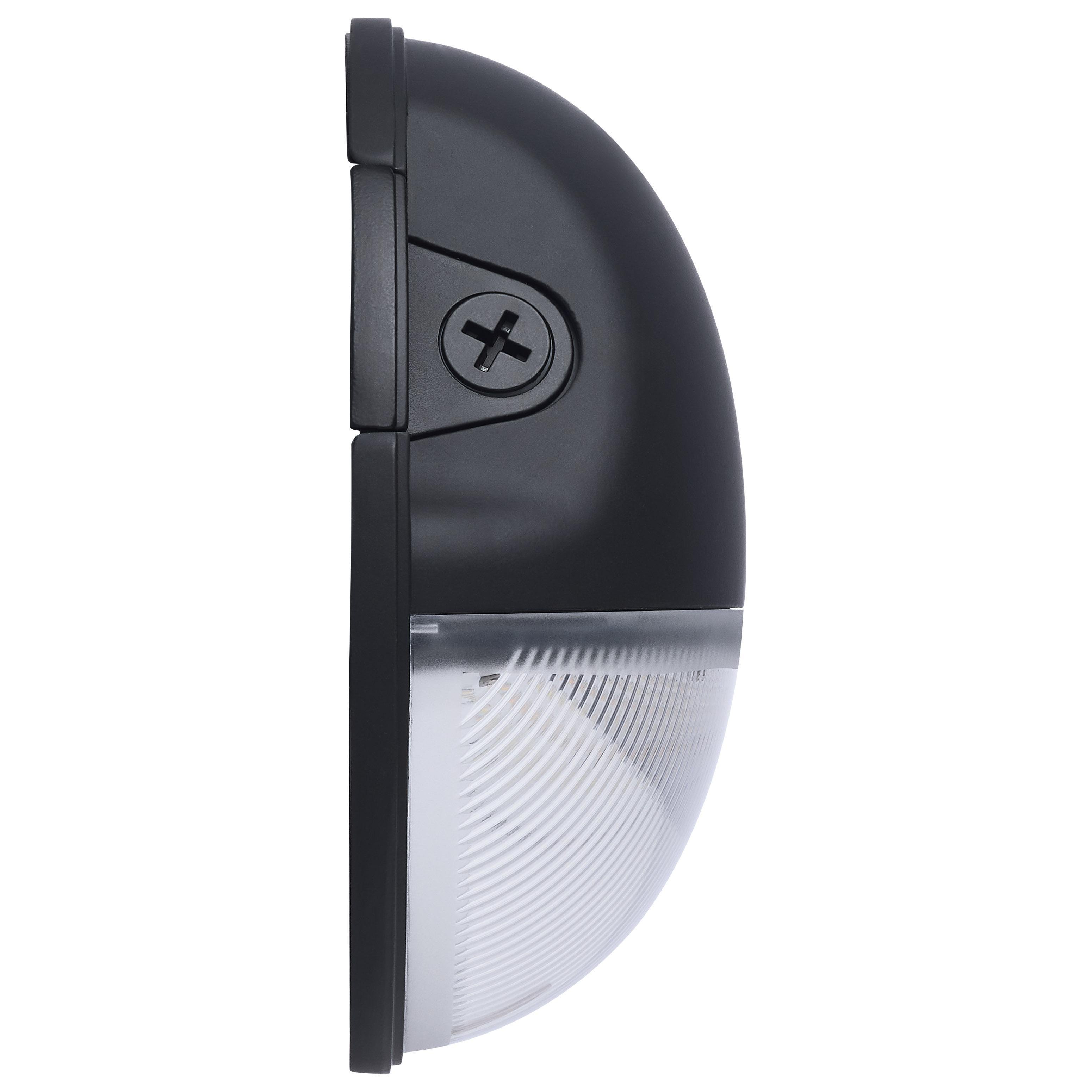

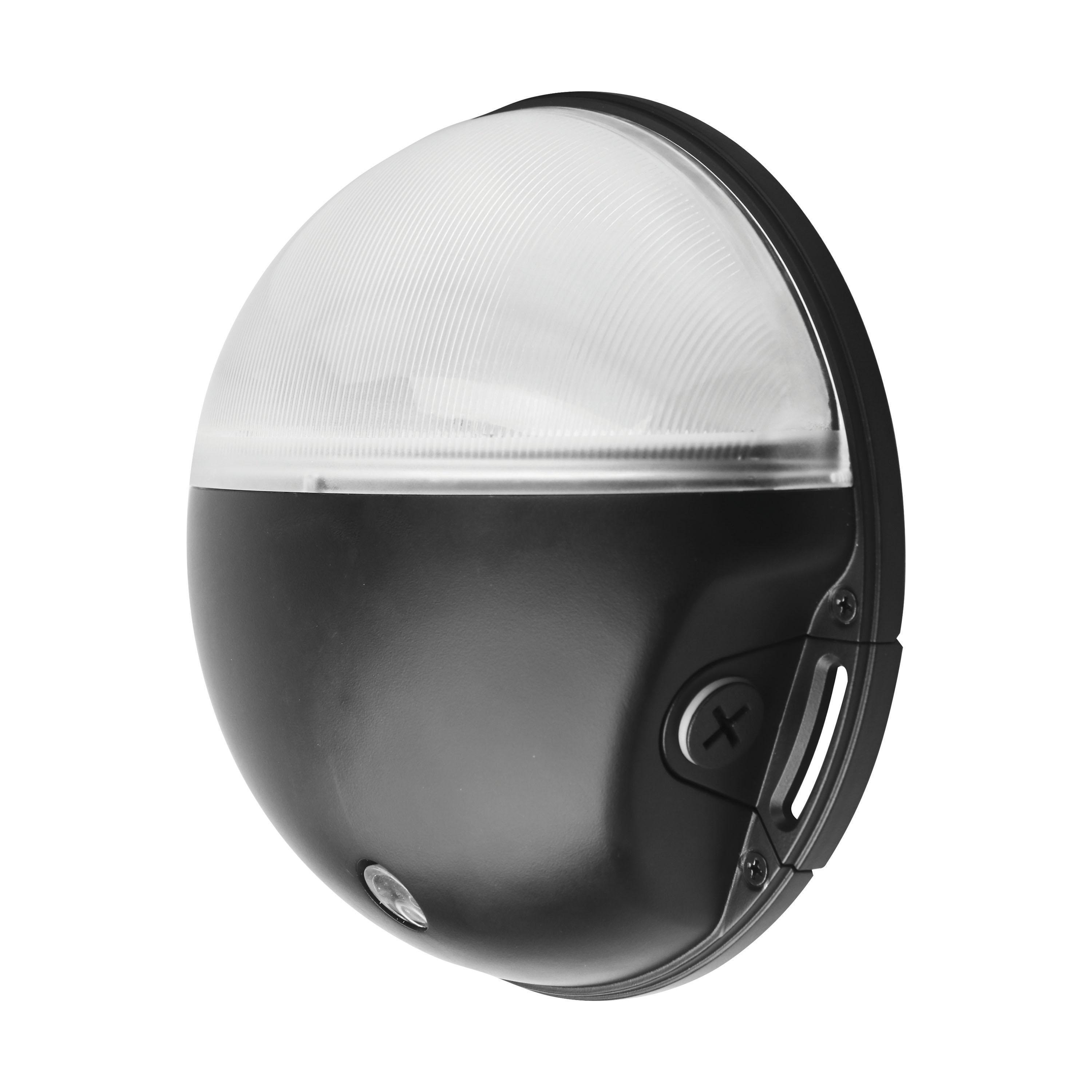

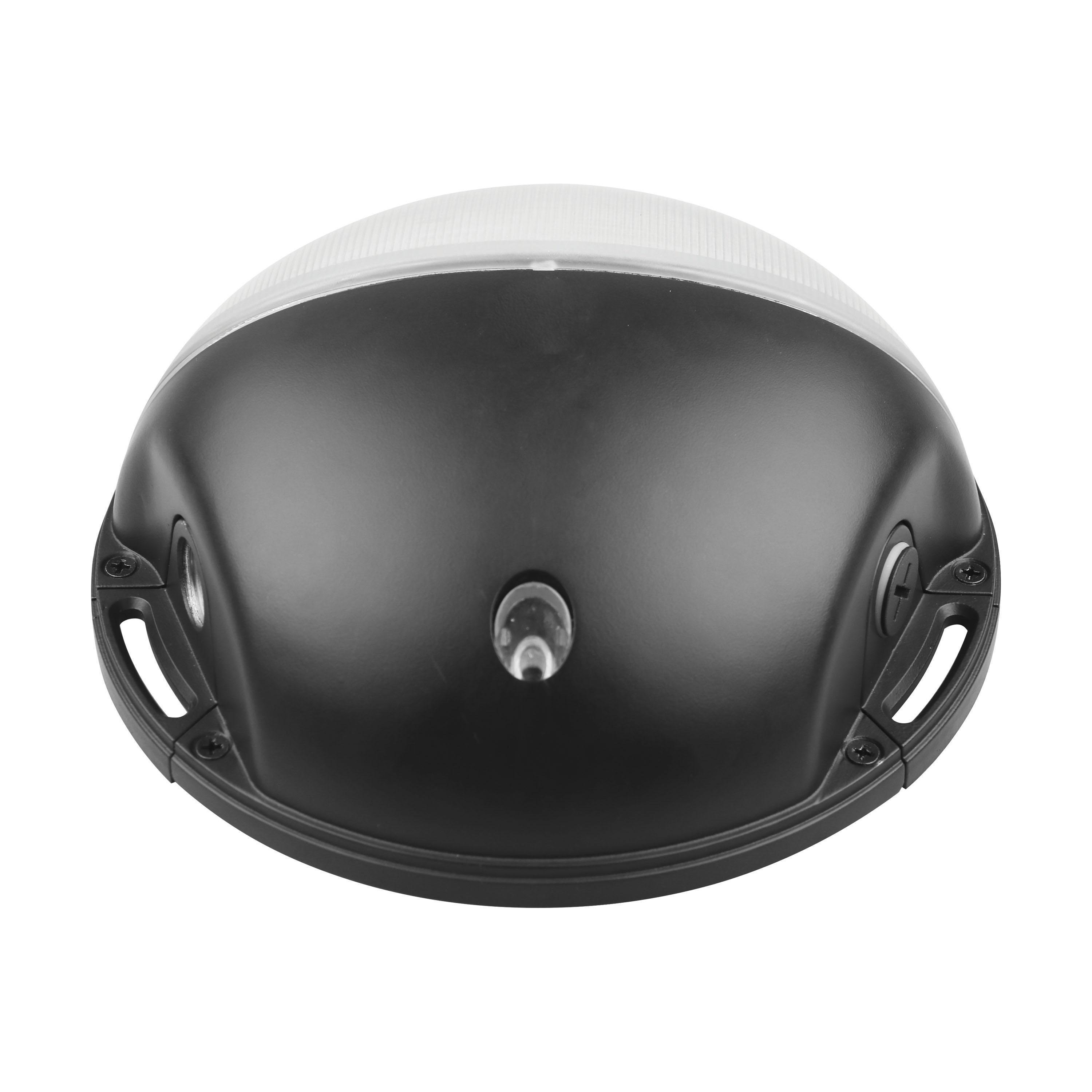

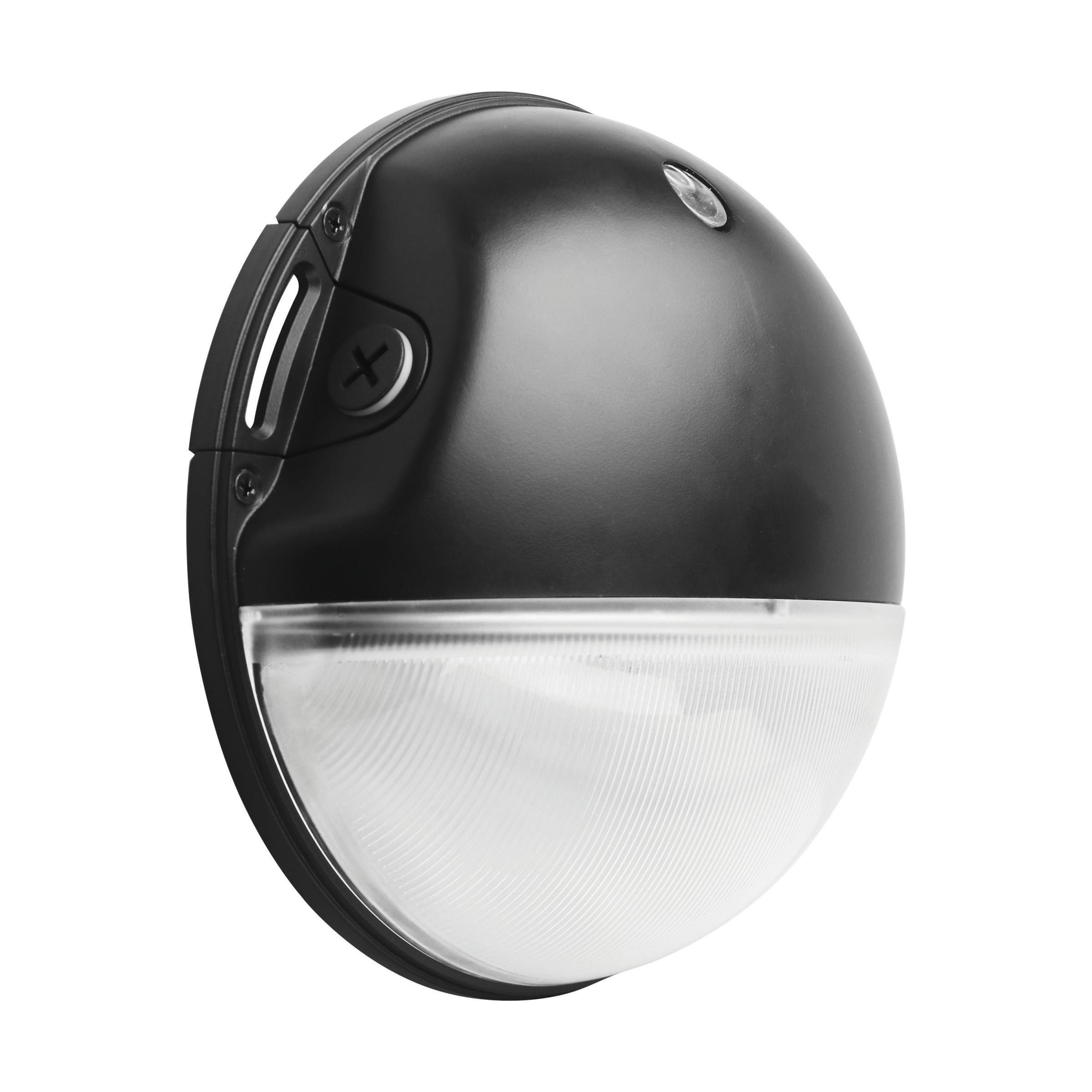

65-750 - LED Small Round Wall Pack, 20W, CCT Selectable, Bypassable Photocell, 120-277 Volt, Black Finish
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Specifications
Weight
2.64lb
Height
3.62mm
Width
8.94mm
Length
8.94mm
AD All Features
Integrated Bypassable Photocell
AD Application
Outdoor Application
AD Brand (Description)
Satco
AD Country
USA
AD Country Of Origin
VN
AD Invoice Description
PACK WALL LED 20W 120 TO 277V BK 50000HR
AD Item Features 01
Integrated Bypassable Photocell
AD Item Features 02
CCT Selectable
AD Item Features 03
UV stabilized powder coated finish
AD Item Features 04
2.5KV Surge Protection
AD Manufacturer (Description)
SATCO PRODUCTS
AD Package Height
3.6200
AD Package Height UOM
IN
AD Package Length
8.9400
AD Package Length UOM
IN
AD Package Quantity
1
AD Package Volume
293.7600
AD Package Volume UOM
cu-in
AD Package Weight
2.6400
AD Package Weight UOM
LB
AD Package Width
8.9400
AD Package Width UOM
IN
Brand
Satco
Category
LED Wallpacks
Spec 1 Attribute
Average Life
Spec 1 Attribute UOM
HR
Spec 1 Attribute Value
50000
Spec 10 Attribute
Lamp Type
Spec 10 Attribute Value
Led
Spec 11 Attribute
Light Color
Spec 11 Attribute Value
Warm to Cool White
Spec 12 Attribute
Lighting Technology
Spec 12 Attribute Value
Led
Spec 13 Attribute
Lumens
Spec 13 Attribute UOM
Lumens
Spec 13 Attribute Value
2600 to 2800
Spec 14 Attribute
Mounting Type
Spec 14 Attribute Value
Wall
Spec 15 Attribute
Shade Type
Spec 15 Attribute Value
Polycarbonate
Spec 16 Attribute
Voltage Rating
Spec 16 Attribute UOM
V
Spec 16 Attribute Value
120 To 277
Spec 2 Attribute
Ballast Type
Spec 2 Attribute Value
0 to 10 V Dimmable
Spec 3 Attribute
Color Rendering Index (CRI)
Spec 3 Attribute Value
80
Spec 4 Attribute
Color Temperature
Spec 4 Attribute UOM
K
Spec 4 Attribute Value
3000/4000/5000
Spec 5 Attribute
Dimensions
Spec 5 Attribute Value
8.7 in H
Spec 6 Attribute
Enclosure Type
Spec 6 Attribute Value
IP65
Spec 7 Attribute
Fixture Wattage
Spec 7 Attribute UOM
W
Spec 7 Attribute Value
20
Spec 8 Attribute
Housing Finish
Spec 8 Attribute Value
Black
Spec 9 Attribute
Housing Material
Spec 9 Attribute Value
Die Cast Aluminum
