NUVO® by SATCO

65-771R3 - LED UFO Highbay Cct & Watt Adj Wattage 150W/175W/200W And Cct Selectable 3K/4K/5K Led Ufo High Bay; 120-347 Volt; Black Finish

Category LED Highbay Lighting
Picture of 65-771R3 - LED UFO Highbay Cct & Watt Adj Wattage 150W/175W/200W And Cct Selectable 3K/4K/5K Led Ufo High Bay; 120-347 Volt; Black Finish Picture of 65-771R3 - LED UFO Highbay Cct & Watt Adj Wattage 150W/175W/200W And Cct Selectable 3K/4K/5K Led Ufo High Bay; 120-347 Volt; Black Finish
Picture of 65-771R3 - LED UFO Highbay Cct & Watt Adj Wattage 150W/175W/200W And Cct Selectable 3K/4K/5K Led Ufo High Bay; 120-347 Volt; Black Finish Picture of 65-771R3 - LED UFO Highbay Cct & Watt Adj Wattage 150W/175W/200W And Cct Selectable 3K/4K/5K Led Ufo High Bay; 120-347 Volt; Black Finish
Picture of 65-771R3 - LED UFO Highbay Cct & Watt Adj Wattage 150W/175W/200W And Cct Selectable 3K/4K/5K Led Ufo High Bay; 120-347 Volt; Black Finish Picture of 65-771R3 - LED UFO Highbay Cct & Watt Adj Wattage 150W/175W/200W And Cct Selectable 3K/4K/5K Led Ufo High Bay; 120-347 Volt; Black Finish
Picture of 65-771R3 - LED UFO Highbay Cct & Watt Adj Wattage 150W/175W/200W And Cct Selectable 3K/4K/5K Led Ufo High Bay; 120-347 Volt; Black Finish Picture of 65-771R3 - LED UFO Highbay Cct & Watt Adj Wattage 150W/175W/200W And Cct Selectable 3K/4K/5K Led Ufo High Bay; 120-347 Volt; Black Finish
Picture of 65-771R3 - LED UFO Highbay Cct & Watt Adj Wattage 150W/175W/200W And Cct Selectable 3K/4K/5K Led Ufo High Bay; 120-347 Volt; Black Finish Picture of 65-771R3 - LED UFO Highbay Cct & Watt Adj Wattage 150W/175W/200W And Cct Selectable 3K/4K/5K Led Ufo High Bay; 120-347 Volt; Black Finish
NUVO® by SATCO

65-771R3 - LED UFO Highbay Cct & Watt Adj Wattage 150W/175W/200W And Cct Selectable 3K/4K/5K Led Ufo High Bay; 120-347 Volt; Black Finish

Item Code: 1220850
Category LED Highbay Lighting
Manufacturer SATCO PRODUCTS
Manufacturer Ref 65-771R3

Document
Document
Call for Availability
Add to Favorites
Compare

Description

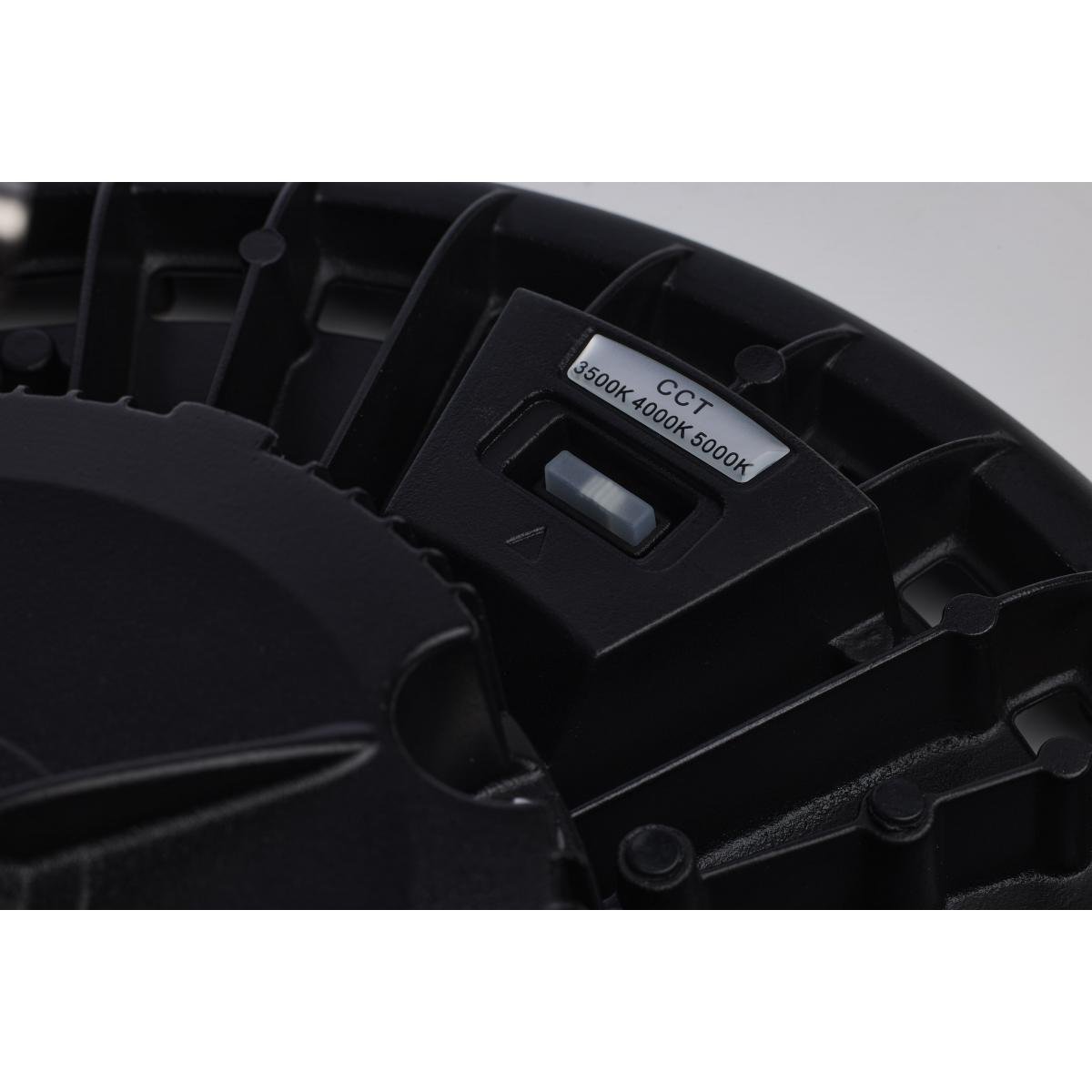

SATCO|NUVO’s Round High Bay Fixture is an energy efficient and maintenance-free solution to traditional HID high bay fixtures. Field selectable, these luminaires feature ColorQuick™ and PowerQuick™ technology allowing a choice of three wattages and three CCT options at the time of installation. With a durable die-cast aluminum housing, IK08 impact rated polycarbonate lens, 6kV surge protection, IP65 rating and 0-10V dimming capabilities, our luminaries are built to endure the rigorous conditions found in most commercial environments. All models are DLC Premium listed, have a 50,000 hours rated life and are backed by a 5 year warranty.

Specifications

Weight

7.99

Height

4.92

Width

14.17

Length

14.17

AD All Features

CCT and Wattage Selectable

AD Brand (Description)

NUVO® by SATCO

AD Country

USA

AD Country Of Origin

VN

AD Gtin

10045923651905

AD Includes

Locking Hanging Hook, 6 Foot Whip and Integrated Bulb

AD Invoice Description

INDOOR H BAY FXTR INTEGRATED LED

AD Item Features 01

CCT and Wattage Selectable

AD Item Features 02

Integrated Sensor Port

AD Item Features 03

EM Battery Backup Capable

AD Item Features 04

6 Foot Supply and Low Voltage Whips

AD Item Features 05

6kV Surge Protection

AD Manufacturer (Description)

SATCO PRODUCTS

AD Package Height

4.9200

AD Package Height UOM

IN

AD Package Length

14.1700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

7.9900

AD Package Weight UOM

LB

AD Package Width

14.1700

AD Package Width UOM

IN

Brand

Satco

Category

LED HIGHBAY LIGHTING

Spec 1 Attribute

Ballast Type

Spec 1 Attribute Value

0 to 10 V Dimmable

Spec 10 Attribute

Lamp Wattage

Spec 10 Attribute UOM

W

Spec 10 Attribute Value

150, 175, 200

Spec 11 Attribute

Lens Type

Spec 11 Attribute Value

Polycarbonate

Spec 12 Attribute

Lumens

Spec 12 Attribute UOM

Lumens

Spec 12 Attribute Value

22200 to 28800

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V

Spec 13 Attribute Value

120 to 347

Spec 2 Attribute

Color Rendering Index (CRI)

Spec 2 Attribute Value

80

Spec 3 Attribute

Color Temperature

Spec 3 Attribute UOM

K

Spec 3 Attribute Value

3000, 4000, 5000

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

7.3 in H x 13.4 in W

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

IP65

Spec 6 Attribute

Fixture Wattage

Spec 6 Attribute UOM

W

Spec 6 Attribute Value

150, 175, 200

Spec 7 Attribute

Housing Finish

Spec 7 Attribute Value

Black

Spec 8 Attribute

Housing Material

Spec 8 Attribute Value

Die-Cast Aluminum

Spec 9 Attribute

Lamp Base Type

Spec 9 Attribute Value

Integrated
